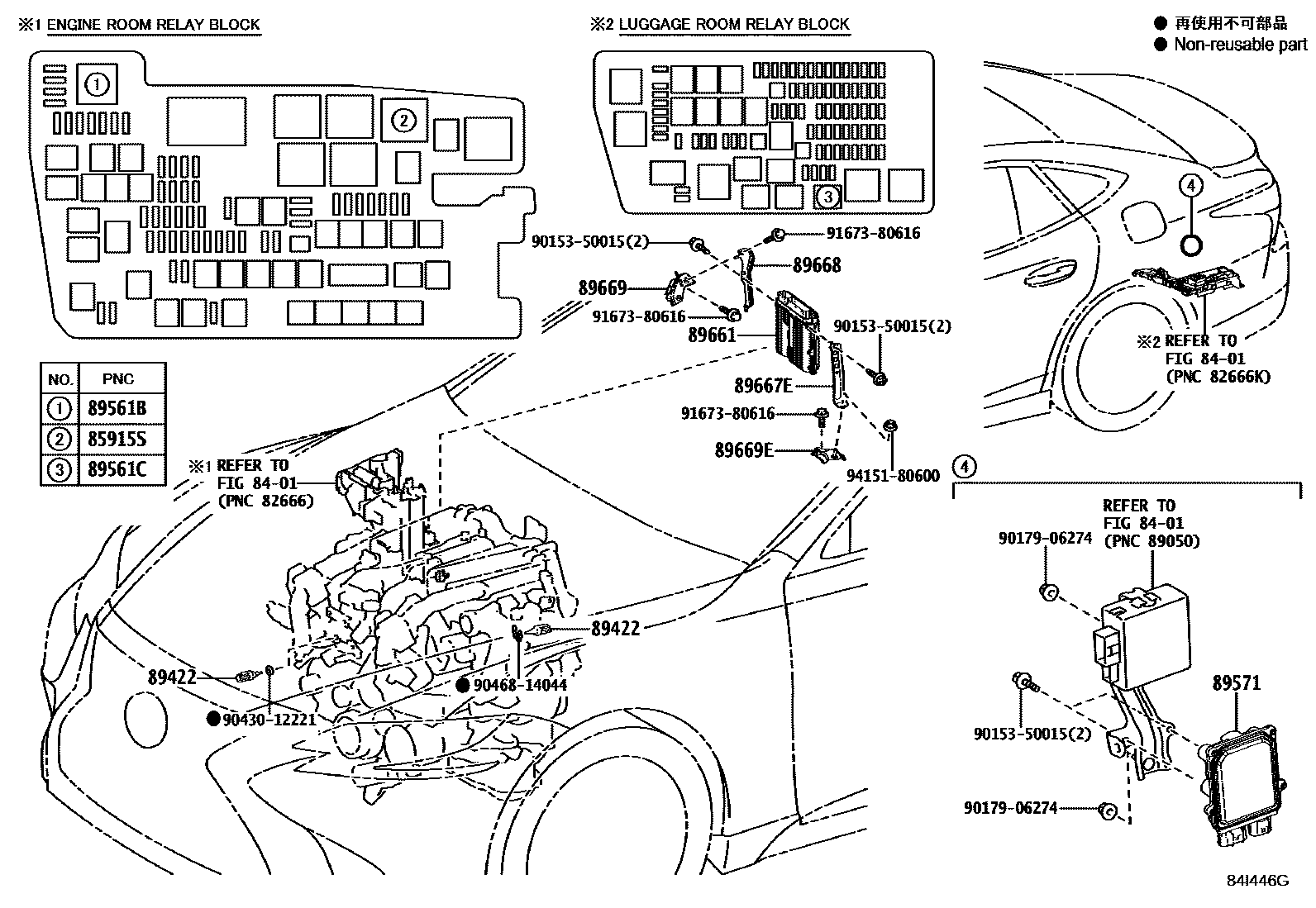

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

8401

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02025iGSF50,VXFA55201710-202410

main90987-02027iGVF5#201710-202509

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iVXFA55201712-202410

main89422-47010iGVF5#201710-202509

89561BRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

main90987-02025iVXFA55201712-202410

main90987-02027iGVF5#201710-202509

89561CRELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

main90987-02027iGVF5#201710-202509

89571COMPUTER, FUEL PUMP CONTROL

main89571-58010iGSF50,GVF5#,VXFA55201710-202005

main89571-58020iGSF50,VXFA55202005-202509

89661COMPUTER, ENGINE CONTROL

main89661-50K90iVXFA55201909-202001

DENSO

sub89661-50K91

main89661-50K91iVXFA55202002-202010

DENSO

main89661-50Q10iGVF50201710-201809

DENSO

main89661-50Q80iGSF50201710-201809

DENSO

main89661-50T20iVXFA55201712-201809

DENSO

main89661-50T80iGVF55201710-201809

DENSO

main89661-50U30iGVF50201809-201910

DENSO

sub89661-50U31

main89661-50U31iGVF50201911-202010

DENSO

main89661-50U40iGVF55201809-201912

DENSO

sub89661-50U41

main89661-50U41iGVF55202001-202010

DENSO

main89661-50U60iGSF50201809-202010

DENSO

main89661-50V50iVXFA55201809-201903

DENSO

sub89661-50V51

main89661-50V51iVXFA55201904-201905

DENSO

sub89661-50V52

main89661-50V52iVXFA55201906-201909

DENSO

main89661-50W20iGSF50202011-202310

DENSO

main89661-50W40iVXFA55202011-202111

DENSO

main89661-50X70iGVF50202011-202310

DENSO

main89661-50X90iGVF55202011-202310

DENSO

main89661-50Y90iVXFA55202111-202210

DENSO

main89661-50Z90iVXFA55202210-202310

DENSO

main89661-5A050iGSF50202310-202410

DENSO

main89661-5A070iVXFA55202310-202410

DENSO

main89661-5A140iGVF50202310-202509

DENSO

main89661-5A160iGVF55202310-202509

DENSO

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-11010iGSF50201710-202410

main89667-11030iGVF5#201710-202509

main89667-50090iVXFA55201712-202410

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-11010iGSF50201710-202410

main89668-11030iGVF5#201710-202509

main89668-50080iVXFA55201712-202410

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-11010iGSF50,VXFA55201710-202410

main89669-11030iGVF5#201710-202509

89669EBRACKET, ENGINE CONTROL COMPUTER, NO.4

main89669-11040iGSF50,VXFA55201710-202410

9015350015

main90153-50015

9017906274

main90179-06274

9043012221

main90430-12221

9046814044

main90468-14044

9167380616

main91673-80616

9415180600

main94151-80600

17 parts on this diagram · 3 diagrams in section
