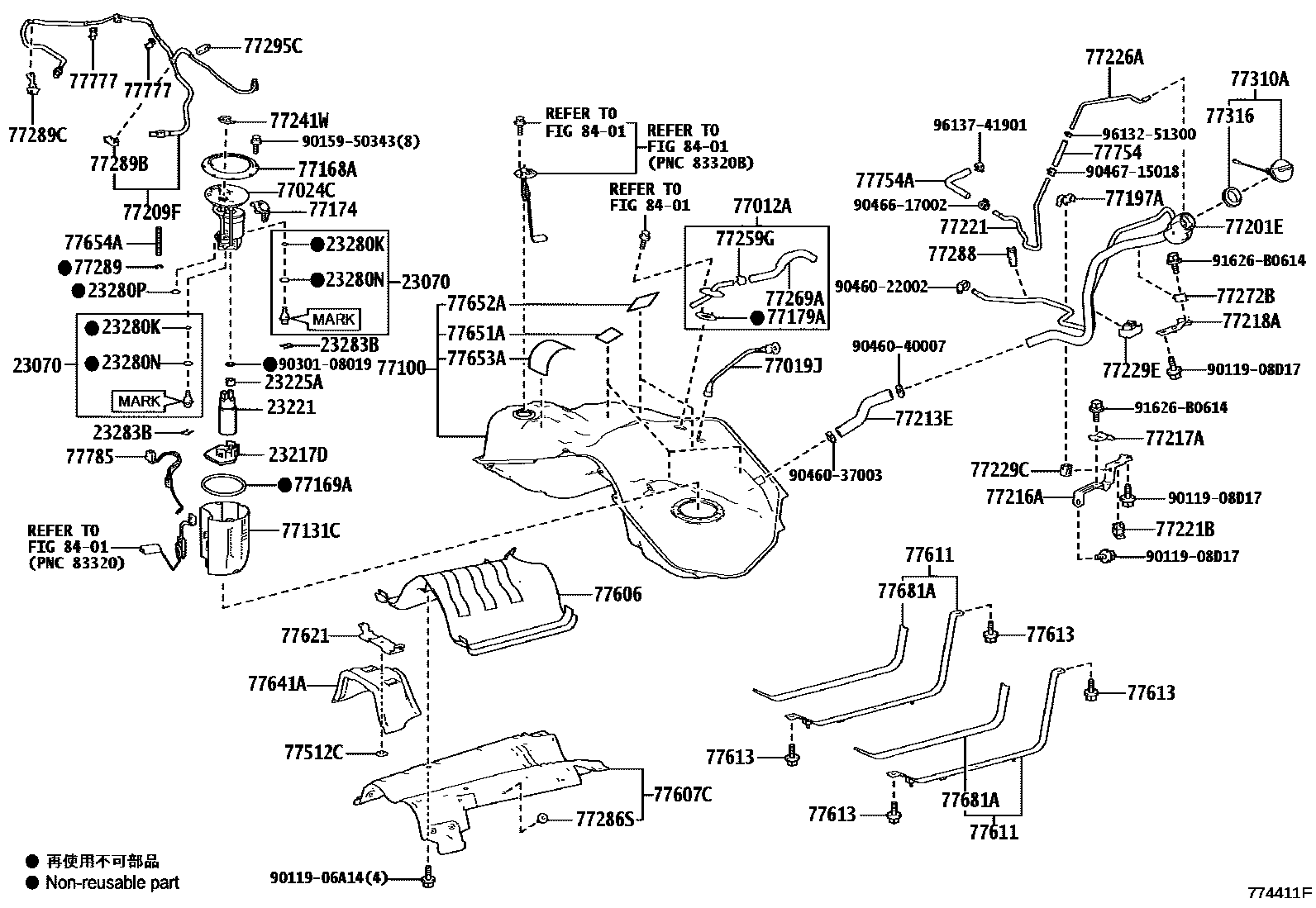

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1CHARCOAL CANISTER 0010 1CHARCOAL CANISTER 0011 1FUEL LID OPNER

23070VALVE ASSY, FUEL MAIN

main23070-31030iV35AFTS,8GRFKS..GSF50,VXFA55201710-202509

MARK 23070-31030

main23070-36010iV35AFTS,8GR#..GSF50,GVF5#,VXFA55201710-202509

MARK 23070-36010

23217DFILTER, FUEL PUMP

main23217-31080iV35AFTS,8GR#..GSF50,GVF5#,VXFA55201710-202509

23221PUMP, FUEL

main23221-31130iV35AFTS,8GR#..GSF50,GVF5#,VXFA55201710-202509

23225ASPACER, FUEL PUMP

main23225-31010iV35AFTS,8GRFKS..GSF50,VXFA55201710-202509

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013iV35AFTS,8GR#..GSF50,GVF5#,VXFA55201710-202509

23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2

main90301-15024iV35AFTS,8GR#..GSF50,GVF5#,VXFA55201710-202509

23280PRING, O(FOR FUEL PRESSURE REGULATOR), NO.3

main90301-11025iV35AFTS,8GR#..GSF50,GVF5#,VXFA55201710-202509

23283BHOLDER, FUEL PRESSURE REGULATOR

main23283-36010iV35AFTS,8GR#..GSF50,GVF5#,VXFA55201710-202509

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-11040iGVF5#,VXFA55201710-202410

main77012-11050iGVF5#201809-202509

77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER

main77019-11010iGVF5#,VXFA55201809-202509

main77019-50030iGSF50,VXFA55201710-202410

77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER

main77024-11020iGSF50,GVF5#,VXFA55201710-202509

77100TANK ASSY, FUEL

main77001-11110iGSF50,GVF5#,VXFA55201710-202509

77131CSUB-TANK, FUEL, NO.1

main77131-11010iGSF50,GVF5#,VXFA55201710-202509

77168APLATE, FUEL TANK VENT TUBE SET

main77168-52020iGSF50,GVF5#,VXFA55201710-202509

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iGVF5#,VXFA55201710-202410

main77169-53010iGVF5#201809-202509

77174SUPPORT, FUEL SUCTION, NO.1

main77174-48040iGSF50,VXFA55201710-202509

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iGSF50,GVF5#,VXFA55201710-202509

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-52010iGSF50,GVF5#,VXFA55201710-202509

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-50230iGSF50,GVF5#,VXFA55201710-202509

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-11050iGVF5#201710-202410

main77209-11070iGVF5#201809-202509

main77209-50050iVXFA55201712-202410

main77209-50060iVXFA55201809-202010

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-11070iGSF50201710-202410

main77213-11090iGVF5#,VXFA55201809-202509

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-11020iGSF50,GVF5#,VXFA55201710-202509

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-11060iGSF50,GVF5#,VXFA55201710-202509

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-50030iGSF50,GVF5#,VXFA55201710-202509

77221TUBE, FUEL TANK BREATHER, NO.1

main77227-50040iGVF5#201710-202509

77221BCLAMP, BREATHR TUBE

main77229-11110iGSF50,GVF5#,VXFA55201710-202509

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-50080iGSF50,GVF5#,VXFA55201710-202509

77229CCLAMP, BREATHER TUBE

main77229-11080iGSF50,GVF5#,VXFA55201710-202509

77229ECLAMP, BREATHER TUBE

main77229-11120iGSF50,GVF5#,VXFA55201710-202509

77241WCLIP, TUBE JOINT

main77241-33011iGVF5#201710-202509

77259GCLIP, FUEL HOSE

main90959-04001iGSF50,GVF5#,VXFA55201710-202509

77269AHOSE, FUEL TANK BREATHER

main77269-11010iGVF5#,VXFA55201710-202410

main77269-11020iGVF5#201809-202509

77272BSUPPORT, BREATHER TUBE, NO.1

main77272-11040iGVF5#201710-202509

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iGSF50,GVF5#,VXFA55201710-202509

77288CLAMP, BREATHER HOSE

main77229-50080iGSF50,VXFA55201710-202509

77289HOLDER, FUEL TANK PIPE SETTING

main77289-52090iGVF5#201710-202509

77289BCLAMP, FUEL TUBE, NO.3

main77289-11030iGSF50,GVF5#201710-202509

77289CCLAMP, FUEL TUBE, NO.4

main77289-11040iGVF5#201710-202509

77295CGROMMET, FUEL TUBE

main77295-11010iGSF50,VXFA55201803-202509

main77295-35260iGSF50,GVF5#,VXFA55201710-201802

77310ACAP ASSY, FUEL TANK

main77300-12020iGVF5#,VXFA55201710-202410

main77300-48020iGVF5#201809-202509

77316GASKET, FUEL TANK CAP

main77316-52040iGVF5#,VXFA55201710-202410

main77316-75020iGVF5#,VXFA55201809-202509

77512CBRACKET, FUEL TANK

main77512-35140iGSF50,GVF5#,VXFA55201710-202509

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-11020iGSF50,GVF5#,VXFA55201710-202509

77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2

main77607-11010iGSF50,GVF5#,VXFA55201710-202509

77611BAND, FUEL TANK

main77601-11040iGSF50,GVF5#,VXFA55201710-202509

77613BOLT, FUEL TANK BAND SET

main90119-10A05iGSF50,GVF5#,VXFA55201710-202509

77621BRACKET, FUEL TANK PROTECTOR

main77621-50040iGSF50,GVF5#,VXFA55201710-202509

77641APROTECTOR, FUEL TANK, NO.1

main77641-50040iGSF50,GVF5#,VXFA55201710-202509

77651ACUSHION, FUEL TANK, NO.1

main77651-20090iGSF50,GVF5#,VXFA55201710-202509

77652ACUSHION, FUEL TANK, NO.2

main77651-36130iGSF50,GVF5#,VXFA55201710-202509

77653ACUSHION, FUEL TANK, NO.3

main77653-35050iGSF50,GVF5#,VXFA55201710-202509

77654ACUSHION, FUEL TANK, NO.4

main77652-22090iGSF50,GVF5#,VXFA55201710-202509

77681ASEAT, FUEL TANK BAND

main77681-21020iGSF50,GVF5#,VXFA55201710-202509

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main77754-11050iGSF50,GVF5#,VXFA55201710-202509

L=80

77754AHOSE, CHARCOAL CANISTER OUTLET, NO.2

main77754-11060iGSF50,GVF5#,VXFA55201710-202509

77777BRACKET, FUEL TUBE CLAMP

main77778-50020iGVF5#201710-202509

77785HARNESS, FUEL PUMP

main77785-30050iGSF50,VXFA55201710-202509

8401

9011906A14

main90119-06A14

9011908D17

main90119-08D17

9015950343

main90159-50343

9030108019

main90301-08019

9046022002

main90460-22002

9046037003

main90460-37003

9046040007

main90460-40007

9046617002

main90466-17002

9046715018

main90467-15018

91626B0614

main91626-B0614

9613251300

main96132-51300

9613741901

main96137-41901

70 parts on this diagram · 11 diagrams in section
