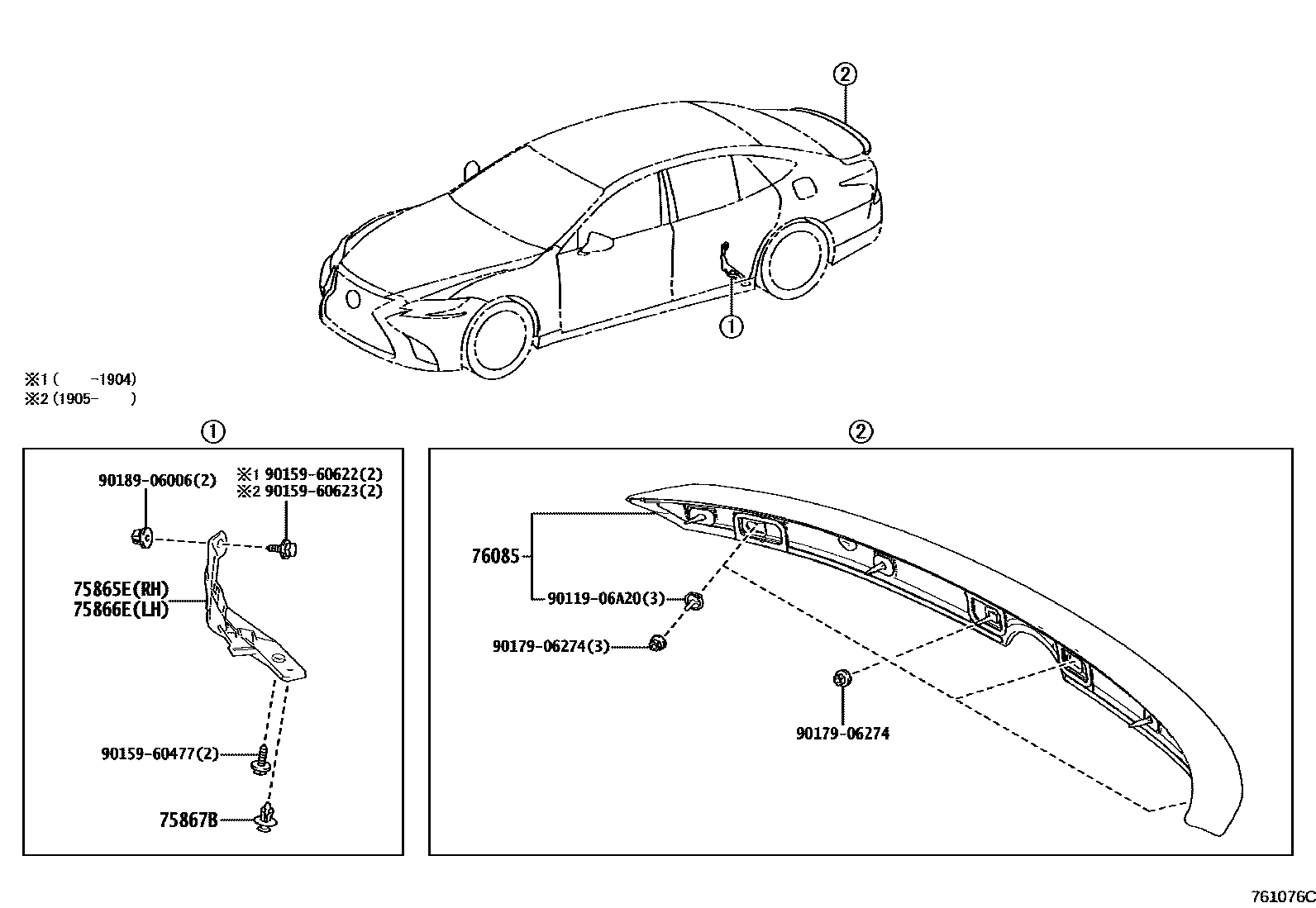

MUDGUARD & SPOILER
75865EPROTECTOR, ROCKER PANEL MOULDING, RH
75866EPROTECTOR, ROCKER PANEL MOULDING, LH
75867BCLIP, ROCKER PANEL MOULDING
76085SPOILER SUB-ASSY, REAR
WHITE NOVA GF.,083
REAR SPOILER-WITHOUT,WHITE NOVA GF.,083
REAR SPOILER-WITH,WHITE NOVA GF.,083
SONIC QUARTZ,085
REAR SPOILER-WITH,SONIC QUARTZ,085
REAR SPOILER-WITHOUT,SONIC QUARTZ,085
REAR SPOILER-WITH,SONIC SILVER,1J2
REAR SPOILER-WITHOUT,SONIC SILVER,1J2
SONIC SILVER,1J2
SONIC TITANIUM,1J7
REAR SPOILER-WITH,SONIC TITANIUM,1J7
REAR SPOILER-WITHOUT,SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
REAR SPOILER-WITHOUT,MANGANESE LUSTER,1K2
REAR SPOILER-WITH,MANGANESE LUSTER,1K2
SONIC IRIDIUM,1L2
I SILVER,1L3
REAR SPOILER-WITH,BLACK,212
BLACK,212
REAR SPOILER-WITHOUT,BLACK,212
REAR SPOILER-WITHOUT,GRAPHITE BLACK GF.,223
GRAPHITE BLACK GF.,223
REAR SPOILER-WITH,GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
REAR SPOILER-WITH,RED MC.CS.,3R1
REAR SPOILER-WITHOUT,RED MC.CS.,3R1
SONIC AGATE,3U3
REAR SPOILER-WITH,SONIC AGATE,3U3
REAR SPOILER-WITHOUT,SONIC AGATE,3U3
REAR SPOILER-WITH,SLEEK ECRU ME.,4U7
REAR SPOILER-WITHOUT,SLEEK ECRU ME.,4U7
SLEEK ECRU ME.,4U7
REAR SPOILER-WITH,AMBER CS.,4X2
REAR SPOILER-WITHOUT,AMBER CS.,4X2
AMBER CS.,4X2
HEAT BLUE CONTRAST LAYERI,8X1
REAR SPOILER-WITHOUT,HEAT BLUE CONTRAST LAYERI,8X1
REAR SPOILER-WITH,HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
REAR SPOILER-WITHOUT,DEEP BLUE MC.,8X5
REAR SPOILER-WITH,DEEP BLUE MC.,8X5
9011906A20
main90119-06A20
9015960477
main90159-60477
9015960622
main90159-60622
9015960623
main90159-60623
9017906274
main90179-06274
9018906006
main90189-06006
10 parts on this diagram · 1 diagram in section
