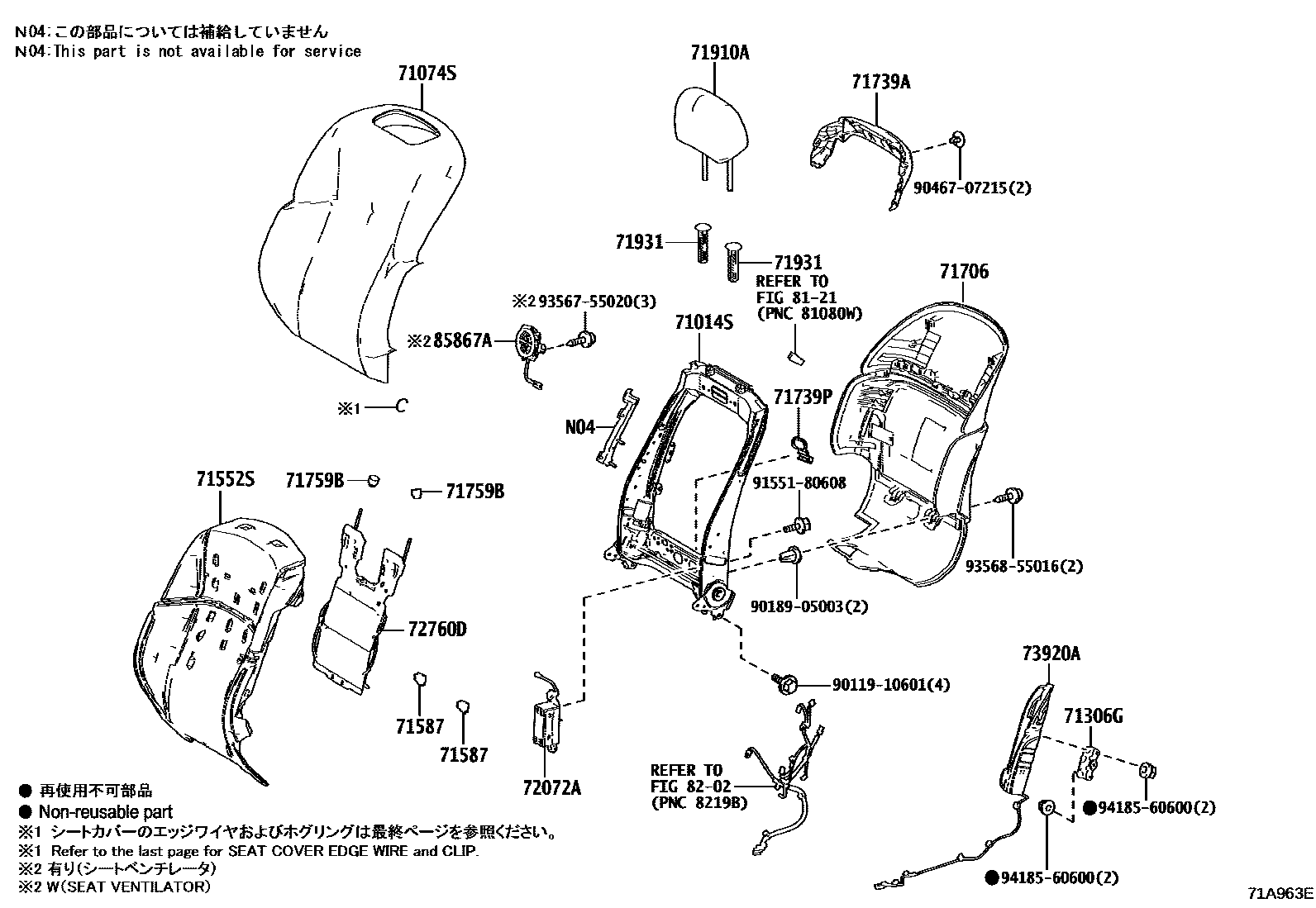

FRONT SEAT & SEAT TRACK

0001 1LH:W(MANUAL HEADREST) 0002 1LH:W(POWER HEADREST) 0003 1LH:W(POWER HEADREST & REFRESH0004 1LH:W(POWER HEADREST & REAR DI0005 1LH:F SPORT 0006 1RH:W(MANUAL HEADREST) 0007 1RH:W(POWER HEADREST) 0008 1RH:W(POWER HEADREST & REAR DI0009 1RH:W(POWER HEADREST & REFRESH0010 1RH:F SPORT 0011 1LH:W(MANUAL HEADREST) 0012 1LH:W(POWER HEADREST) 0013 1LH:W(POWER HEADREST & REFRESH0014 1LH:F SPORT 0015 1RH:W(MANUAL HEADREST) 0016 1RH:W(POWER HEADREST) 0017 1RH:W(POWER HEADREST & REFRESH0018 1RH:F SPORT 0019 1RH:W(MANUAL HEADREST) 0020 1RH:W(POWER HEADREST) 0021 1RH:W(POWER HEADREST & REFRESH0022 1RH:W(POWER HEADREST&LONGSLIDE0023 1RH:F SPORT 0024 1LH:W(MANUAL HEADREST) 0025 1LH:W(POWER HEADREST) 0026 1LH:W(POWER HEADREST & REFRESH0027 1LH:W(POWER HEADREST&LONGSLIDE0028 1LH:F SPORT 0029 1RH:W(MANUAL HEADREST) 0030 1RH:W(POWER HEADREST) 0031 1RH:W(POWER HEADREST & REFRESH0032 1RH:W(POWER HEADREST&LONGSLIDE0033 1RH:F SPORT 0034 1LH:W(MANUAL HEADREST) 0035 1LH:W(POWER HEADREST) 0036 1LH:W(POWER HEADREST & REFRESH0037 1LH:W(POWER HEADREST&LONGSLIDE0038 1LH:F SPORT 0039 1W(REFRESH SEAT) 0040 1SEAT COVER EDGE WIRE & CLIP

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-50230iGSF50,GVF5#,VXFA55201710-201910

sub71014-50231

main71014-50231iGSF50,GVF5#,VXFA55201910-202509

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-50K40-C8iGSF50,GVF5#,VXFA55201710-202010

BLACK/LT.GRAY,TRIM2#

main71074-50L50-C0iGVF5#202011-202509

BLACK,TRIM2#

71306GBRACKET SUB-ASSY, FRONT SEAT SET, LH

main71306-50050iGVF5#201710-202509

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-50450iGVF5#201710-202509

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-47010iGSF50,GVF5#,VXFA55201710-202509

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71706-50030-21iGSF50,GVF50201710-202509

BLACK/BLACK,TRIM0#,2#,3#

main71706-50030-21iGSF50202011-202410

BLACK/BLACK,TRIM2#

main71706-50060-C2iGVF55,VXFA55201710-202509

BLACK/BLACK,TRIM0#,2#,3#

71739ABEZEL, FRONT SEATBACK

main71739-50030iGSF50,GVF5#,VXFA55201710-202509

71739PBEZEL, FRONT SEATBACK, LH

main71739-50100iGSF50,GVF5#,VXFA55201710-202509

71759BHOOK, FRONT SEATBACK

main71759-50040iGSF50,GVF5#,VXFA55201710-202509

71910AHEADREST ASSY, FRONT SEAT

main71910-50D70-C4iGVF5#201710-202509

BLACK/LT.GRAY,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-C5iGVF50..RHD201710-202010

W(LOCK),BLACK,TRIM0#,2#,3#,4#,5#

main71930-47050-C5iGVF50..RHD201710-202010

W(LOCK),BLACK,TRIM0#,2#,3#

main71930-47050-C5iGVF5#202011-202509

W(LOCK),BLACK,TRIM2#

main71931-47030-C4iGVF5#202011-202509

W/O(LOCK),BLACK,TRIM2#

main71931-47030-C4iGVF50..RHD201710-202010

W/O(LOCK),BLACK,TRIM0#,2#,3#,4#,5#

main71931-47030-C4iGVF50..RHD201710-202010

W/O(LOCK),BLACK,TRIM0#,2#,3#

72072APUMP SUB-ASSY, LUMBER SUPPORT, LH

main72072-50010iGSF50,VXFA55201710-202509

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-50120iGSF50,GVF5#,VXFA55201710-201809

main72760-50121iGSF50,GVF5#,VXFA55201809-202509

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-50070iGSF50,GVF5#,VXFA55201710-202509

8121

8202

85867BLOWER, SEATBACK CLIMATE CONTROL, RH

main85867-50010

main85867-50030

85867ABLOWER, SEATBACK CLIMATE CONTROL, LH

9011910601

main90119-10601

9018905003

main90189-05003

9046707215

main90467-07215

9155180608

main91551-80608

9356755020

main93567-55020

9356855016

main93568-55016

9418560600

main94185-60600

25 parts on this diagram · 40 diagrams in section
