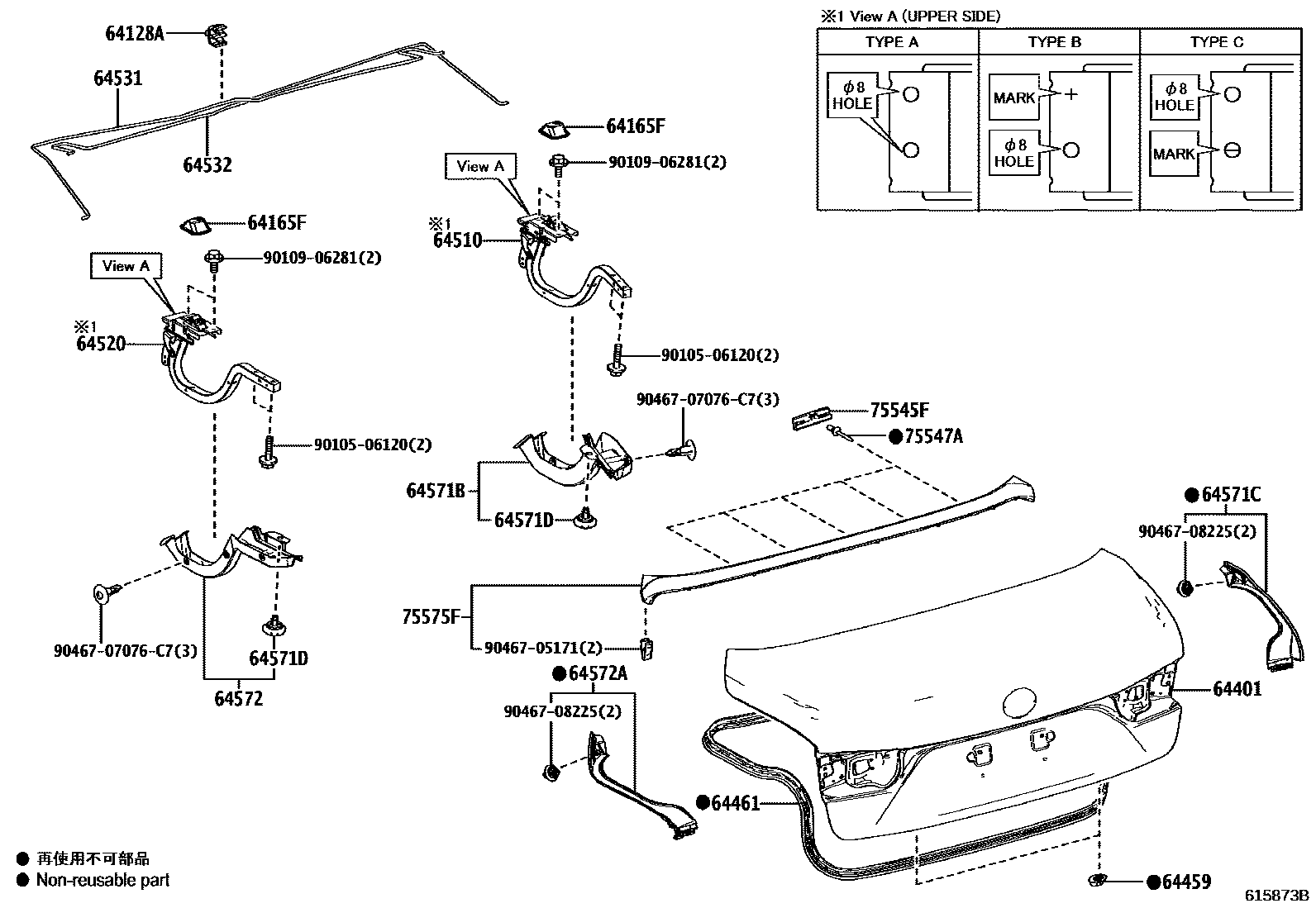

LUGGAGE COMPARTMENT DOOR & LOCK
64128ASUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2
64165FCOVER, UPPER BACK PANEL HOLE, NO.1
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
REAR SPOILER-WITHOUT
REAR SPOILER-WITH
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64571CCOVER, LUGGAGE COMPARTMENT DOOR, RH
64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64572ACOVER, LUGGAGE COMPARTMENT DOOR, LH
75545FCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75547ACLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75575FMOULDING, BACK WINDOW, OUTSIDE LOWER
9010506120
9010906281
9046705171
9046707076C7
main90467-07076C7
9046708225
22 parts on this diagram · 2 diagrams in section
