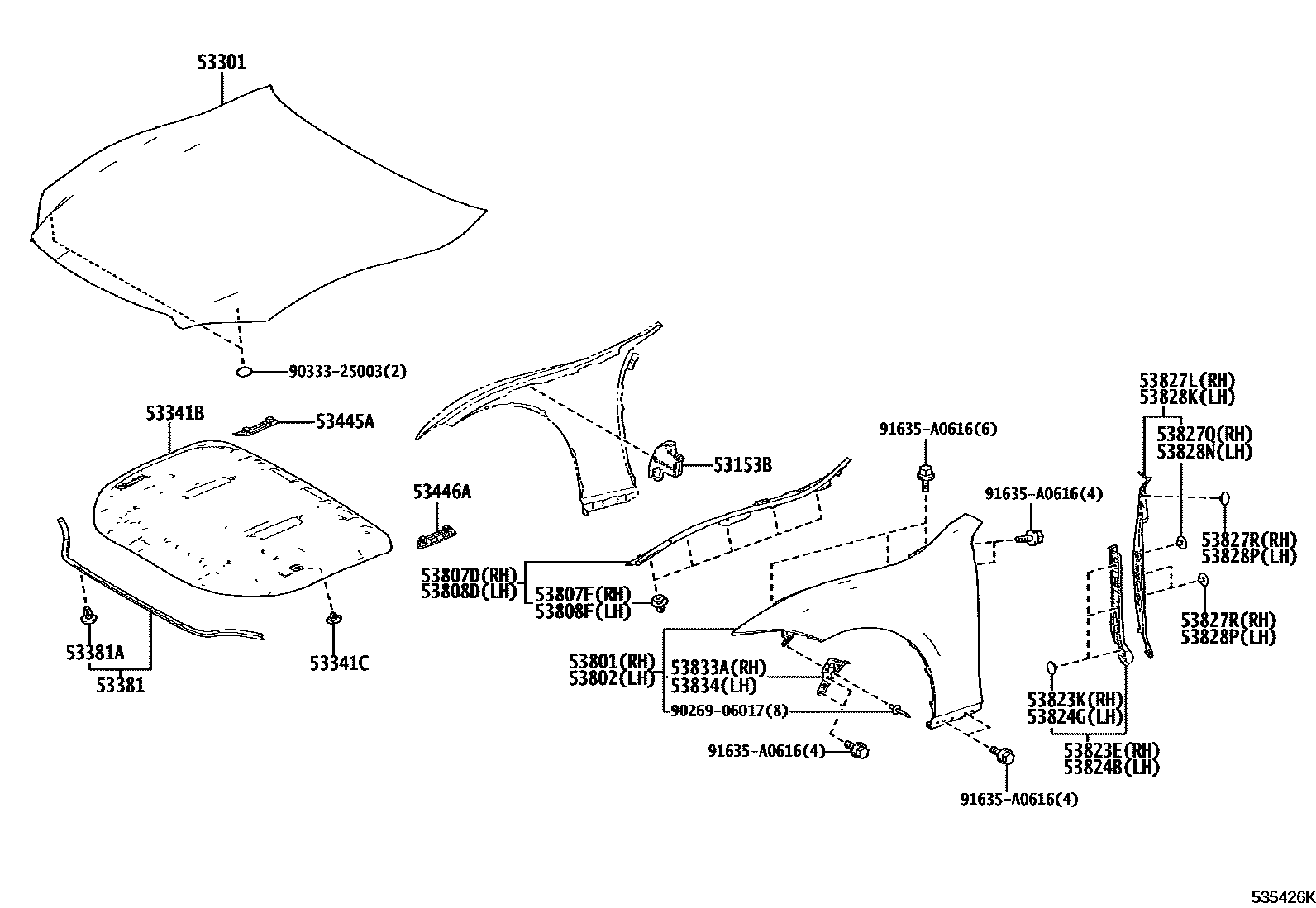

HOOD & FRONT FENDER
53153BGUIDE, FRONT SIDE AIR
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53445ACOVER, HOOD HINGE, RH
53446ACOVER, HOOD HINGE, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53807FCLIP, FRONT FENDER REINFORCEMENT
53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH
53808FCLIP, FRONT FENDER REINFORCEMENT
53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH
53823KCLIP, FRONT SIDE PANEL PROTECTOR
53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH
53824GCLIP, FRONT SIDE PANEL PROTECTOR
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53827QCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1
53827RCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.2
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53828NCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1
53828PCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.2
53833APANEL, FRONT FENDER SIDE, LOWER RH
53834PANEL, FRONT FENDER SIDE, LOWER LH
9026906017
9033325003
91635A0616
29 parts on this diagram · 2 diagrams in section
