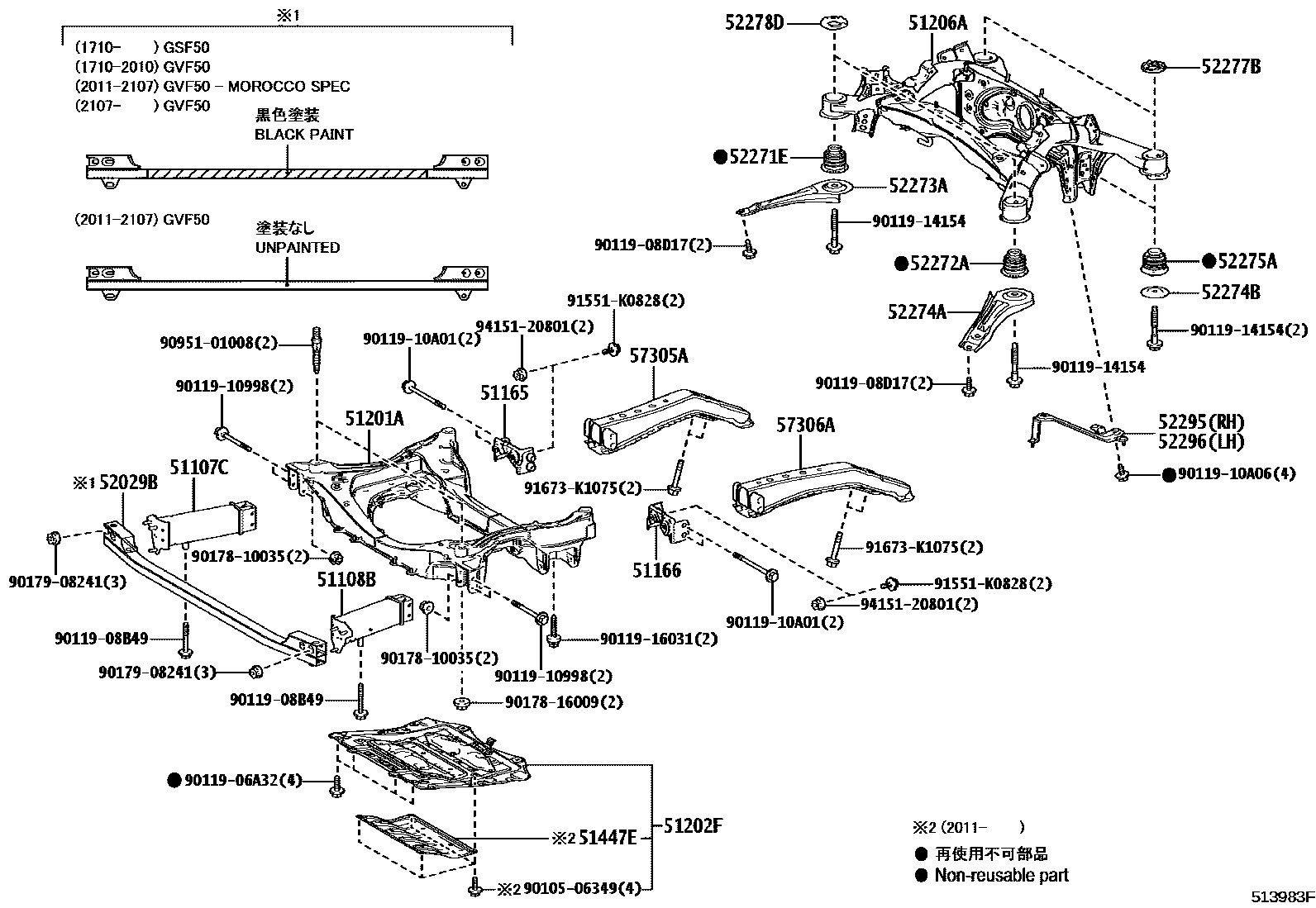

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1UNDER COVER 0004 1UNDER COVER

51107CRAIL SUB-ASSY, REAR FRAME, RH

main51107-50030iGSF50,GVF5#,VXFA55¥4,030201710-202509

51108BRAIL SUB-ASSY, REAR FRAME, LH

main51108-50030iGVF5#¥4,030201710-202509

51165REINFORCEMENT, SIDE RAIL, NO.2 RH

main51165-11010iGSF50,GVF50¥1,070201710-202509

51166REINFORCEMENT, SIDE RAIL, NO.2 LH

main51166-11010iGSF50,GVF50¥1,070201710-202509

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-11020iGSF50,GVF50¥96,800201710-202509

51202FSUPPORT SUB-ASSY, STRUT BAR BRACKET

main51202-50020iGSF50¥11,500201710-202509

main51202-50030iVXFA55¥12,700201710-202509

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-50060iGVF5#¥61,000201710-202509

51447EREINFORCEMENT, ENGINE UNDER COVER

main51447-50030iGSF50¥3,750202011-202509

52029BREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2

main52029-11010iGSF50,VXFA55¥10,300202011-202107

UKRAINE SPEC,BLACK PAINT

main52029-11010iGSF50,VXFA55¥10,300202011-202107

MOROCCO SPEC,BLACK PAINT

main52029-11010iGSF50,VXFA55¥10,300202011-202107

GEORGIA SPEC,BLACK PAINT

main52029-11010iGSF50,VXFA55¥10,300202011-202107

AZERBAIJAN SPEC,BLACK PAINT

main52029-11010iGVF55..LHD¥10,300202011-202107

BLACK PAINT

main52029-11010iGSF50,GVF5#,VXFA55¥10,300201710-202509

main52029-50050iGVF5#¥14,200202011-202107

UNPAINTED

sub52029-11010¥10,300

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-11010iGSF50,GVF5#,VXFA55¥3,090201710-201908

main52271-50070iGSF50,VXFA55¥3,500201909-202509

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-11010iGSF50,GVF5#,VXFA55¥3,090201710-201908

main52272-50030iGSF50,GVF5#,VXFA55¥3,500201909-202509

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-11010iGSF50,GVF5#,VXFA55¥2,120201710-202210

main57075-50010iGSF50,VXFA55¥2,470202210-202509

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52274-11010iGSF50,GVF5#,VXFA55¥2,120201710-202210

main57076-50010iGSF50,VXFA55¥2,470202210-202509

52274BSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52274-50020iGSF50,GVF5#,VXFA55¥840201710-202509

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-11010iGSF50,GVF5#,VXFA55¥2,920201710-202509

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-11010iGSF50,GVF5#,VXFA55¥630201710-202509

52278DSTOPPER, REAR SUSPENSION MEMBER, FRONT UPPER

main52278-11010iGSF50,GVF5#,VXFA55¥630201710-201908

main52278-50050iGSF50,GVF5#,VXFA55¥630201909-202509

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-11010iGSF50,GVF5#,VXFA55¥1,790201710-202509

52296BRACE, REAR SUSPENSION MEMBER, LH

main52296-11010iGSF50,GVF5#,VXFA55¥1,630201710-202509

57305AREINFORCEMENT SUB-ASSY, LOWER ARM MOUNTING, REAR RH

main57305-11010iGSF50,GVF50¥8,200201710-202012

sub57305-30060¥5,500

main57305-30060iGSF50¥5,500202101-202509

57306AREINFORCEMENT SUB-ASSY, LOWER ARM MOUNTING, REAR LH

main57306-11010iGSF50,GVF50¥8,200201710-202012

sub57306-30080¥5,500

main57306-30080iGSF50¥5,500202101-202509

9010506349

main90105-06349¥60

9011906A32

main90119-06A32¥80

9011908B49

main90119-08B49¥160

9011908D17

main90119-08D17¥100

9011910998

main90119-10998¥190

9011910A01

main90119-10A01¥240

9011910A06

main90119-10A06¥100

9011914154

main90119-14154¥360

9011916031

main90119-16031¥490

9017810035

main90178-10035¥100

9017816009

main90178-16009¥190

9017908241

main90179-08241¥80

9095101008

main90951-01008¥430

91551K0828

main91551-K0828¥80

91673K1075

main91673-K1075¥190

9415120801

main94151-20801¥80

37 parts on this diagram · 4 diagrams in section
