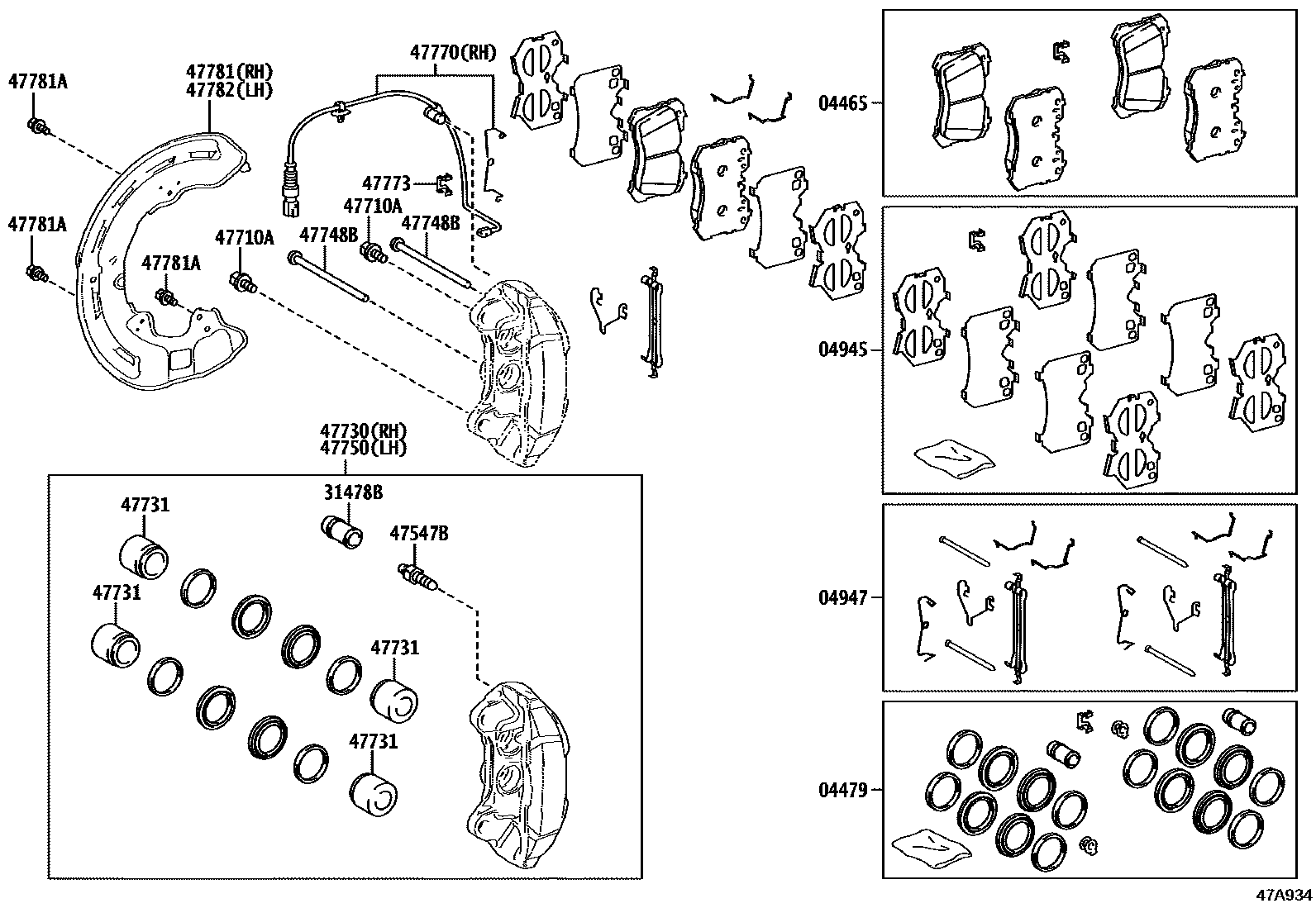

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-11010i201710-201906

MARK AK NS380H,TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE

sub04465-11011

main04465-11010i201710-201906

MARK AK NS380H,"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

sub04465-11011

main04465-11010i201710-201906

MARK AK NS380H,INDIA SPEC&"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

sub04465-11011

main04465-11010i201710-201906

MARK AK NS380H,"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20,SUMMER TIRE

sub04465-11011

main04465-11010i201712-201906

MARK AK NS380H

sub04465-11011

main04465-11011i201906-202010

MARK AK NS380H,TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE

main04465-11011i201906-202310

MARK AK NS380H,"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main04465-11011i201906-202010

MARK AK NS380H,"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20,SUMMER TIRE

main04465-11011i201908-201909

MARK AK NS380H,"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20 30TH ANNIV.

main04465-11011i201906-202310

MARK AK NS380H

main04465-11011i201906-202010

MARK AK NS380H,INDIA SPEC&"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main04465-11011i202011-202310

MARK AK NS380H,TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE

main04465-11030i202310-202501

MARK GA5503,TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE

main04465-11030i202310-202501

MARK GA5503

main04465-11030i202310-202509

MARK GA5503,"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main04465-50280i202011-202111

MARK NBK D6994H,INDIA SPEC&"I PACKAGE"*(I)&TIRE & DISK WHEEL-245/50RF19 NOISE REDUCTION,SUMMER TIRE

main04465-50280i201710-202310

MARK NBK D6994H,INDIA SPEC&TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE

main04465-50280i201908-201909

MARK NBK D6994H,INDIA SPEC&"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20 30TH ANNIV.

main04465-50280i201710-202010

MARK NBK D6994H,INDIA SPEC

main04465-50280i202011-202111

MARK NBK D6994H,INDIA SPEC&TIRE & DISK WHEEL-245/50RF19 NOISE REDUCTION,SUMMER TIRE

main04465-50290i201710-202509

MARK AK NS380H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-11010i201710-202010

INDIA SPEC&"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main04478-11010i201710-202010

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20,SUMMER TIRE

main04478-11010i201710-202509

"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main04478-11010i201710-202010

TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE

main04478-11010i202011-202509

TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE

main04478-11010i201908-201909

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20 30TH ANNIV.

main04478-11010i201712-202410

main04478-50050i201710-202509

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-11010i201710-201809

INDIA SPEC&"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

sub04945-11011

main04945-11010i201710-201809

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20,SUMMER TIRE

sub04945-11011

main04945-11010i201710-201809

"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

sub04945-11011

main04945-11010i201710-201809

TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE

sub04945-11011

main04945-11010i201712-201809

sub04945-11011

main04945-11011i202011-202509

TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE

main04945-11011i201809-202010

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20,SUMMER TIRE

main04945-11011i201809-202509

"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main04945-11011i201809-202010

TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE

main04945-11011i201908-201909

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20 30TH ANNIV.

main04945-11011i201809-202010

INDIA SPEC&"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main04945-11011i201909-202410

main04945-50080i201710-202509

04947FITTING KIT, DISC BRAKE, FRONT

main04947-11010i201710-202010

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20,SUMMER TIRE

main04947-11010i201710-202509

"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main04947-11010i201710-202010

TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE

main04947-11010i201908-201909

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20 30TH ANNIV.

main04947-11010i201710-202010

INDIA SPEC&"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main04947-11010i201712-202410

main04947-11010i202011-202509

TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE

main04947-50140i201710-202509

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010i201710-202509

main31478-14010i202310-202509

"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main31478-14010i202310-202509

TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010i201710-202509

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-14180i201710-202509

*14-1.5PX40-35.5

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-11050i201710-202509

"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main47730-11050i201710-202010

INDIA SPEC&"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main47730-50180i201710-202509

main47730-50260i201712-202410

main47730-50260i202011-202509

TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE

main47730-50260i201710-202010

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20,SUMMER TIRE

main47730-50260i201710-202010

TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE

main47730-50260i201908-201909

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20 30TH ANNIV.

47731PISTON, FRONT DISC BRAKE

main47731-11050i201710-202010

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20,SUMMER TIRE

main47731-11050i201710-202509

"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main47731-11050i201710-202010

TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE

main47731-11050i201908-201909

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20 30TH ANNIV.

main47731-11050i201710-202010

INDIA SPEC&"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main47731-11050i201712-202410

main47731-11050i202011-202509

TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE

main47731-50180i201710-202509

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-11050i201710-202010

"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main47748-11050i201710-202010

INDIA SPEC&"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50200i202011-202111

INDIA SPEC&TIRE & DISK WHEEL-245/50RF19 NOISE REDUCTION,SUMMER TIRE

main47735-50200i202011-202310

INDIA SPEC&TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE

main47735-50200i202011-202111

INDIA SPEC&"I PACKAGE"*(I)&TIRE & DISK WHEEL-245/50RF19 NOISE REDUCTION,SUMMER TIRE

main47735-50200i201710-202509

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-11040i201710-202010

INDIA SPEC&"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main47750-11040i201710-202509

"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main47750-50280i201710-202509

main47750-50300i201710-202010

TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE

main47750-50300i201712-202410

main47750-50300i202011-202509

TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE

main47750-50300i201710-202010

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20,SUMMER TIRE

main47750-50300i201908-201909

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20 30TH ANNIV.

47770WIRE ASSY, PAD WEAR INDICATOR, FRONT RH

main47770-11010i201710-202509

"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main47770-11010i201710-202010

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20,SUMMER TIRE

main47770-11010i201710-202010

TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE

main47770-11010i201908-201909

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20 30TH ANNIV.

main47770-11010i201710-202010

INDIA SPEC&"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main47770-11010i201712-202410

main47770-11010i202011-202509

TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE

main47770-50120i201710-202509

47773RETAINER, PAD WEAR INDICATOR

main47773-50030i201710-202509

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-11010i201710-202010

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20,SUMMER TIRE

main47781-11010i201710-202509

"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main47781-11010i201710-202010

TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE

main47781-11010i201908-201909

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20 30TH ANNIV.

main47781-11010i201710-202010

INDIA SPEC&"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main47781-11010i201712-202410

main47781-11010i202011-202509

TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE

main47781-50080i201710-202509

main47781-50080i202011-202310

INDIA SPEC&WITHOUT(PRE-COLLISION SYSTEM)&TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE

main47781-50080i202011-202111

INDIA SPEC&WITHOUT(PRE-COLLISION SYSTEM)&TIRE & DISK WHEEL-245/50RF19 NOISE REDUCTION,SUMMER TIRE

main47781-50080i202011-202111

INDIA SPEC&"I PACKAGE"*(I)&WITHOUT(PRE-COLLISION SYSTEM)&TIRE & DISK WHEEL-245/50RF19 NOISE REDUCTION,SUMMER TIRE

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06508i201710-202509

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-11010i201710-202010

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20,SUMMER TIRE

main47782-11010i201710-202509

"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main47782-11010i201710-202010

TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE

main47782-11010i201908-201909

"EXECUTIVE"*(E)&TIRE & DISK WHEEL-245/45RF20 30TH ANNIV.

main47782-11010i201710-202010

INDIA SPEC&"F SPORT"*(F)&TIRE & DISK WHEEL-245/45RF20&275/40RF20,SUMMER TIRE

main47782-11010i202011-202509

TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE

main47782-11010i201712-202410

main47782-50080i202011-202310

INDIA SPEC&WITHOUT(PRE-COLLISION SYSTEM)&TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE

main47782-50080i202011-202111

INDIA SPEC&WITHOUT(PRE-COLLISION SYSTEM)&TIRE & DISK WHEEL-245/50RF19 NOISE REDUCTION,SUMMER TIRE

main47782-50080i202011-202111

INDIA SPEC&"I PACKAGE"*(I)&WITHOUT(PRE-COLLISION SYSTEM)&TIRE & DISK WHEEL-245/50RF19 NOISE REDUCTION,SUMMER TIRE

main47782-50080i201710-202509

17 parts on this diagram · 3 diagrams in section
