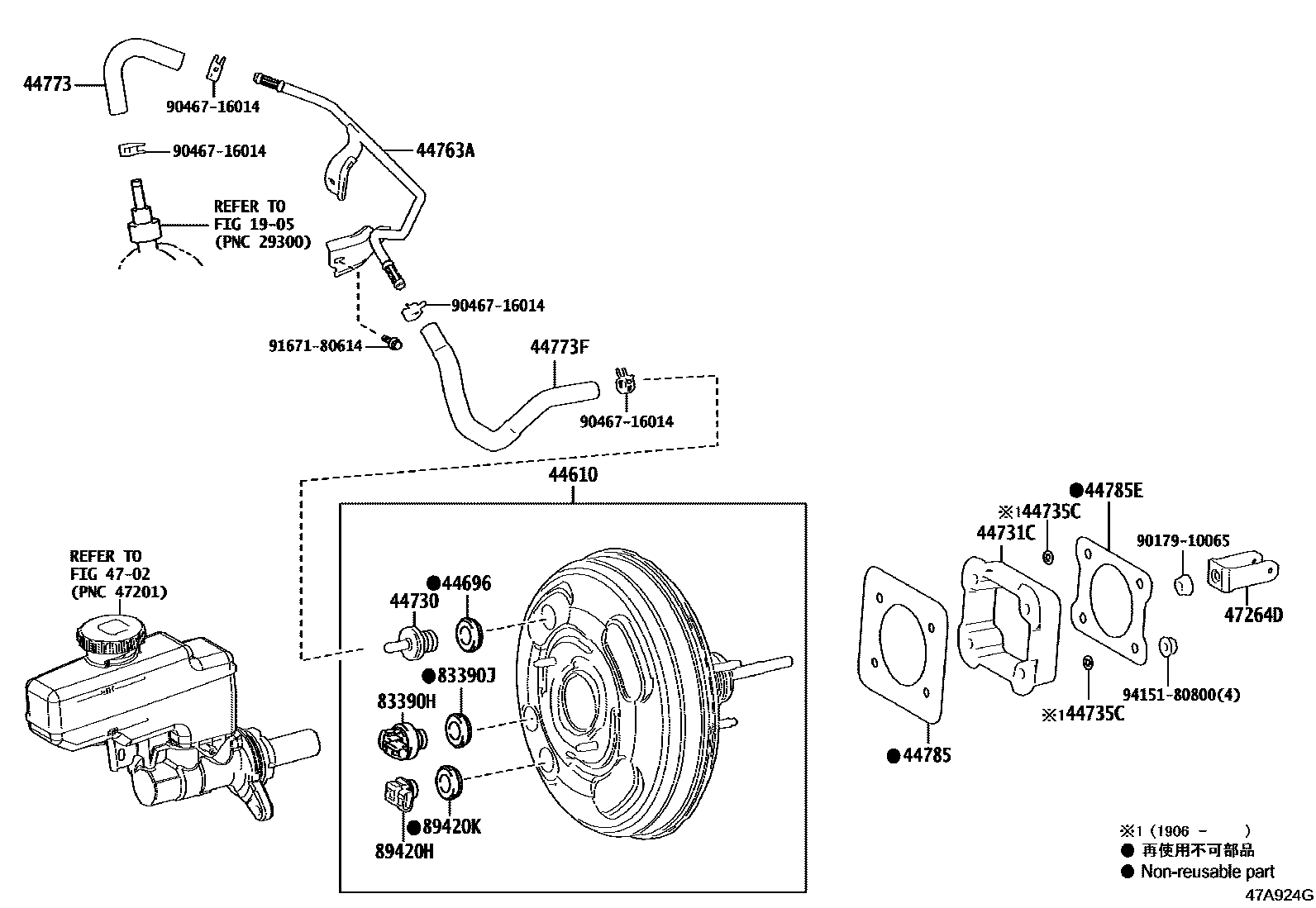

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-50470iVXFA55201712-202310

main44610-50490iGSF50201710-202310

main44610-50560iVXFA55202310-202410

main44610-50600iGSF50202310-202410

44696GROMMET, CHECK VALVE

main90480-24439iGSF50,VXFA55201710-202410

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iGSF50,VXFA55201710-202410

44731CBRACKET, BRAKE BOOSTER

main44731-50030iGSF50,VXFA55201710-202410

44735CRING, BOOSTER BRACKET STOPPER

main44735-30020iGSF50,VXFA55201909-202410

44763ATUBE, HOSE TO HOSE, NO.1

main44763-50050iVXFA55201712-202410

main44763-50060iGSF50201710-202410

44773HOSE, VACUUM, NO.2

main44773-50070iVXFA55201712-202410

main44773-50120iGSF50201710-202410

44773FHOSE, UNION TO CHECK VALVE

main44773-50100iVXFA55201712-202410

main44773-50110iGSF50201710-202410

44785GASKET, BRAKE BOOSTER

main44785-47010iGSF50,VXFA55201710-202410

44785EGASKET, BRAKE BOOSTER, NO.2

main44785-12040iGSF50,VXFA55201710-202410

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iGSF50,VXFA55201710-202402

main47264-48020iGSF50,VXFA55202403-202410

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iGSF50201710-202410

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iGSF50201710-202410

89420HSENSOR ASSY, VACUUM

main89421-52020iGSF50,VXFA55201710-202310

main89421-71040iGSF50,VXFA55202310-202410

89420KGROMMET, VACUUM SENSOR

main90480-24439iGSF50,VXFA55201710-202410

9017910065

main90179-10065

9046716014

main90467-16014

9167180614

main91671-80614

9415180800

main94151-80800

21 parts on this diagram · 2 diagrams in section
