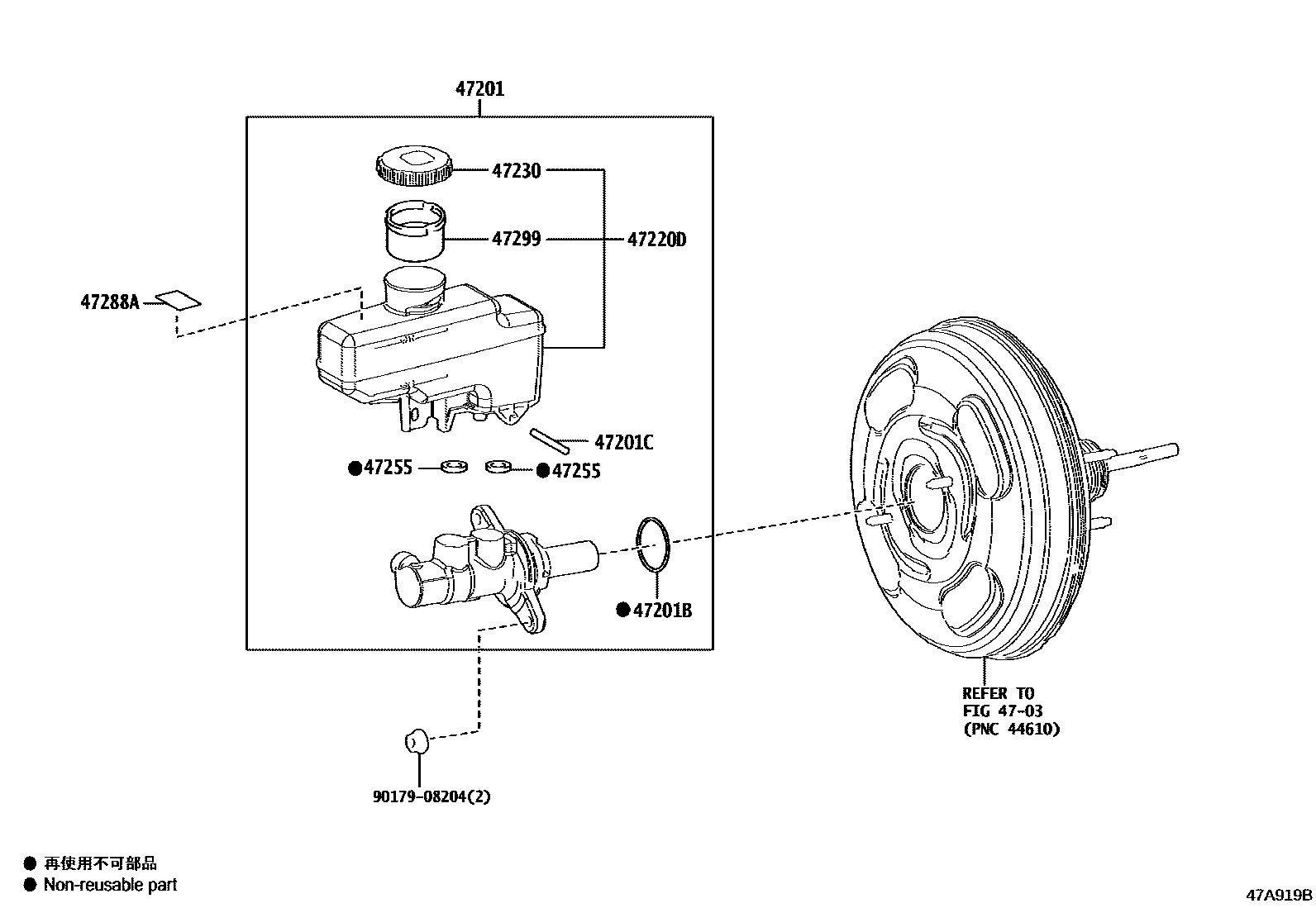

BRAKE MASTER CYLINDER

0001 1W(VACUUM BRAKE BOOSTER) 0002 1W/O(VACUUM BRAKE BOOSTER) 0003 1W/O(VACUUM BRAKE BOOSTER) 0005 1W(INTELLIGENT PARKING ASSIST)0007 1W(INTELLIGENT PARKING ASSIST)

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-50360iGSF50,VXFA55201710-202410

main47201-50380iGVF5#..LHD201710-201711

sub47201-50381

main47201-50381iGVF5#..LHD202011-202310

"VERSION L"*(L)&LEXUS SAFETY SYSTEM+A

main47201-50381iVXFA55202011-202310

"EXECUTIVE"*(E)&LEXUS SAFETY SYSTEM+A

main47201-50381iGVF5#..LHD201711-202010

main47201-50390iGVF5#..RHD201710-202310

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGSF50,VXFA55201710-202410

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGSF50,GVF5#,VXFA55201710-202410

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-11010iGVF5#..LHD201710-201711

sub47220-11030

main47220-11030iVXFA55202011-202310

"EXECUTIVE"*(E)&LEXUS SAFETY SYSTEM+A

main47220-11030iGVF5#..LHD201711-202010

main47220-11030iGVF5#..LHD202011-202310

"VERSION L"*(L)&LEXUS SAFETY SYSTEM+A

main47220-11040iGVF5#..RHD201710-202310

main47220-50200iGSF50,VXFA55201710-202410

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-11010iGVF5#202011-202310

"EXECUTIVE"*(E)&LEXUS SAFETY SYSTEM+A

main47230-11010iGVF5#..RHD201710-202010

main47230-11010iVXFA55202011-202310

"VERSION L"*(L)&LEXUS SAFETY SYSTEM+A

main47230-47090iGSF50,VXFA55201710-202509

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iGVF5#201710-202410

sub90016-AT001

47288ALABEL, BRAKE FLUID NOTICE

main47288-30010iGSF50,VXFA55202310-202410

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGSF50,VXFA55201710-202410

main47299-30190iGVF5#202011-202310

"EXECUTIVE"*(E)&LEXUS SAFETY SYSTEM+A

main47299-30190iGVF5#202011-202310

"VERSION L"*(L)&LEXUS SAFETY SYSTEM+A

main47299-30190iGVF5#201710-202010

9017908204

main90179-08204

10 parts on this diagram · 5 diagrams in section
