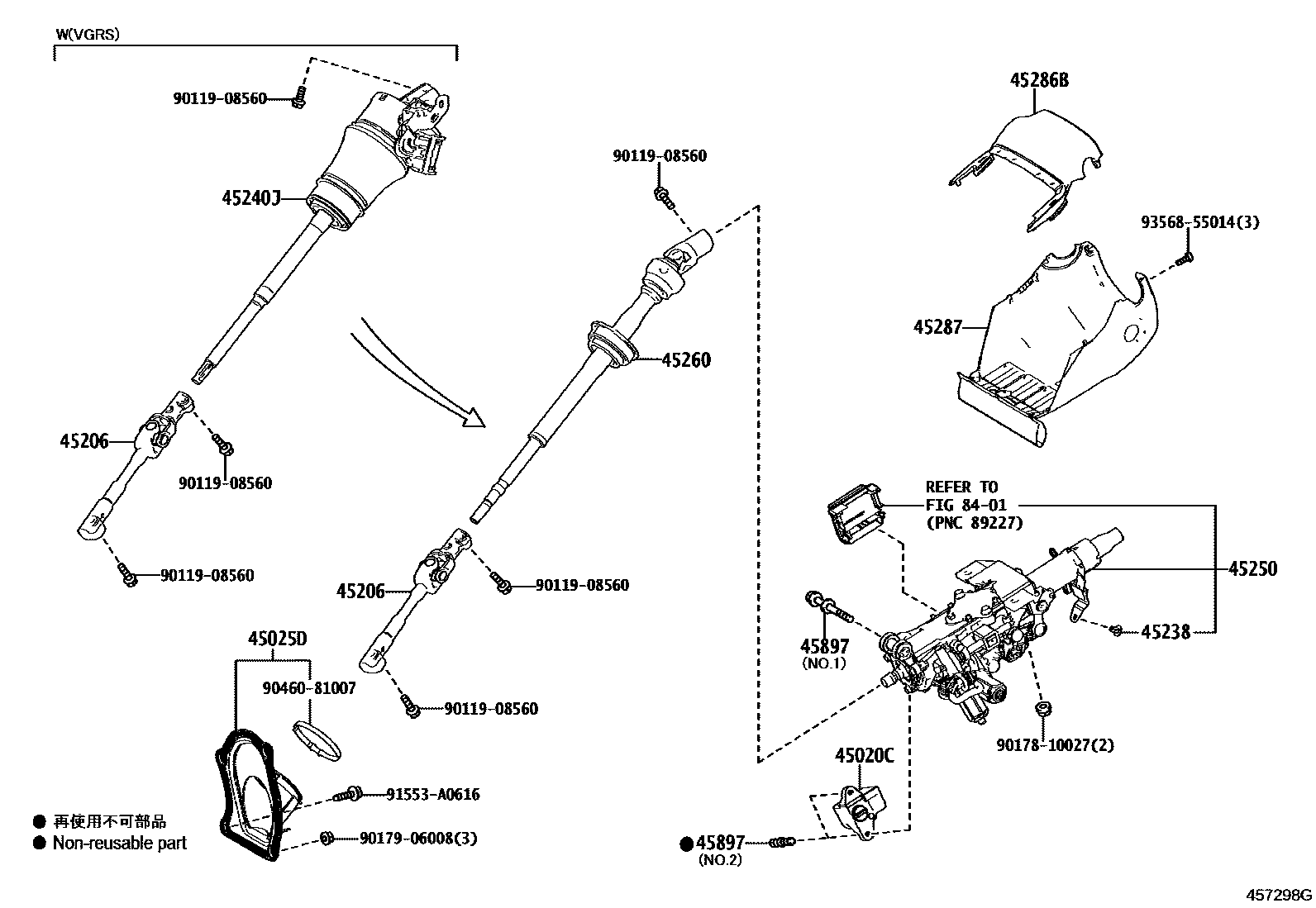

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
UKRAINE SPEC
KAZAKHSTAN SPEC
GEORGIA SPEC
AZERBAIJAN SPEC
ARMENIA SPEC
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45240JACTUATOR ASSY, STEERING
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
sub45260-11030
sub45260-30270
sub45260-11031
sub45260-30271
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM06,2#,3#,52,53
BLACK,TRIM0#,1#,2#,3#,4#,5#
NOBLE BROWN,TRIM04,05,1#,4#,59,9#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#,3#,4#,5#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM06,2#,3#,52,53
NOBLE BROWN,TRIM04,05,1#,4#,59,9#
BLACK,TRIM2#
BLACK,TRIM0#,1#,2#,3#,4#,5#
45897BOLT, STEERING LOCK SET
AZERBAIJAN SPEC,NO.2
NO.2
UKRAINE SPEC,NO.2
KAZAKHSTAN SPEC,NO.2
GEORGIA SPEC,NO.2
ARMENIA SPEC,NO.2
NO.1
8401
9011908560
main90119-08560
9017810027
main90178-10027
9017906008
main90179-06008
9046081007
main90460-81007
91553A0616
main91553-A0616
9356855014
main93568-55014
17 parts on this diagram · 4 diagrams in section
