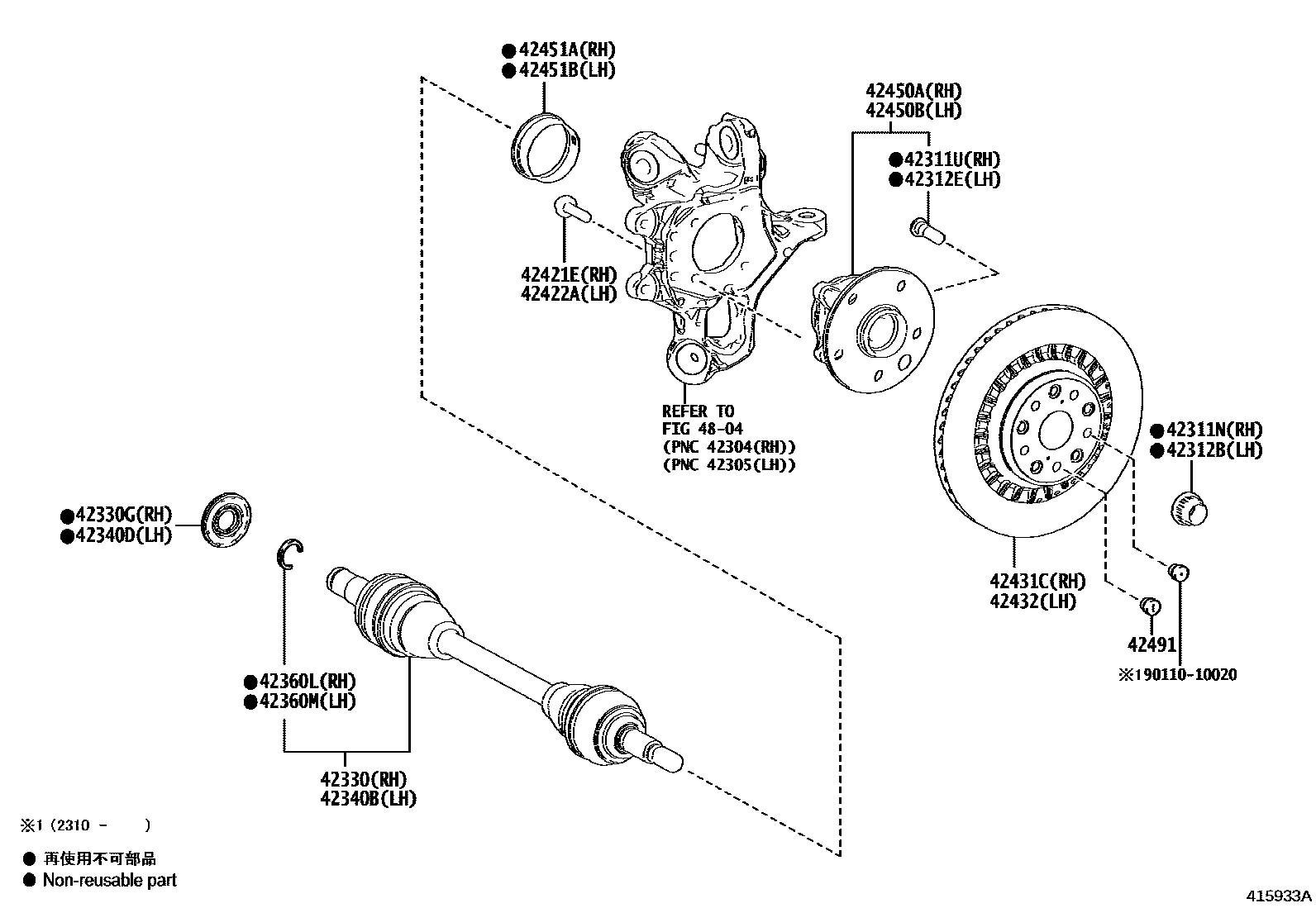

REAR AXLE SHAFT & HUB
42311NNUT(FOR REAR AXLE SHAFT RH)
42311UBOLT, HUB(FOR REAR AXLE RH)
42312BNUT(FOR REAR AXLE SHAFT LH)
42312EBOLT, HUB(FOR REAR AXLE LH)
42330SHAFT ASSY, REAR DRIVE, RH
42330GOIL SEAL, REAR DRIVE SHAFT, RH
42340BSHAFT ASSY, REAR DRIVE, LH
42340DOIL SEAL, REAR DRIVE SHAFT, LH
42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)
42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)
42421EBOLT (FOR REAR AXLE BEARING CASE RH)
42422ABOLT (FOR REAR AXLE BEARING CASE LH)
42431CDISC, REAR RH
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD)
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD)
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD)
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT
WITHOUT(PRE-COLLISION SYSTEM)&FRONT WHEEL BRAKE-18INCH
42432DISC, REAR LH
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD)
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD)
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD)
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD),F SPORT
WITHOUT(PRE-COLLISION SYSTEM)&FRONT WHEEL BRAKE-18INCH
42450AHUB & BEARING ASSY, REAR AXLE, RH
42450BHUB & BEARING ASSY, REAR AXLE, LH
42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH
42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH
42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
4804
9011010020
21 parts on this diagram · 1 diagram in section
