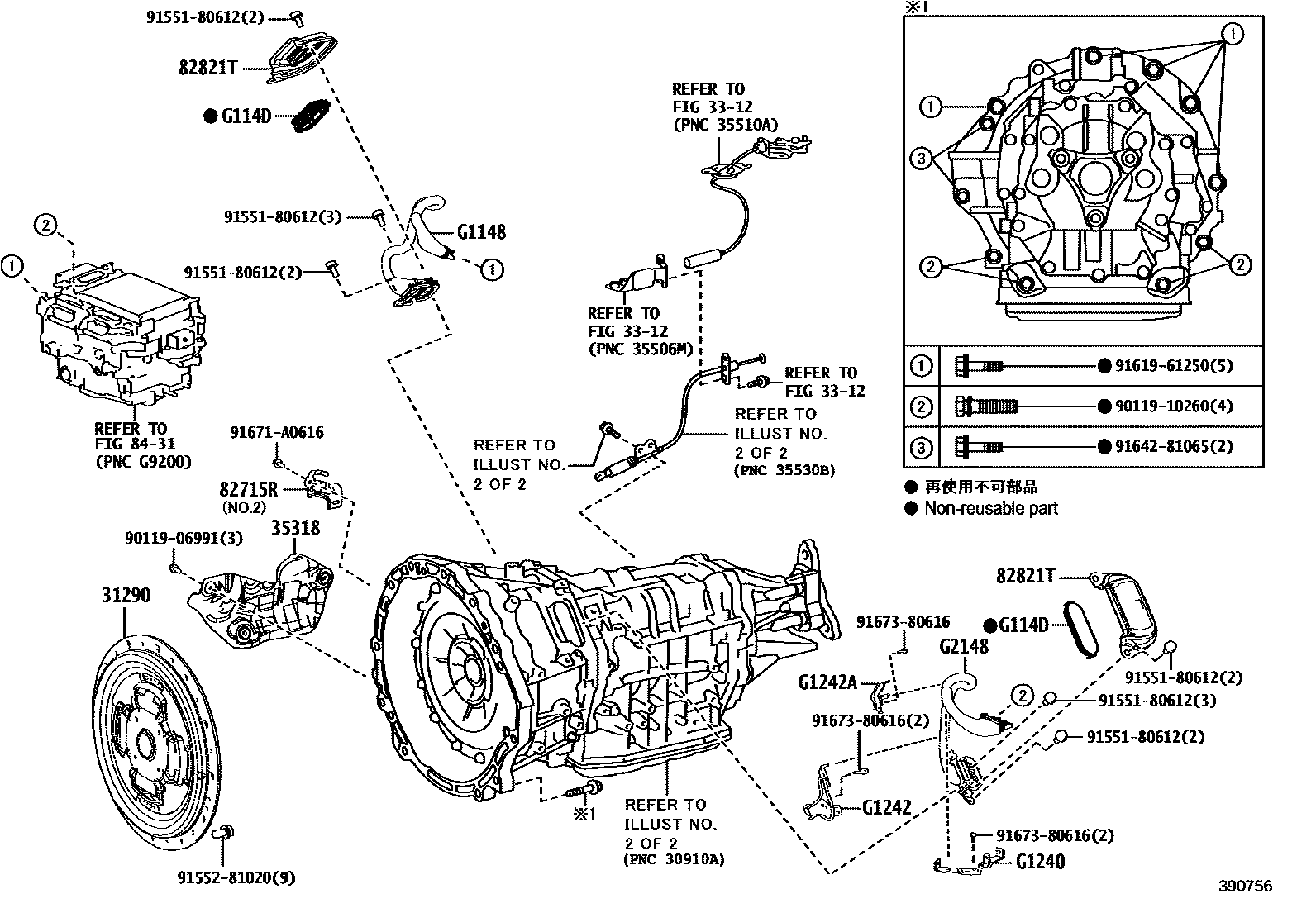

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31290COVER ASSY, TRANSMISSION INPUT DAMPER

main31290-30010iGVF5#201710-202509

3312

35318INSULATOR, TRANSMISSION OIL PUMP

main35318-11010iGVF5#201710-202509

82715RBRACKET, WIRING HARNESS CLAMP, NO.1

main82715-11010iGVF5#201710-202509

NO.1

main82715-11020iGVF5#201710-202509

NO.2

82821TCOVER, CONNECTOR

main82821-11010iGVF5#201710-202509

8431

G1148CABLE, MOTOR

mainG114811010iGVF50..RHD201710-202509

mainG114811020iGVF50..LHD201710-202509

mainG114850030iGVF55..RHD201710-202509

mainG114850040iGVF55..LHD201710-202509

G114DCAP, MOTOR CABLE TERMINAL

mainG114D30010iGVF5#201710-202509

G1240BRACKET ASSY, INVERTER MOTOR CABLE

mainG124011010iGVF5#..RHD201710-202509

mainG124011020iGVF5#..LHD201710-202509

G1242BRACKET, ENGINE MOTOR CABLE CLAMP

mainG124211010iGVF5#..RHD201710-202509

mainG124211030iGVF5#..LHD201710-202509

G1242ABRACKET, ENGINE MOTOR CABLE CLAMP

mainG124211020iGVF5#..RHD201710-202509

mainG124211040iGVF5#..LHD201710-202509

G2148CABLE, GENERATOR

mainG214811010iGVF50..RHD201710-202509

mainG214811020iGVF50..LHD201710-202509

mainG214850030iGVF55..RHD201710-202509

mainG214850040iGVF55..LHD201710-202509

9011906991

main90119-06991

9011910260

main90119-10260

9155180612

main91551-80612

9155281020

main91552-81020

9161961250

main91619-61250

9164281065

main91642-81065

91671A0616

main91671-A0616

9167380616

main91673-80616

20 parts on this diagram · 6 diagrams in section
