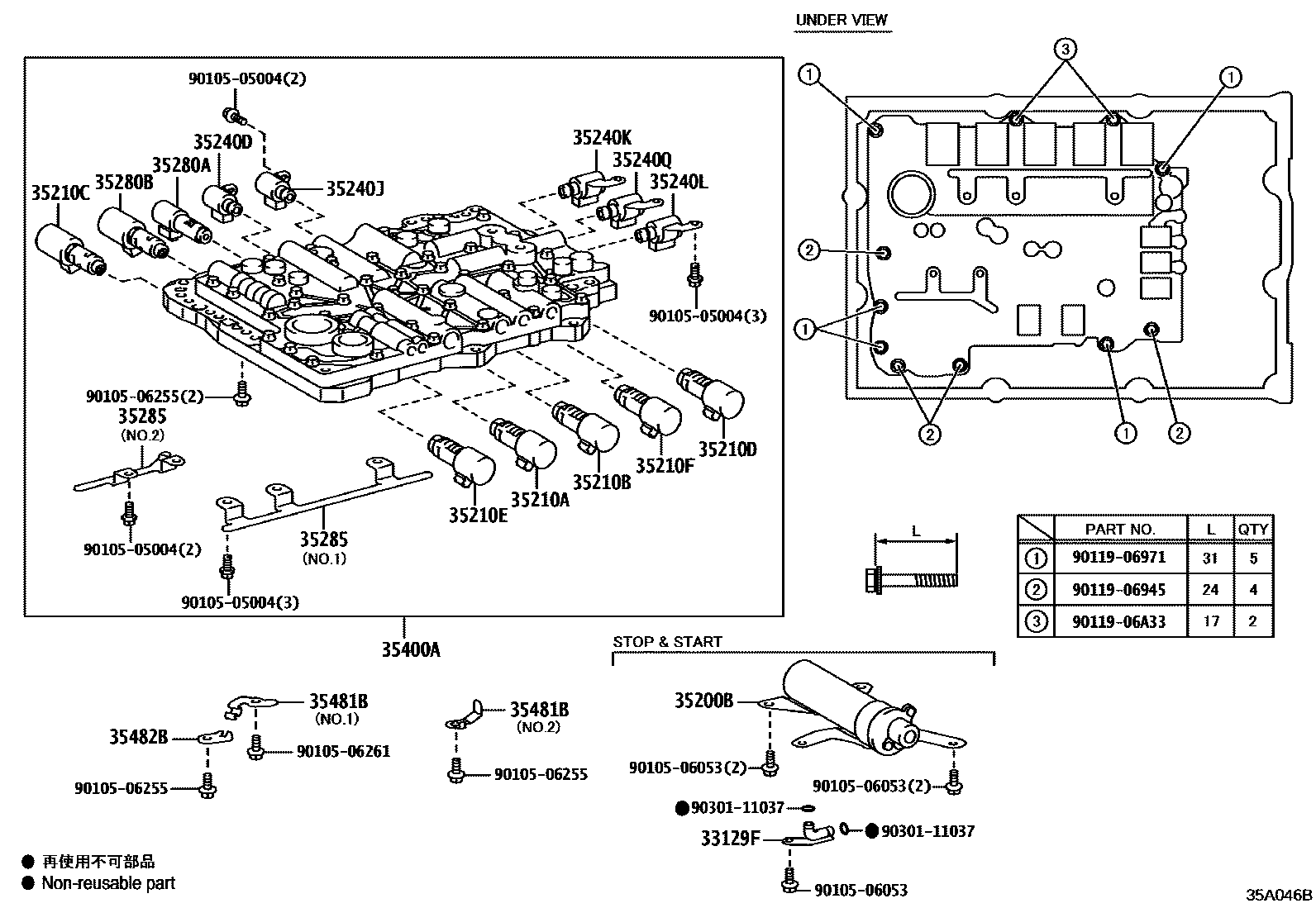

VALVE BODY & OIL STRAINER (ATM)
33129FPIPE, TRANSMISSION OIL
35200BACCUMULATOR ASSY, TRANSMISSION ACTUATOR, W/SOLENOID
35210AVALVE, SOLENOID(SL1)
35210BVALVE, SOLENOID(SL3)
35210CVALVE, SOLENOID(SL2)
35210DVALVE, SOLENOID(SL4)
35210EVALVE, SOLENOID(SL5)
35210FVALVE, SOLENOID(SL6)
35240DVALVE, SOLENOID(SL)
35240JVALVE, SOLENOID(SR)
35240KSOLENOID ASSY, TRANSMISSION 3WAY(SC1)
35240LSOLENOID ASSY, TRANSMISSION 3WAY(SC2)
35240QSOLENOID ASSY, TRANSMISSION 3WAY(SC3)
35280AVALVE, SOLENOID(SLU)
35280BVALVE, SOLENOID(SLT)
35285PLATE, SOLENOID LOCK
NO.1
NO.2
35400ABODY ASSY, TRANSMISSION VALVE W/SOLENOID
35481BCLAMP, VALVE BODY WIRE HARNESS
NO.1
NO.2
35482BCLAMP, TEMPERATURE SENSOR
9010505004
9010506053
9010506255
9010506261
9011906945
9011906971
9011906A33
9030111037
27 parts on this diagram · 2 diagrams in section
