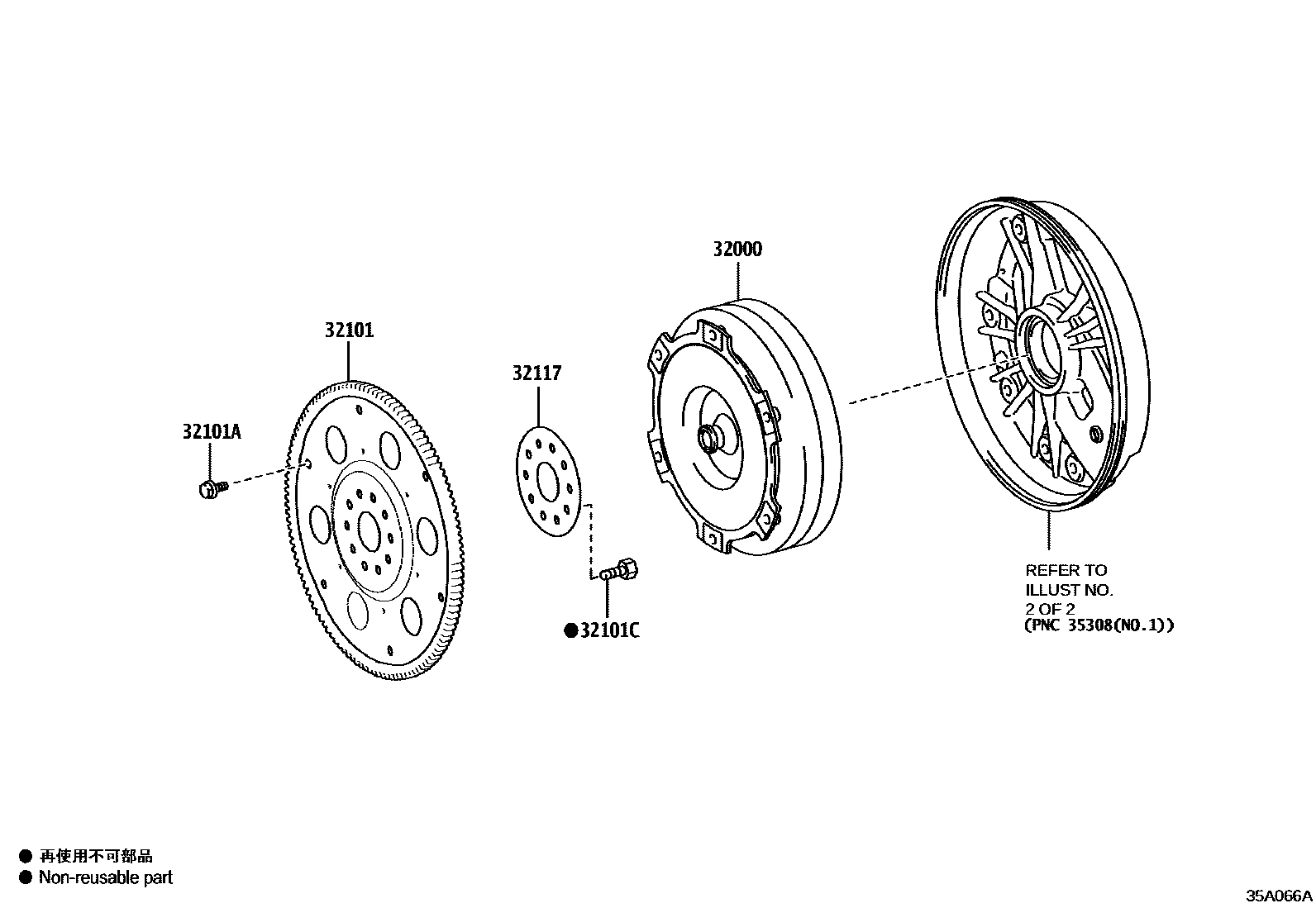

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1AGA0E,AGA0F 0002 1AGA0E,AGA0F

32000CONVERTER ASSY, TORQUE

main32000-50060iVXFA55201712-202410

main32000-50070iGSF50201710-202410

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-50030iVXFA55201712-202410

main32101-50040iGSF50201710-202410

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-09005iGSF50201710-202410

*9-1.25PX11-8,BLACK

main90105-09006iGSF50201710-202410

*9-1.25PX11-8.5,SILVER WHITE

main90105-10595iVXFA55201712-202410

*10-1.5PX14.8-6.2,BLACK

main90105-10596iVXFA55201712-202410

*10-1.5PX14.8-6.5,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iGSF50201710-202410

*10-1.25PX18-13

main90910-02129iVXFA55201712-202410

*10-1.25PX23-16,(J)

main90910-02129iVXFA55202011-202104

*10-1.25PX23-16

main90910-A2002iVXFA55201712-202410

*10-1.25PX23-16,(L)

32117SPACER, DRIVE PLATE, REAR

main32117-30030iGSF50201710-202410

main32117-50020iVXFA55201712-202410

5 parts on this diagram · 2 diagrams in section
