STARTER

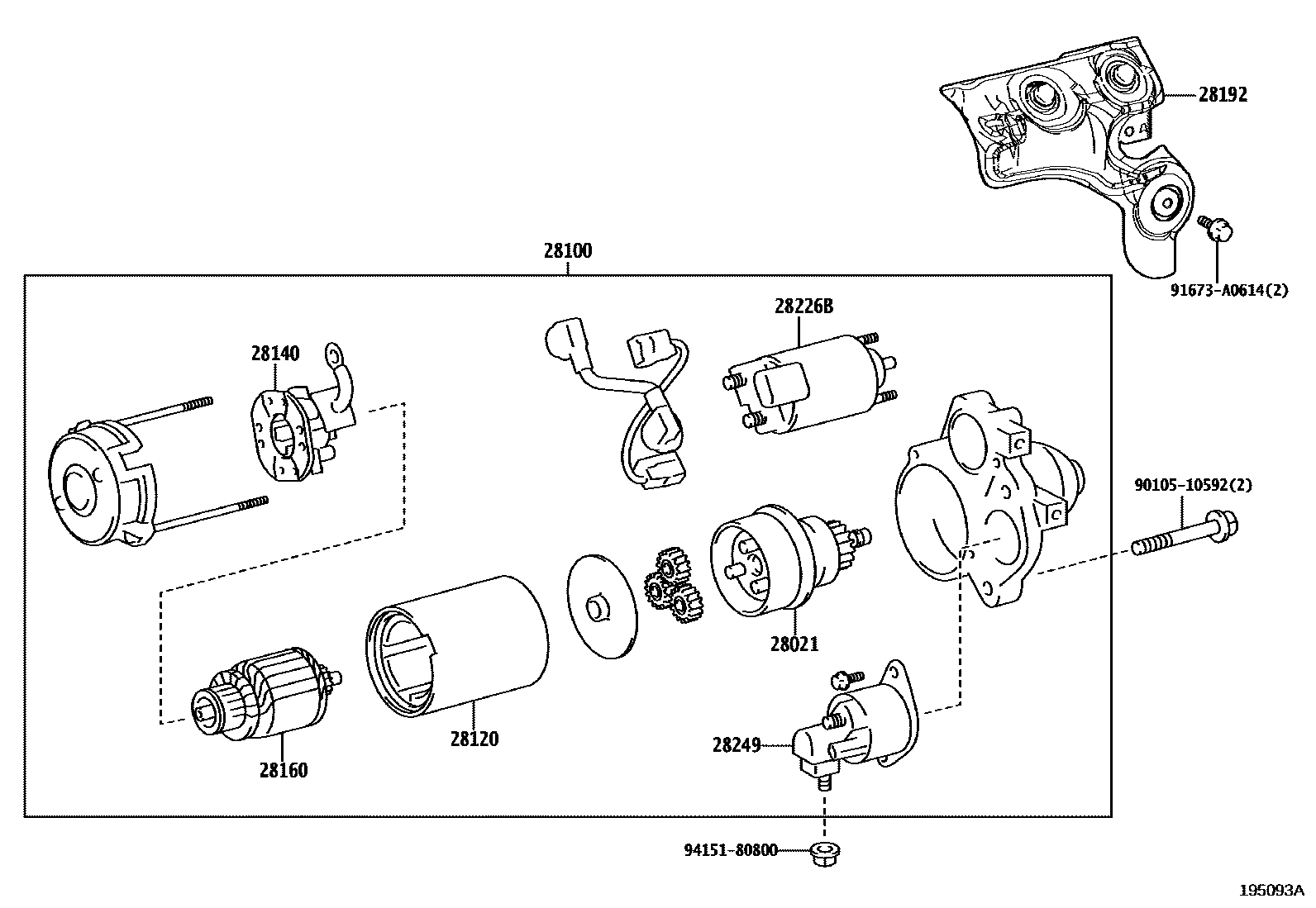

Parts diagram

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-31230i201710-202410

main28021-70070i201712-202410

28100STARTER ASSY

main28100-31230i201710-202410

12V 1.7KW

main28100-70070i201712-202410

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-31230i201710-202410

main28120-70070i201712-202410

28140HOLDER ASSY, STARTER BRUSH

main28140-21100i201710-202410

28160ARMATURE ASSY, STARTER

main28160-36110i201710-202410

28192COVER, STARTER

main28192-31050i201710-202410

main28192-70010i201712-202410

28226BSTARTER KIT, REPAIR SERVICE

main28226-31230i201710-202410

main28226-70070i201712-202410

28249RELAY, STARTER INRUSH CURRENT REDUCTION

main28249-31230i201710-202410

main28249-70070i201712-202410

9010510592

main90105-10592

91673A0614

main91673-A0614

9415180800

main94151-80800

11 parts on this diagram · 2 diagrams in section
