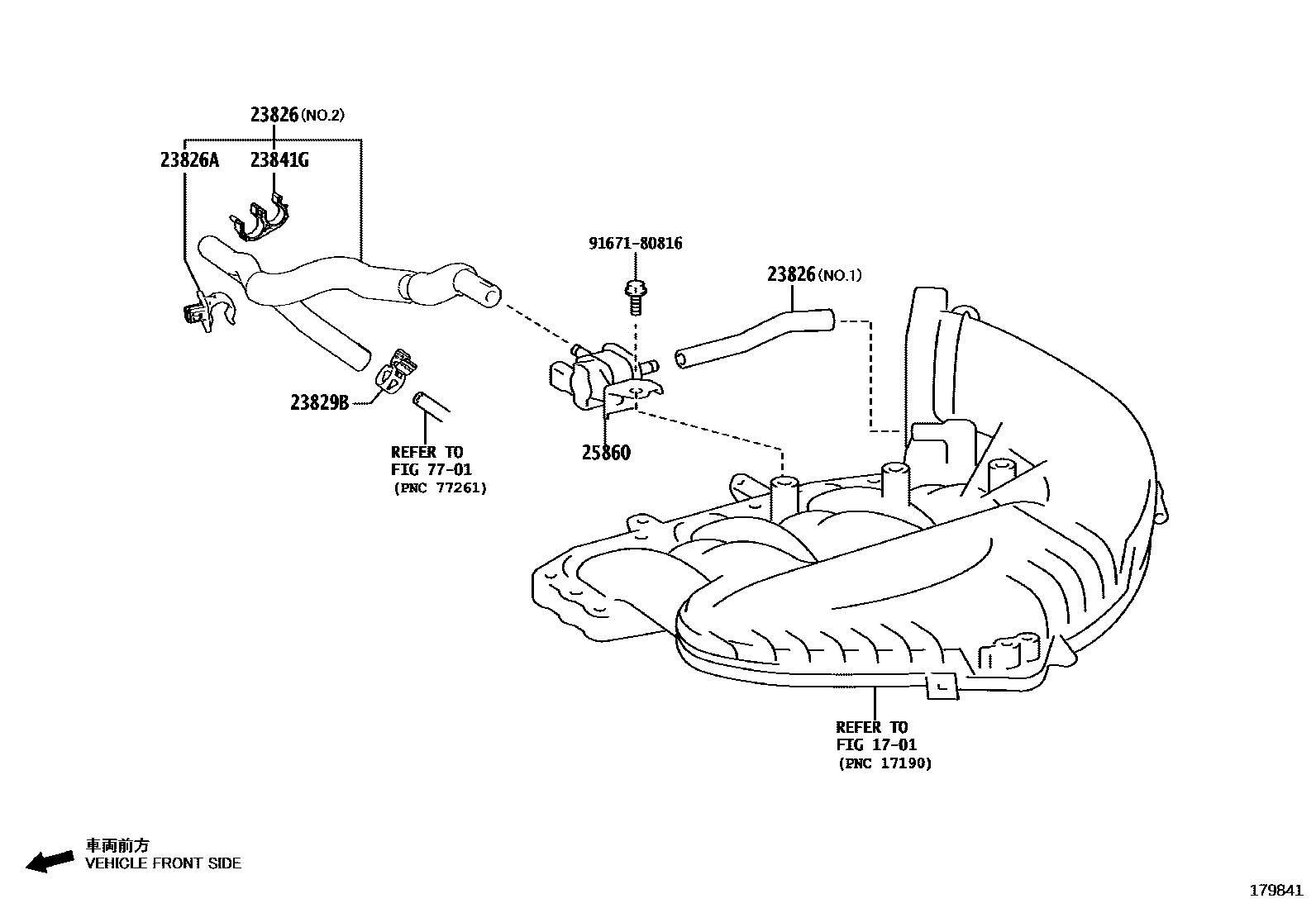

VACUUM PIPING
1701
23826HOSE, FUEL VAPOR FEED, NO.1
NO.2
NO.1
NO.1
NO.2
NO.2
NO.2
NO.2
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
23829BCLIP(FOR FUEL VAPOR FEED HOSE)
23841GCLAMP, FUEL HOSE
25860VALVE ASSY, VACUUM SWITCHING, NO.1
7701
9167180816
main91671-80816
8 parts on this diagram · 6 diagrams in section
