WATER PUMP

0001 1 0002 1 0003 1

1106

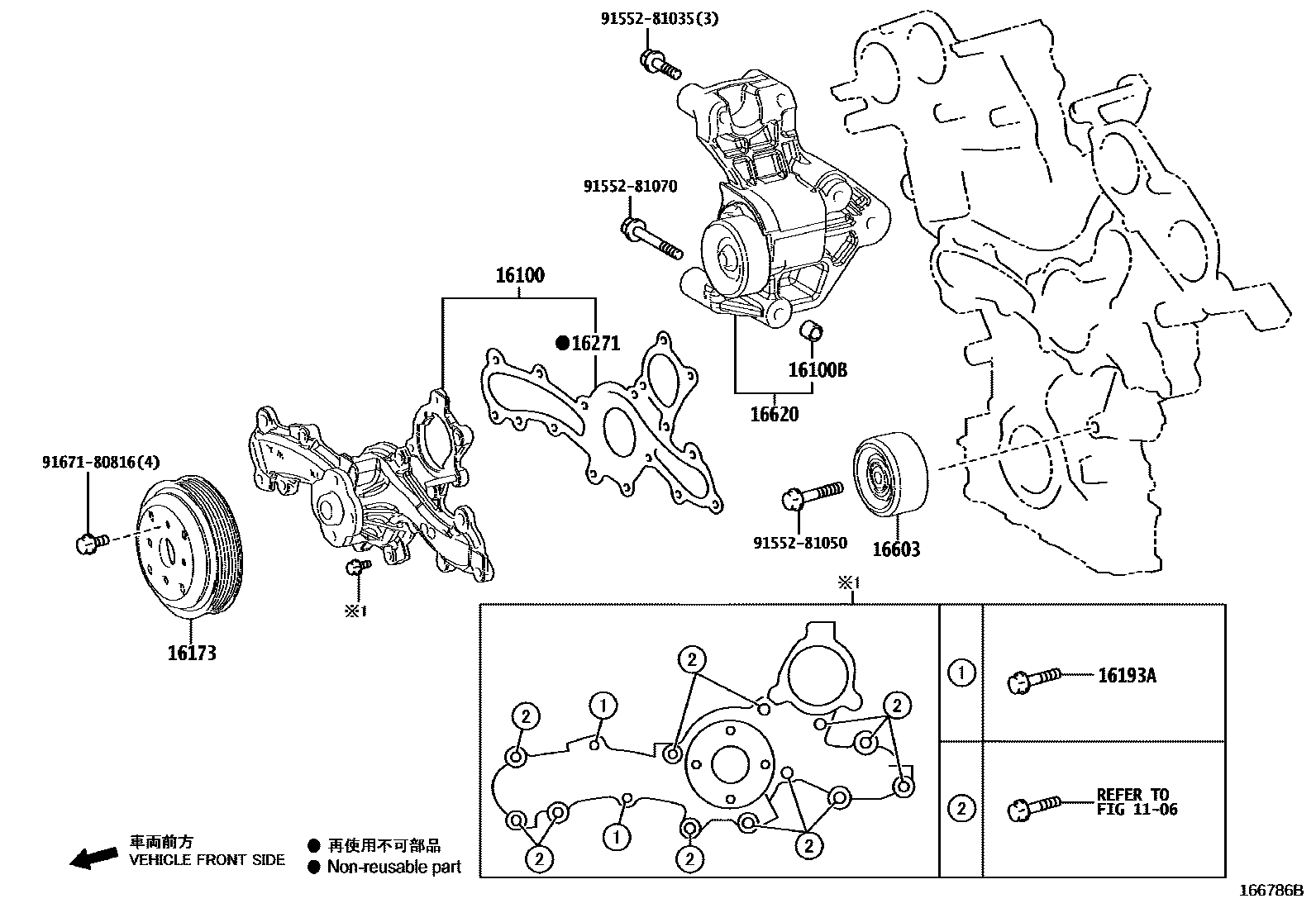

16100PUMP ASSY, ENGINE WATER

main16100-39615i8GR#..GSF50,GVF5#¥9,500201710-202004

sub16100-39616¥9,500

main16100-39616i8GRFXS..GVF5#¥9,500202004-202509

main16100-79505iV35AFTS..VXFA55¥10,000201712-202410

16100BPIN, RING(FOR WATER PUMP SET)

main90253-13017i8GRFKS..GSF50¥140201710-202410

16173PULLEY, WATER PUMP

main16173-31030i8GRFKS..GSF50¥3,960201710-202003

sub16173-31031¥3,000

main16173-31031i8GRFKS..GSF50¥3,000202004-202410

main16173-31040i8GRFXS..GVF5#¥3,960201710-202003

sub16173-31041¥3,960

main16173-31041i8GRFXS..GVF5#¥3,960202004-202012

sub16173-31042¥3,000

main16173-31042i8GRFXS..GVF5#¥3,000202101-202509

main16173-70020iV35AFTS..VXFA55¥4,220201712-202002

sub16173-70021¥3,190

main16173-70021iV35AFTS..VXFA55¥3,190202003-202410

16193ABOLT(FOR WATER PUMP COVER)

main16193-31080i8GR#..GSF50,GVF5#¥210201710-202509

16271GASKET, WATER PUMP

main16271-31050i8GRFKS..GSF50¥1,740201710-202509

main16271-70010iV35AFTS..VXFA55¥370201712-202410

NO.1:REFER ILLUST.

main16271-70020iV35AFTS..VXFA55¥370201712-202410

NO.2:REFER ILLUST.

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-31050i8GRFKS..GSF50¥4,760201710-202410

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31110i8GRFKS..GSF50201710-202410

main16620-70020iV35AFTS..VXFA55¥15,200201712-202410

9155281035

main91552-81035¥120

9155281050

main91552-81050¥120

9155281070

main91552-81070¥160

9167180816

main91671-80816¥80

12 parts on this diagram · 3 diagrams in section
