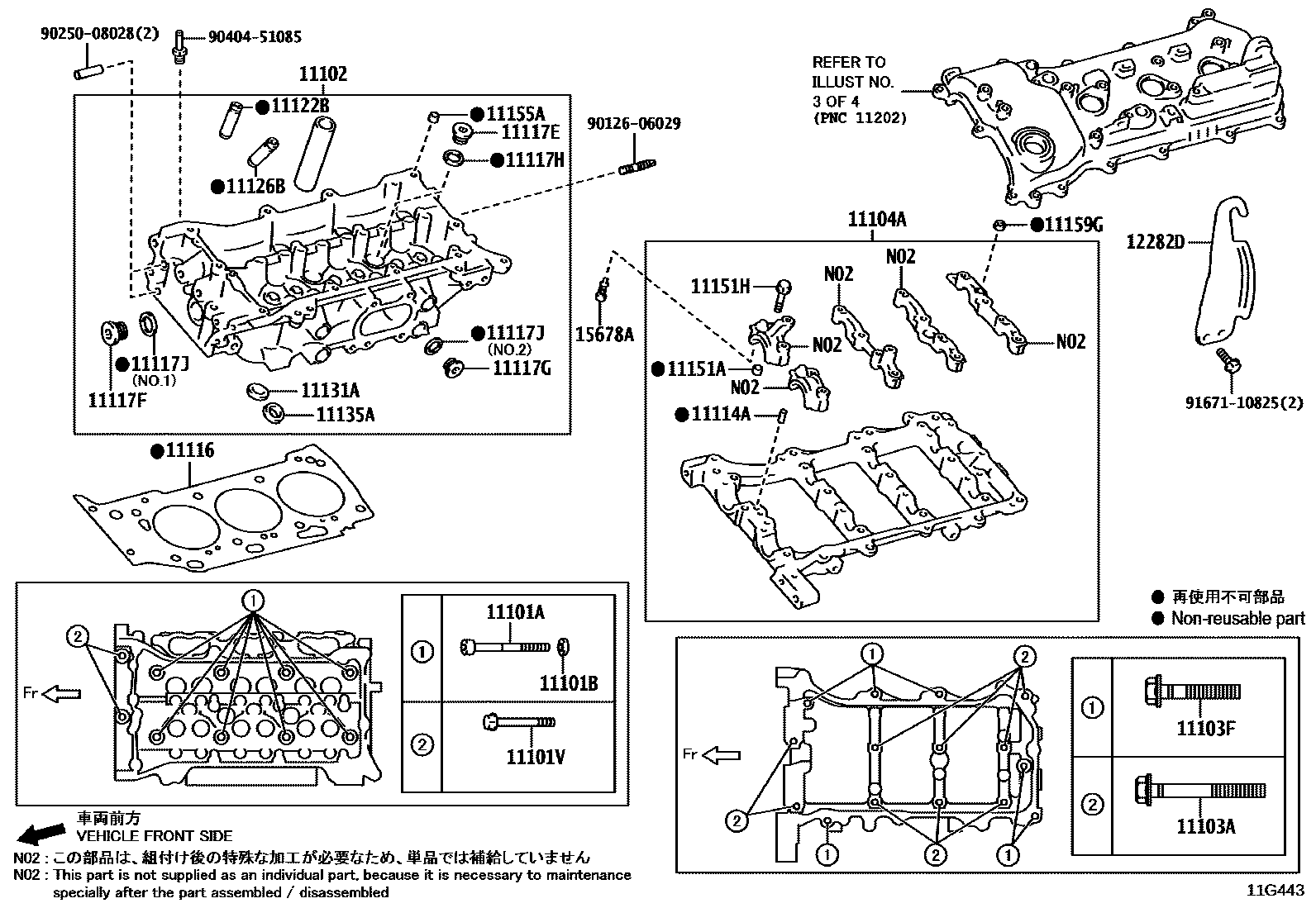

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101VBOLT(FOR CYLINDER HEAD SET SUB)
11103ABOLT(FOR CAMSHAFT HOUSING SET)
11103FBOLT(FOR CAMSHAFT HOUSING SET)
11104AHOUSING SUB-ASSY, CAMSHAFT, LH
11114APIN, STRAIGHT
L=13.8,OD=5.0
11116GASKET, CYLINDER HEAD, NO.2
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
NO.2
NO.1
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11122BBUSH, INTAKE VALVE GUIDE, NO.2
STD
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
11131SEAT, INTAKE VALVE
STD
O/S 0.03
11131ASEAT, INTAKE VALVE, NO.2
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
11135ASEAT, EXHAUST VALVE, NO.2
STD
O/S 0.03
11151PIN, RING(FOR CAMSHAFT BEARING CAP SETTING RH)
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
11155APIN, RING W/HEAD
11159GGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
15678AFILTER, OIL CONTROL VALVE
9012606029
main90126-06029
9025008028
main90250-08028
9040451085
main90404-51085
9167110825
main91671-10825
34 parts on this diagram · 8 diagrams in section
