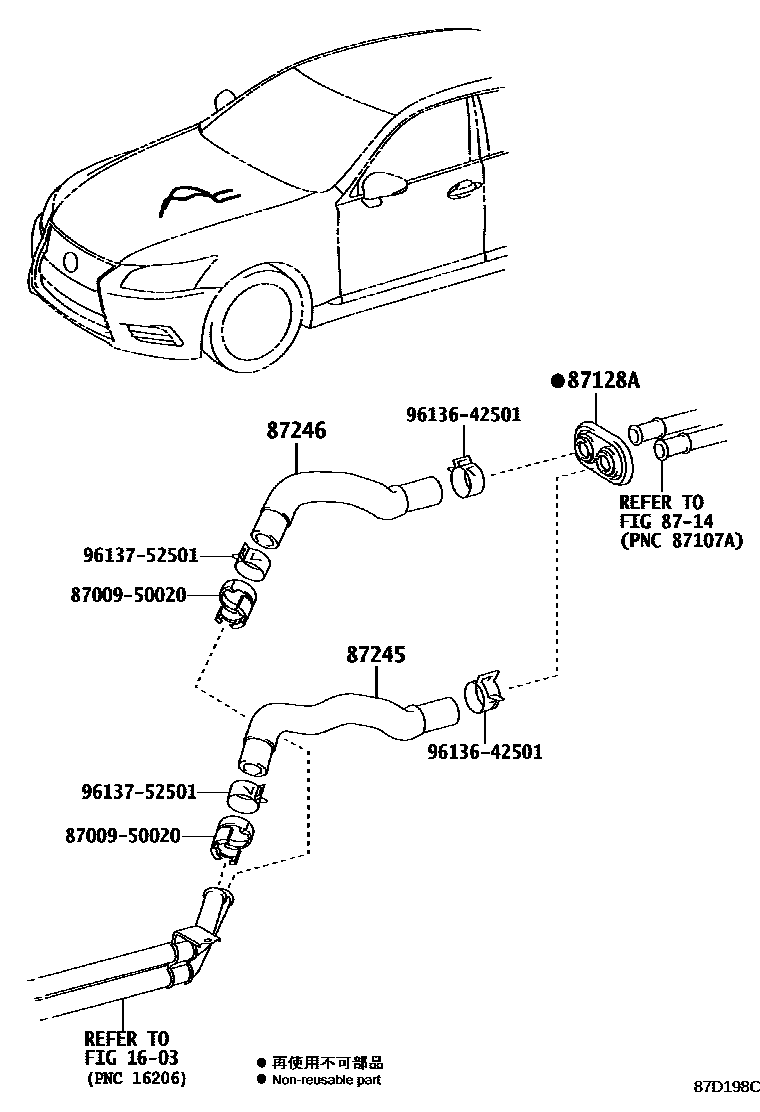

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603

87128AGROMMET, HEATER

main87128-30060iUSF4#201503

main87128-35020iUSF4#201209-201502

8714

87245HOSE, HEATER WATER, INLET

main87245-50370iUSF40,41¥1,580201209

main87245-50440iUSF45,46¥1,710201209

87246HOSE, HEATER WATER, OUTLET

main87245-50380iUSF40,41¥1,420201209

main87245-50450iUSF45,46¥1,560201209

8700950020HOSE SET, WATER, NO.1

main87009-50020¥290

9613642501

main96136-42501¥200

9613752501

main96137-52501¥240

8 parts on this diagram · 2 diagrams in section
