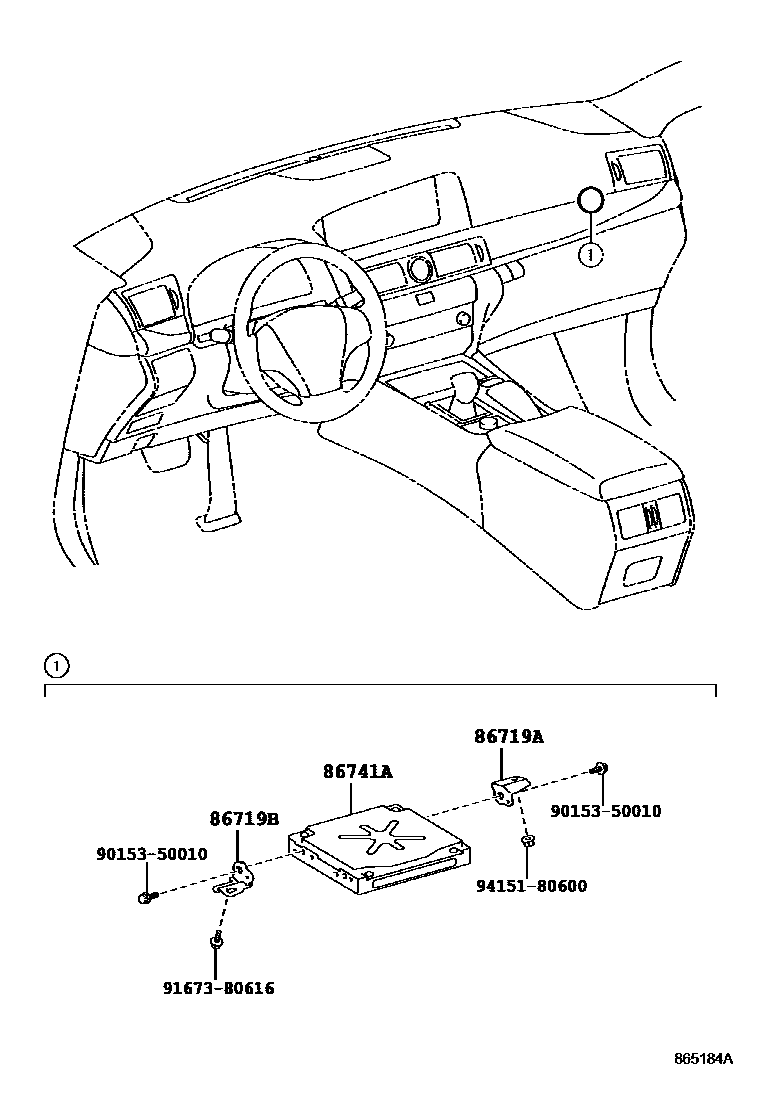

TELEPHONE & MAYDAY

0001 1CHINA SPEC 0002 1BRAZIL SPEC 0003 1RUSSIA ERAGLONASS

86719ABRACKET, TELEPHONE NO.1

main86719-50300iUSF41,46..CHI201209-201311

main86719-50301iUSF41,46..CHI201311

86719BBRACKET, TELEPHONE NO.2

main86719-50310iUSF41,46..CHI201209-201311

main86719-50311iUSF41,46..CHI201311

86741ATRANSCEIVER, TELEMATICS

main86741-30071iUSF41,46..CHI201209-201301

sub86741-30072

main86741-30072iUSF41,46..CHI201302-201410

main86741-53094iUSF41,46..CHI201410-201708

9015350010

main90153-50010

9167380616

main91673-80616

9415180600

main94151-80600

6 parts on this diagram · 3 diagrams in section
