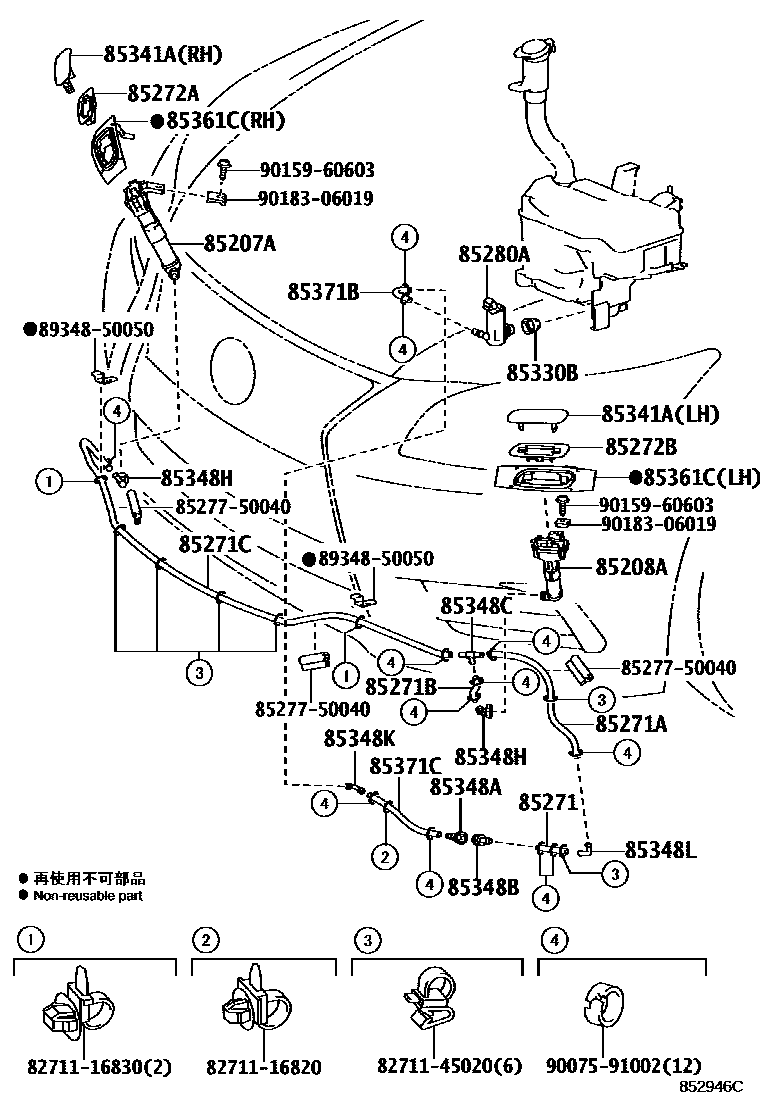

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
L=50
85271AHOSE, HEADLAMP CLEANER, NO.2
L=400
85271BHOSE, HEADLAMP CLEANER, NO.3
L=80
85271CHOSE, HEADLAMP CLEANER, NO.4
L=1700
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE
WHITE PEARL CS.,077,RH
SONIC QUARTZ,085,RH
MERCURY GRAY MC.,1H9,RH
SONIC SILVER,1J2,RH
SONIC TITANIUM,1J7,RH
BLACK,212,RH
BLACK OPAL MC.,214,RH
STARLIGHT BLACK GF.,217,RH
GRAPHITE BLACK GF.,223,RH
RED MC.CS.,3R1,RH
SLEEK ECRU ME.,4U7,RH
FIRE AGATE M.M.,4V3,RH
AMBER CS.,4X2,RH
DEEP BLUE MC.,8X5,RH
RH,UNPAINTED
WHITE PEARL CS.,077,LH
SONIC QUARTZ,085,LH
MERCURY GRAY MC.,1H9,LH
SONIC SILVER,1J2,LH
SONIC TITANIUM,1J7,LH
BLACK,212,LH
BLACK OPAL MC.,214,LH
STARLIGHT BLACK GF.,217,LH
GRAPHITE BLACK GF.,223,LH
RED MC.CS.,3R1,LH
SLEEK ECRU ME.,4U7,LH
FIRE AGATE M.M.,4V3,LH
AMBER CS.,4X2,LH
DEEP BLUE MC.,8X5,LH
LH,UNPAINTED
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85371BHOSE, HEADLAMP CLEANER (FROM MOTOR TO JOINT)
L=80
85371CHOSE, HEADLAMP CLEANER, NO.1
L=180
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
8271145020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-45020
8527750040HOSE, HEADLAMP CLEANER, C
main85277-50040
8934850050RETAINER, ULTRASONIC SENSOR, NO.1
main89348-50050
9007591002
main90075-91002
9015960603
main90159-60603
9018306019
main90183-06019
28 parts on this diagram · 2 diagrams in section
