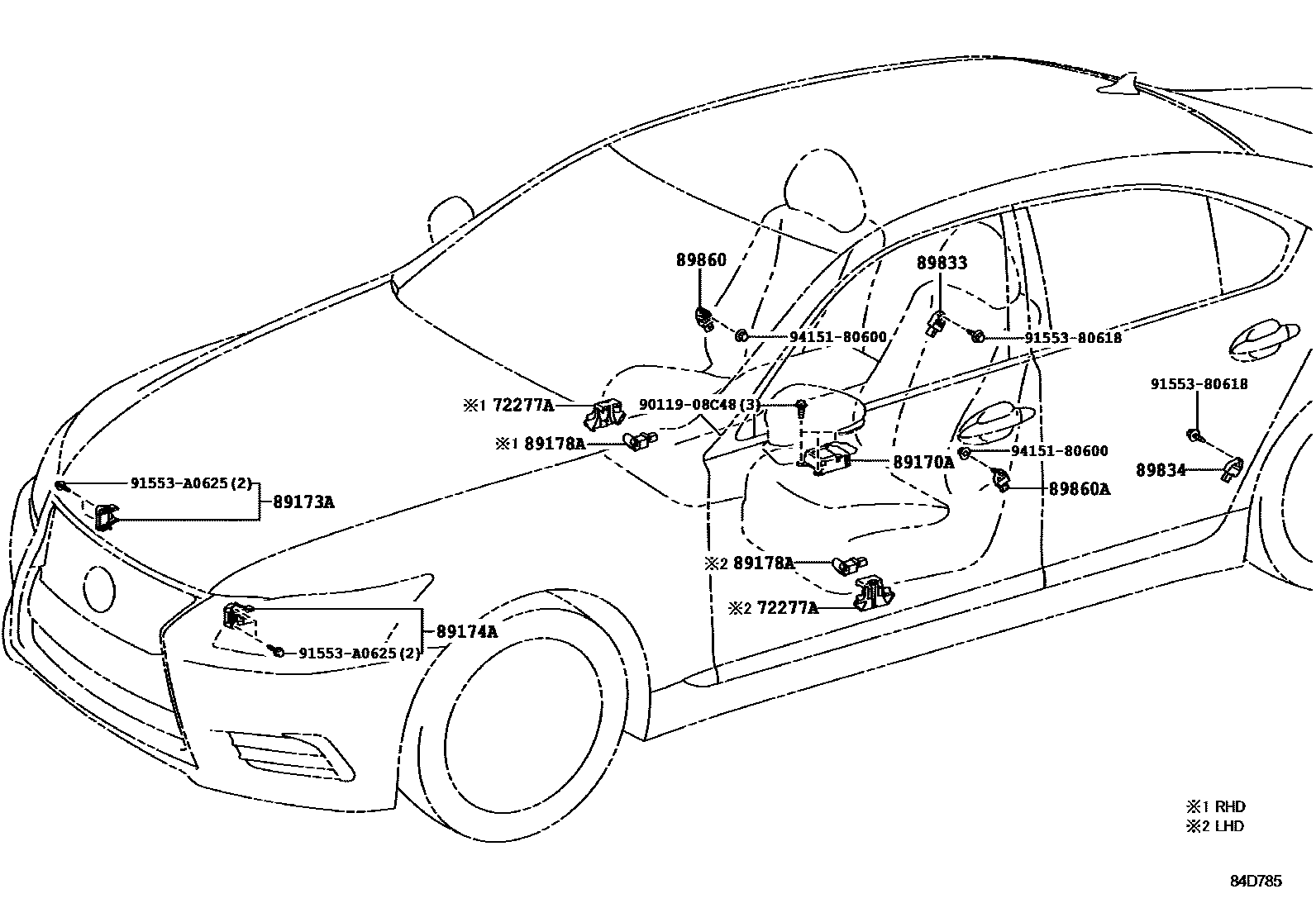

AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021iUSF46..CHI201209-201407

89170ACOMPUTER ASSY, AIRBAG

main89170-50740iUSF41..RHD201209

main89170-50F90iUSF40..LHD..EUR201309

TAIWAN SPEC&F SPORT

main89170-50F90iUSF40..GCC201209

main89170-50G00iUSF46..CHI201209-201410

main89170-50G00iUSF41..HTWC;USF41..D4..(CHI,GCC)201209

LATIN AMERICA SPEC&VERSION L

main89170-50G00iUSF41..HTWC;USF41..D4..(CHI,GCC)201209

VERSION L

main89170-50G00iUSF41..LHD..D4..EUR201209-201309

TAIWAN SPEC&VERSION L

main89170-50G20iUSF40,45..LHD..EUR201209

main89170-50G30iUSF46..EUR201209

VERSION L

main89170-50G60iUSF40..RHD201209

main89170-50J20iUSF46..CHI201410

89173ASENSOR, AIRBAG, FRONT RH

main89173-39375iUSF4#201209

89174ASENSOR, AIRBAG, FRONT LH

main89173-39375iUSF4#201209

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iUSF46..CHI201209-201407

89833SENSOR, AIRBAG, REAR RH

main89831-28010iUSF4#201209

89834SENSOR, AIRBAG, REAR LH

main89831-28010iUSF4#201209

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-33010iUSF4#201209

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-33010iUSF4#201209

9011908C48

main90119-08C48

9155380618

main91553-80618

91553A0625

main91553-A0625

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section
