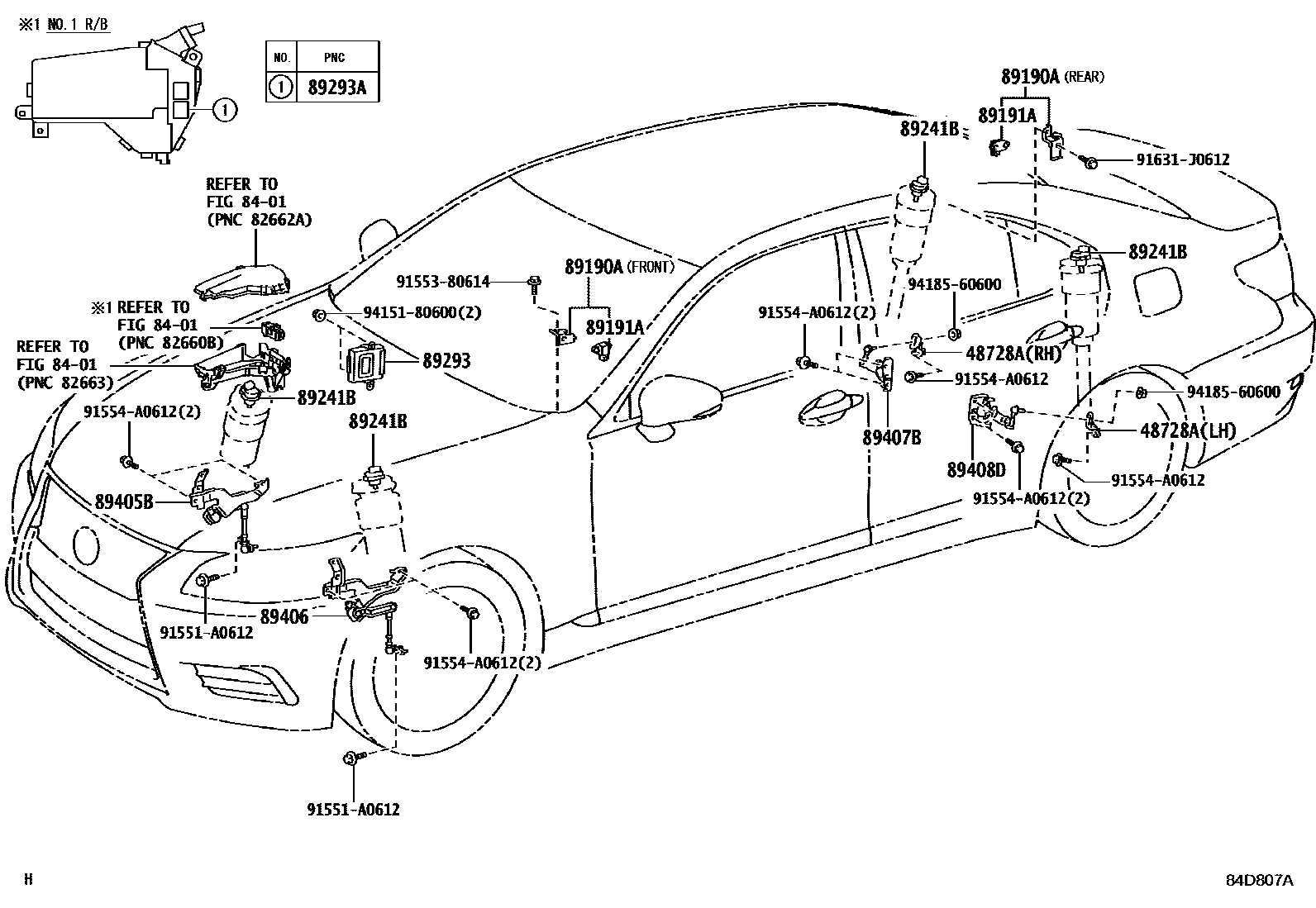

ELECTRONIC MODULATED SUSPENSION

0001 1 0002 1 0003 1

48728ABRACKET, LOAD SENSING VALVE SENSOR

main48728-50010iUSF41..HTWC..EUR201209-201708

SUSPENSION-AIR SUSPENTION,RH

main48728-50010iUSF41..LHD..D4..EUR201209-201708

RH

main48728-50010iUSF45,46201209-201708

REAR RH

main48728-50010iUSF45,46201209-201708

VERSION L,RH

main48728-50020iUSF45,46201209-201708

LH

main48728-50020iUSF45,46201209-201708

REAR LH

main48728-50020iUSF45,46201209-201708

VERSION L,LH

main48728-50020iUSF45,46201209-201708

SUSPENSION-AIR SUSPENTION,LH

main48728-50030iUSF45,46201209-201708

FRONT RH

main48728-50040iUSF45,46201209-201708

FRONT LH

8401

89190ASENSOR ASSY, ACCELERATION

main89190-30050iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209-201309

REAR

main89190-30050iUSF40..GCC201209

VERSION L,REAR

main89190-30050iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION,REAR

main89190-50011iUSF40..RHD201209

FRONT

main89190-50011iUSF40,41..RHD201209

SUSPENSION-COIL SPRING,FRONT

main89190-50021iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT),FRONT

main89190-50021iUSF41..LHD..D4..EUR201209-201309

FRONT

main89190-50021iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC,FRONT

main89190-50021iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L,FRONT

main89190-50021iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT),FRONT

main89190-50021iUSF41..D4..(CHI,GCC);USF40,45,46..LHD..(CHI,EUR)201209

VERSION L,FRONT

main89190-50021iUSF41..D4..(CHI,GCC);USF40,45,46..LHD..(CHI,EUR)201209

SUSPENSION-AIR SUSPENTION,FRONT

89191ASENSOR, ACCELERATION

main89191-22020iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main89191-22020iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main89191-22020iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main89191-22020iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main89191-22020iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

VERSION L

main89191-22020iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-COIL SPRING

main89191-22020iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION

89241BACTUATOR, ABSORBER CONTROL

main89241-30041iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main89241-30041iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main89241-30041iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main89241-30041iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main89241-30041iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

VERSION L

main89241-30041iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-COIL SPRING

main89241-30041iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION

89293COMPUTER, SUSPENSION CONTROL

main89293-50292iUSF40..RHD201209-201309

SUSPENSION-COIL SPRING

main89293-50293iUSF40,41..RHD201309-201410

SUSPENSION-COIL SPRING

main89293-50294iUSF40..RHD201410

SUSPENSION-COIL SPRING

main89293-50302iUSF41..LHD..D4;USF40,45,46..LHD..(CHI,EUR)201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main89293-50302iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main89293-50302iUSF41..LHD..D4..EUR201209-201309

VERSION L

main89293-50302iUSF41..LHD..D4..EUR201209-201309

SUSPENSION-AIR SUSPENTION

main89293-50302iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main89293-50302iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main89293-50303iUSF41..D4..(CHI,GCC);USF40,45,46..LHD..(CHI,EUR)201309-201410

EXECUTIVE PACKAGE(5SEAT)

main89293-50303iUSF41..D4..(CHI,GCC);USF40,45,46..LHD..(CHI,EUR)201309-201410

SUSPENSION-AIR SUSPENTION

main89293-50303iUSF40..GCC;USF41..LHD..D4..EUR201309-201410

VERSION L

main89293-50303iUSF40..GCC;USF41..LHD..D4..EUR201309-201410

EXECUTIVE PACKAGE(4SEAT)

main89293-50304iUSF40..GCC;USF41..LHD..D4..EUR201410

SUSPENSION-AIR SUSPENTION

main89293-50304iUSF41..D4..(CHI,GCC);USF40,45,46..LHD..(CHI,EUR)201410

VERSION L

main89293-50304iUSF41..D4..(CHI,GCC);USF40,45,46..LHD..(CHI,EUR)201410

EXECUTIVE PACKAGE(4SEAT)

main89293-50304iUSF41..D4..(CHI,GCC);USF40,45,46..LHD..(CHI,EUR)201410

EXECUTIVE PACKAGE(5SEAT)

89293ARELAY, SUSPENSION CONTROL

main90987-02025iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC

main90987-02025iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&VERSION L

main90987-02025iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main90987-02025iUSF41..LHD..D4..EUR201209-201309

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main90987-02025iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209-201708

VERSION L

main90987-02025iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209-201708

SUSPENSION-COIL SPRING

main90987-02025iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209-201708

SUSPENSION-AIR SUSPENTION

89405BSENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH

main89405-50070iUSF41..LHD..D4..EUR201209-201309

main89405-50070iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201708

VERSION L

main89405-50070iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209-201708

SUSPENSION-AIR SUSPENTION

main89405-50100iUSF45,46201209-201708

89406SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH

main89406-50100iUSF41..LHD..D4..EUR201209-201309

main89406-50100iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209

VERSION L

main89406-50100iUSF40..EUR;USF41..RHD;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION

main89406-50130iUSF45,46201209

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-50070iUSF41..LHD..D4..EUR201209-201309

main89407-50070iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

VERSION L

main89407-50070iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-50070iUSF41..LHD..D4..EUR201209-201309

main89408-50070iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

VERSION L

main89408-50070iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)201209

SUSPENSION-AIR SUSPENTION

91551A0612

main91551-A0612

9155380614

main91553-80614

91554A0612

main91554-A0612

91631J0612

main91631-J0612

9415180600

main94151-80600

9418560600

main94185-60600

17 parts on this diagram · 3 diagrams in section
