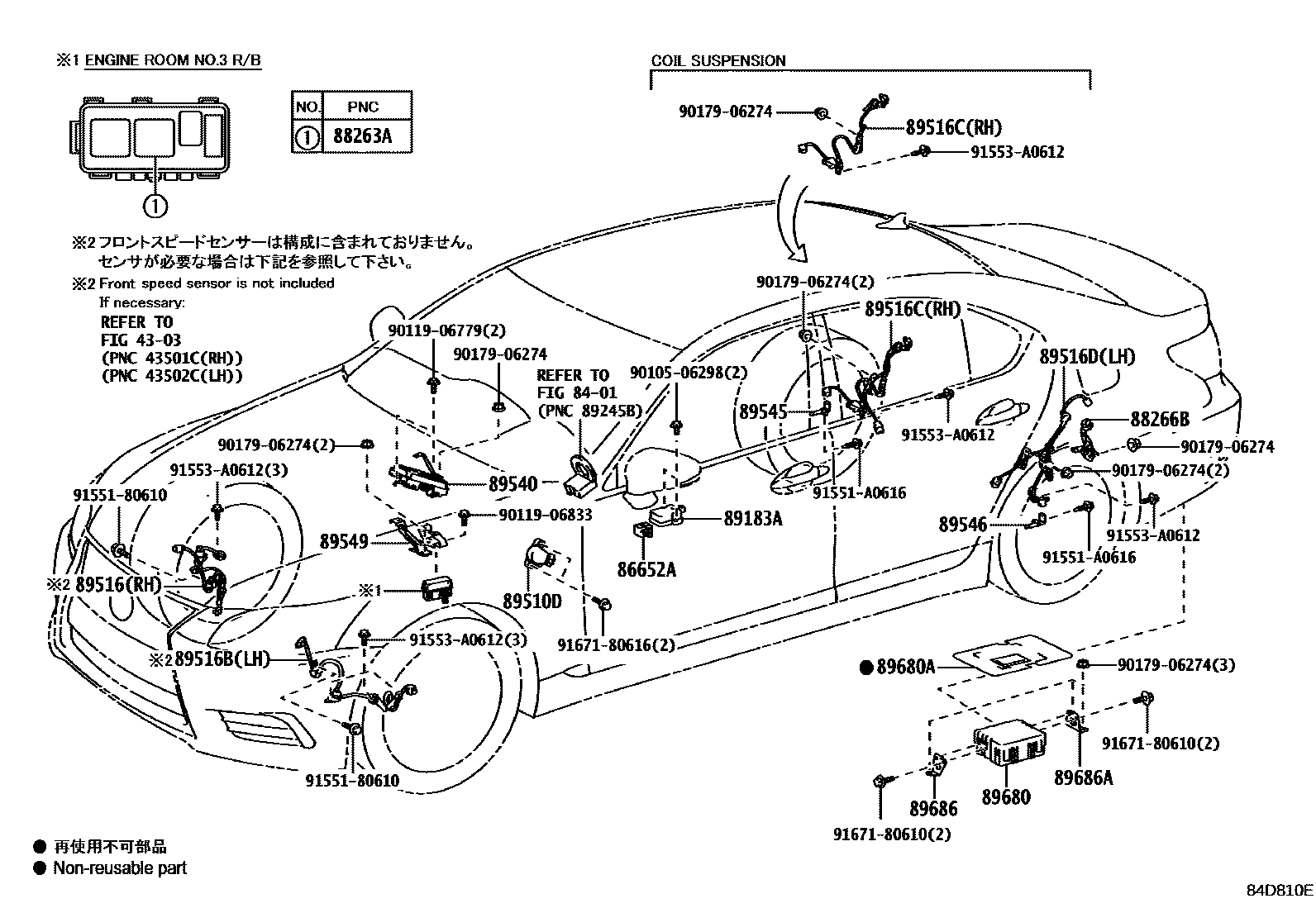

ABS & VSC

0001 1 0002 1 0003 1

4303

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iUSF4#¥2,400201209

88263ARELAY, SKID CONTROL

main88263-21010iUSF4#¥2,740201209-201708

88266BCLAMP, SKID CONTROL SENSOR, NO.1

main88266-50600iUSF4#¥750201209

89183ASENSOR, YAWRATE

main89183-50030iUSF4#¥99,500201209

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33020iUSF41..RHD¥7,900201209-201401

main89510-33030iUSF4#..LHD¥7,900201209

89516WIRE, SKID CONTROL SENSOR

main89516-50140iUSF45,46¥7,600201209

main89516-50170iUSF40,41¥4,960201209

89516BWIRE, SKID CONTROL SENSOR

main89516-50130iUSF45,46¥7,600201209

main89516-50160iUSF40,41¥4,960201209

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-50180iUSF41..LHD..D4..EUR201309-201708

PHILIPPINES,VIETNAM SPEC&VERSION L

main89516-50180iUSF40..GCC;USF41..HTWC201209-201708

SUSPENSION-COIL SPRING

main89516-50180iUSF41..LHD..D4..EUR201309-201708

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)

main89516-50180iUSF41..LHD..D4..EUR201309-201708

PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)

main89516-50190iUSF41..HTWC..EUR¥6,200201209-201708

SUSPENSION-AIR SUSPENTION

main89516-50190iUSF41..RHD;USF40,45,46..CHI,EUR;USF41..D4..(CHI,GCC)¥6,200201209-201708

VERSION L

main89516-50190iUSF41..LHD..D4..EUR¥6,200201209-201309

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-50150iUSF4#¥6,200201209

89540COMPUTER ASSY, SKID CONTROL

main895B0-50010iUSF41..LHD..D4..EUR201209-201410

sub895B0-50B00

main895B0-50011iUSF41..LHD..D4..EUR201410

sub895B0-50800

main895B0-50030iUSF40,41..GCC¥257,000201209-201410

sub895B0-50B20

main895B0-50030iUSF41..HTWC..EUR¥257,000201209-201401

PHILIPPINES,VIETNAM SPEC

sub895B0-50B20

main895B0-50031iUSF40..LHD;USF41..HTWC;USF41..D4..(CHI,GCC)201410

PHILIPPINES,VIETNAM SPEC

sub895B0-50820¥193,000

main895B0-50060iUSF45,46201209-201410

sub895B0-50B50

main895B0-50061iUSF45,46201410

sub895B0-50850

main895B0-50110iUSF41..RHD201209-201410

sub895B0-50B90

main895B0-50111iUSF40,41..RHD201410

sub895B0-50890

main895B0-50150iUSF40..RHD201403-201410

SOUTH AFRICA SPEC

sub895B0-50B90

main895B0-50150iUSF40..RHD201403-201410

SOUTHEAST ASIA SPEC

sub895B0-50B90

main895B0-50150iUSF40..RHD201403-201410

MOROCCO SPEC

sub895B0-50B90

main895B0-50150iUSF40..RHD201403-201410

AUSTRALIA,NEW ZEALAND SPEC

sub895B0-50B90

main895B0-50150iUSF40..RHD201403-201410

THAILAND SPEC

sub895B0-50B90

main895B0-50270iUSF41..LHD..D4..EUR201401-201410

LATIN AMERICA SPEC&VERSION L

sub895B0-50B20

main895B0-50270iUSF41..CHI201308-201410

sub895B0-50B20

main895B0-50270iUSF41..HTWC..EUR201401-201410

PHILIPPINES,VIETNAM SPEC

sub895B0-50B20

89545SENSOR, SPEED, REAR RH

main89545-30070iUSF4#¥13,600201209-201708

89546SENSOR, SPEED, REAR LH

main89546-30070iUSF4#¥13,600201209-201708

89549BRACKET, SKID CONTROL COMPUTER

main88269-50070iUSF41..RHD¥1,700201209-201401

main88269-50090iUSF4#..LHD¥2,240201209

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-33010iUSF4#¥62,100201209

89680ACOVER, BRAKE CONTROL POWER SUPPLY

mainF197150020iUSF4#201209

89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-50010iUSF4#¥540201209

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-50020iUSF4#¥700201209

9010506298

main90105-06298¥60

9011906779

main90119-06779¥60

9011906833

main90119-06833¥60

9017906274

main90179-06274¥70

9155180610

main91551-80610¥60

91551A0616

main91551-A0616¥60

91553A0612

main91553-A0612¥60

9167180610

main91671-80610¥60

9167180616

main91671-80616¥60

28 parts on this diagram · 3 diagrams in section
