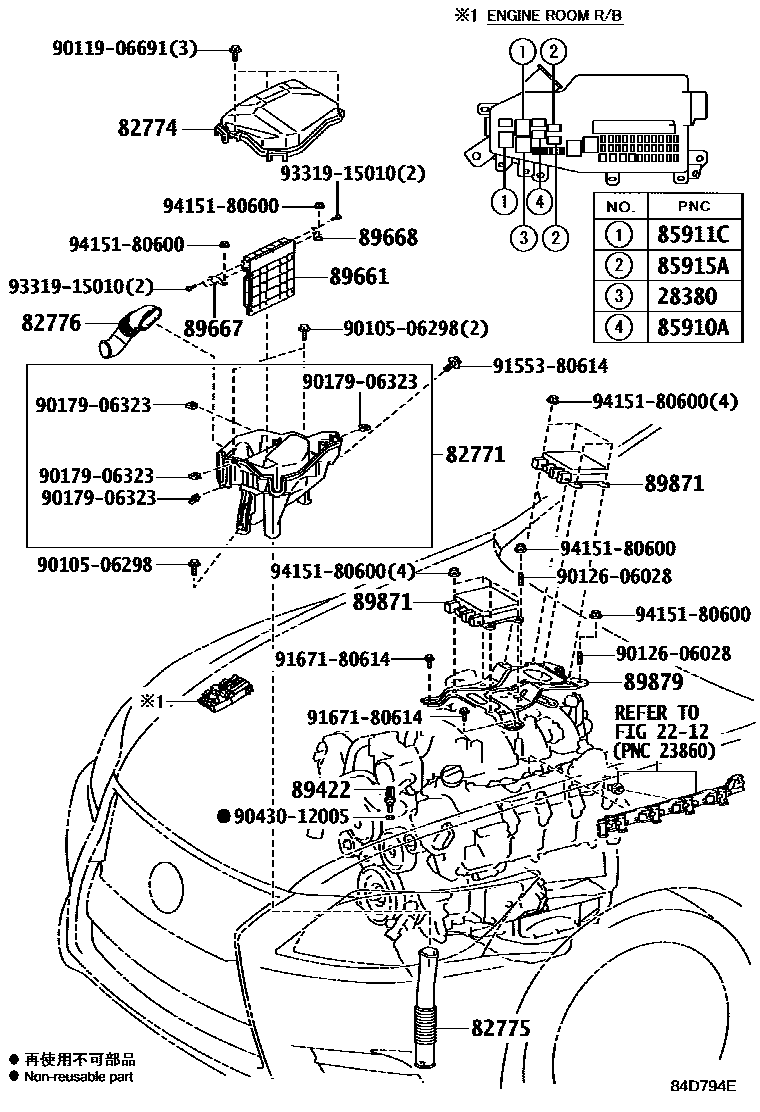

ELECTRONIC FUEL INJECTION SYSTEM
2212
28380RELAY ASSY, FUEL PUMP
82771BOX, ENGINE ROOM ECU
82774COVER, ENGINE ROOM ECU
82775DUCT, ENGINE ROOM ECU INLET
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85911CRELAY, EFI 2
85915ARELAY, MAIN
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
sub89661-50L11
PHILIPPINES,VIETNAM SPEC
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC&EXH.EMISSION CONTROL-EUROPE STEP5 WITHOUT(ONBOARD DIAGNOSIS)&INJECTOR CLEANER CORRESP.-WITH
sub89661-50M11
EXH.EMISSION CONTROL-EUROPE STEP5 WITH(ON BOARD DIAGNOSIS)&INJECTOR CLEANER CORRESP.-WITH
EXH.EMISSION CONTROL-EUROPE STEP5 WITH(ON BOARD DIAGNOSIS)&INJECTOR CLEANER CORRESP.-WITH
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89871DRIVER, INJECTOR
89879BRACKET, INJECTOR DRIVER
9010506298
main90105-06298
9011906691
main90119-06691
9012606028
main90126-06028
9017906323
main90179-06323
9043012005
main90430-12005
9155380614
main91553-80614
9167180614
main91671-80614
9331915010
main93319-15010
9415180600
main94151-80600
24 parts on this diagram · 1 diagram in section
