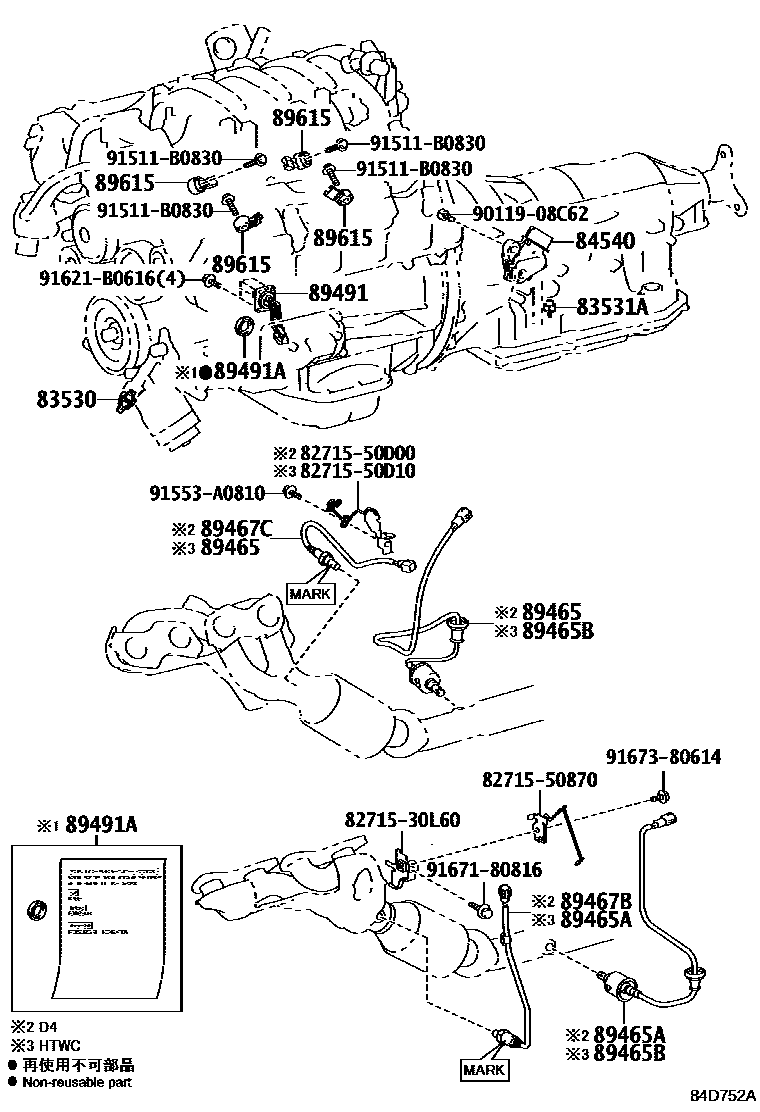

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 1/2 0005 1ENGINE ROOM 2/2 0006 1ENGINE ROOM 2/2 0007 1COWL 0008 1COWL 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1FRONT CONSOLE 0012 1FRONT CONSOLE 0013 1REAR CONSOLE 0014 1REAR CONSOLE 0015 1STEERING 0016 1FRONT SEAT 0017 1REAR SEAT 0018 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-60020iUSF4#201209

83531ASWITCH, OIL PRESSURE

main83531-50010iUSF4#201209-201708

84540SWITCH ASSY, NEUTRAL START

main84540-71010iUSF4#201209-201708

89465SENSOR, OXYGEN

main89465-50170iUSF4#..D4201209

main89465-50220iUSF41..HTWC201209

89465ASENSOR, OXYGEN NO.2

main89465-50170iUSF40,41..D4201209

main89465-50210iUSF41..HTWC201209

main89465-50230iUSF45,46201209

89465BSENSOR, OXYGEN NO.3

main89465-50170×2iUSF41..HTWC201209

89467BSENSOR, AIR FUEL RATIO

main89467-50050iUSF40,41..D4201209

main89467-53030iUSF45,46201209

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-50060iUSF40,41..D4201209

main89467-53030iUSF45,46201209

89491SENSOR, ENGINE OIL LEVEL

main89491-50041iUSF40,41201209

main89491-50050iUSF45,46201209

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iUSF4#201209

89615SENSOR, KNOCK CONTROL

main89615-20090×4iUSF4#201209

8271530L60BRACKET,WIRING HARNESS CLAMP

main82715-30L60

8271550870BRACKET,WIRING HARNESS CLAMP

main82715-50870

8271550D00BRACKET,WIRING HARNESS CLAMP

main82715-50D00

8271550D10BRACKET,WIRING HARNESS CLAMP

main82715-50D10

9011908C62

main90119-08C62

91511B0830

main91511-B0830

91553A0810

main91553-A0810

91621B0616

main91621-B0616

9167180816

main91671-80816

9167380614

main91673-80614

21 parts on this diagram · 18 diagrams in section
