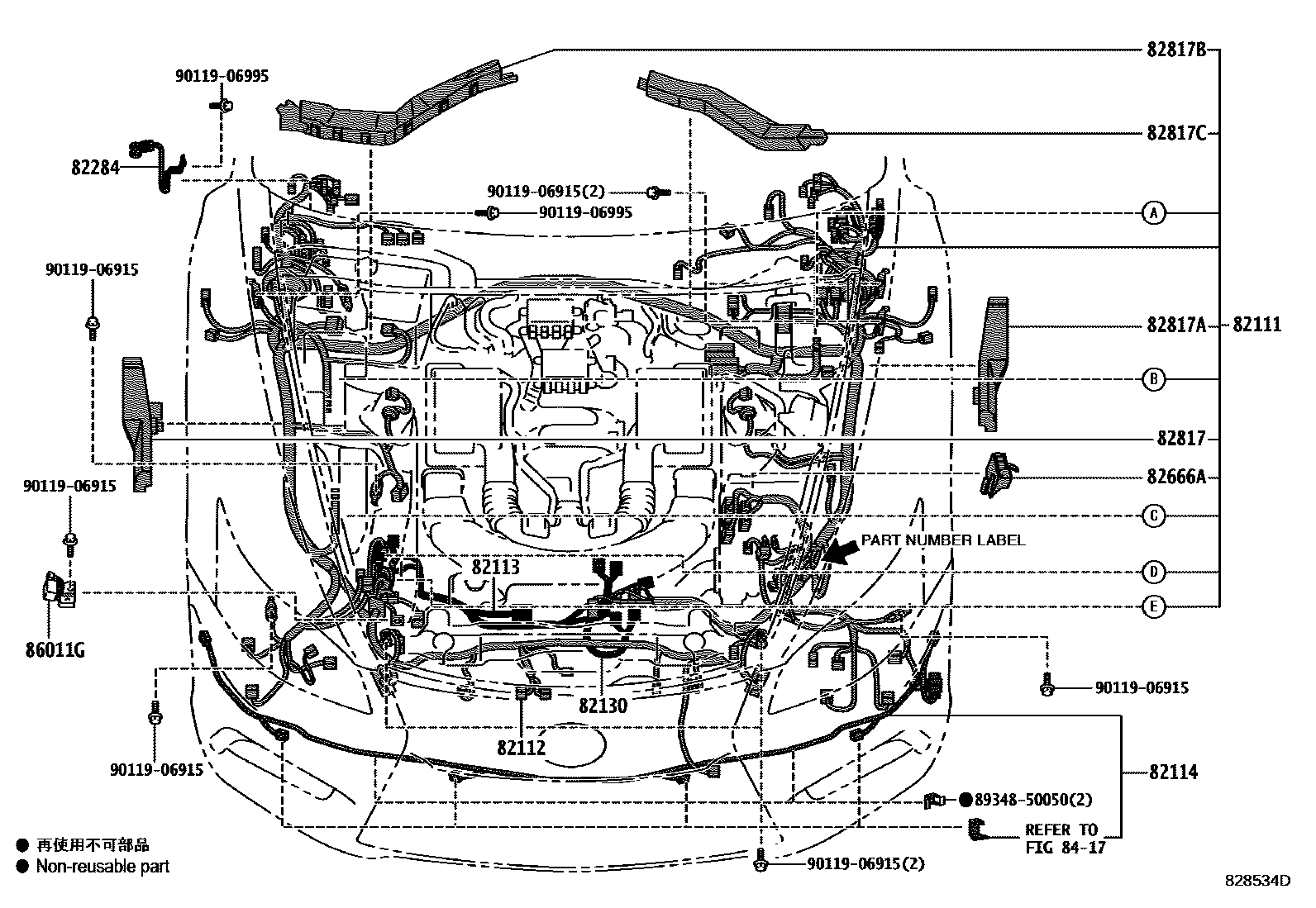

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)
PHILIPPINES,VIETNAM SPEC&VERSION L
PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)
PHILIPPINES,VIETNAM SPEC
PHILIPPINES,VIETNAM SPEC
PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(5SEAT)
PHILIPPINES,VIETNAM SPEC&VERSION L
PHILIPPINES,VIETNAM SPEC&EXECUTIVE PACKAGE(4SEAT)
SUSPENSION-AIR SUSPENTION
VERSION L
F SPORT
VERSION L
SUSPENSION-AIR SUSPENTION
EXECUTIVE PACKAGE(5SEAT)
F SPORT
SUSPENSION-AIR SUSPENTION
VERSION L
EXECUTIVE PACKAGE(4SEAT)
82112WIRE, ENGINE ROOM, NO.2
82113WIRE, ENGINE ROOM, NO.3
82114WIRE, ENGINE ROOM, NO.4
82130HARNESS ASSY, CHASSIS WIRE
SUSPENSION-AIR SUSPENTION&TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE
VERSION L&SUSPENSION-AIR SUSPENTION&TIRE & DISC WHEEL-245/45R19 8J SUMMER TIRE
VERSION L&SUSPENSION-AIR SUSPENTION&TIRE & DISC WHEEL-235/50R18 7.5J
SUSPENSION-AIR SUSPENTION
82666AHOLDER, CONNECTOR NO.2
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82817BPROTECTOR, WIRING HARNESS, NO.3
82817CPROTECTOR, WIRING HARNESS, NO.4
8417
86011GCONDENSER
8934850050RETAINER, ULTRASONIC SENSOR, NO.1
main89348-50050
9011906915
main90119-06915
9011906995
main90119-06995
16 parts on this diagram · 21 diagrams in section
