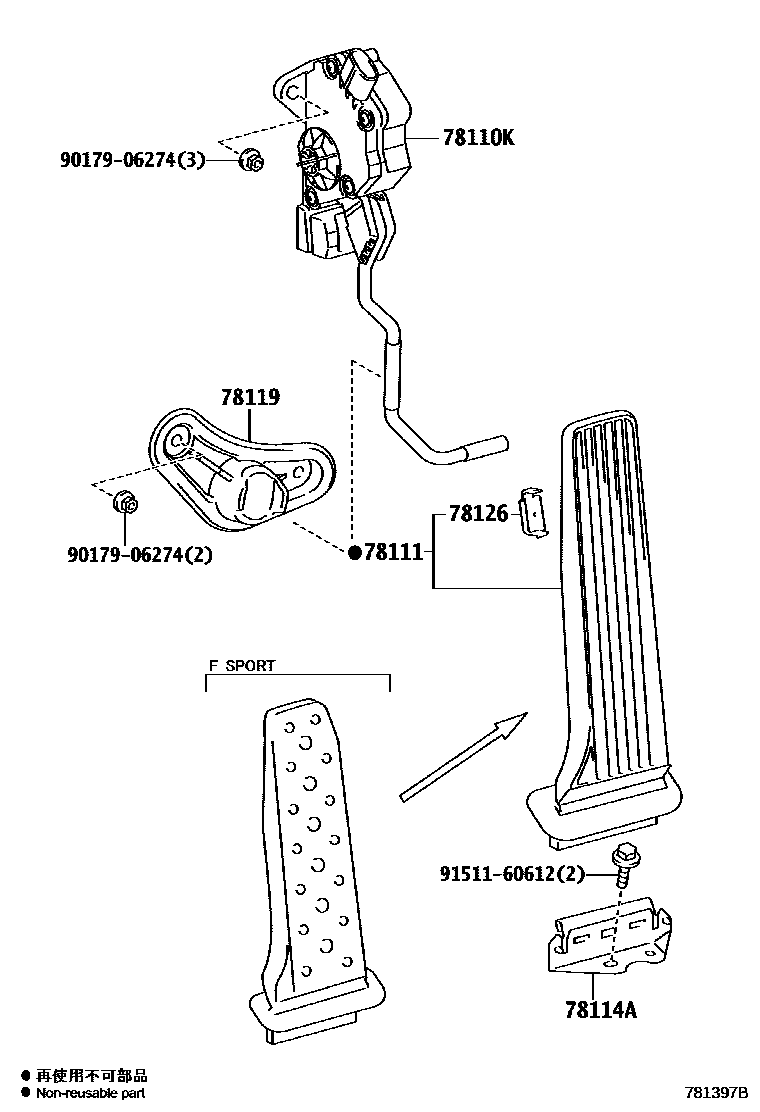

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-50030iUSF4#..LHD201209-201308

sub78110-50031

main78110-50031iUSF4#..LHD201309-201601

sub78110-50080

main78110-50040iUSF40,41..RHD201209-201308

sub78110-50041

main78110-50041iUSF40,41..RHD201309-201601

sub78110-50070

main78110-50070iUSF40,41..RHD201602

main78110-50080iUSF4#..LHD201602

78111PEDAL, ACCELERATOR

main78101-50030iUSF4#..LHD201309

main78101-50040iUSF40,41..RHD201309

main78111-30200iUSF4#201209-201309

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78108-50030iUSF4#..LHD201209-201309

main78108-50040iUSF40,41..RHD201209-201309

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-50070iUSF4#..LHD201209

main78119-50080iUSF40,41..RHD201209

78126BRACKET, ACCELERATOR PEDAL ROD

main78126-30060iUSF4#201209-201309

9017906274

main90179-06274

9151160612

main91511-60612

7 parts on this diagram · 4 diagrams in section
