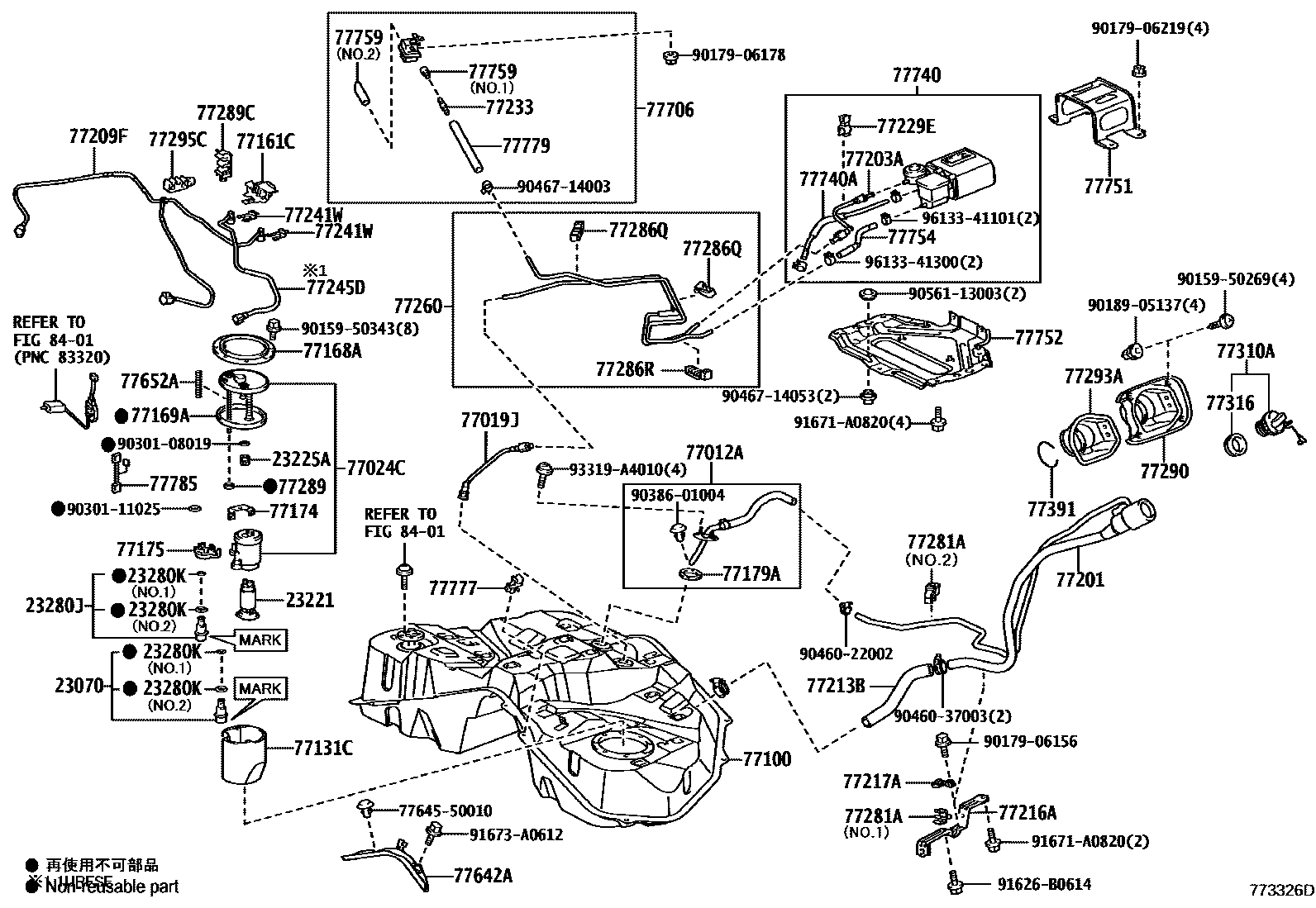

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
MARK 23070-38020
MARK 23070-38030
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
MARK 23280-38020
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER
77024CPLATE SUB-ASSY, FUEL SUCTION W/FUEL FILTER
77100TANK ASSY, FUEL
77131CSUB-TANK, FUEL, NO.1
77161CPROTECTOR, FUEL TANK, LOWER
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77175SUPPORT, FUEL SUCTION, NO.2
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
77203ATUBE SUB-ASSY, FUEL SUCTION
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77229ECLAMP, BREATHER TUBE
77233JOINT, FUEL HOSE
77241WCLIP, TUBE JOINT
77245DTUBE, FUEL TANK RETURN VENT
77260HOSE ASSY, FUEL MAIN
77286QCLAMP, FUEL TUBE, NO.9
77286RCLAMP, FUEL TUBE, NO.10
77289HOLDER, FUEL TANK PIPE SETTING
77289CCLAMP, FUEL TUBE, NO.4
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77295CGROMMET, FUEL TUBE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77642APROTECTOR, FUEL TANK, NO.2
77652ACUSHION, FUEL TANK, NO.2
77706FILTER SUB-ASSY, CHARCOAL CANISTER
77740CANISTER ASSY, CHARCOAL
77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77751BRACKET, CHARCOAL CANISTER BASE
77752BRACKET, CHARCOAL CANISTER SUPPORT
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
L=155
77777BRACKET, FUEL TUBE CLAMP
77779TUBE, CHARCOAL CANISTER OUTLET
77785HARNESS, FUEL PUMP
8401
7764550010PACKING, FUEL TANK BRACKET UPPER, B
9015950269
9015950343
9017906156
9017906178
9017906219
9018905137
9030108019
9030111025
9038601004
9046022002
9046037003
9046714003
9046714053
9056113003
91626B0614
91671A0820
91673A0612
93319A4010
9613341101
9613341300
72 parts on this diagram · 3 diagrams in section
