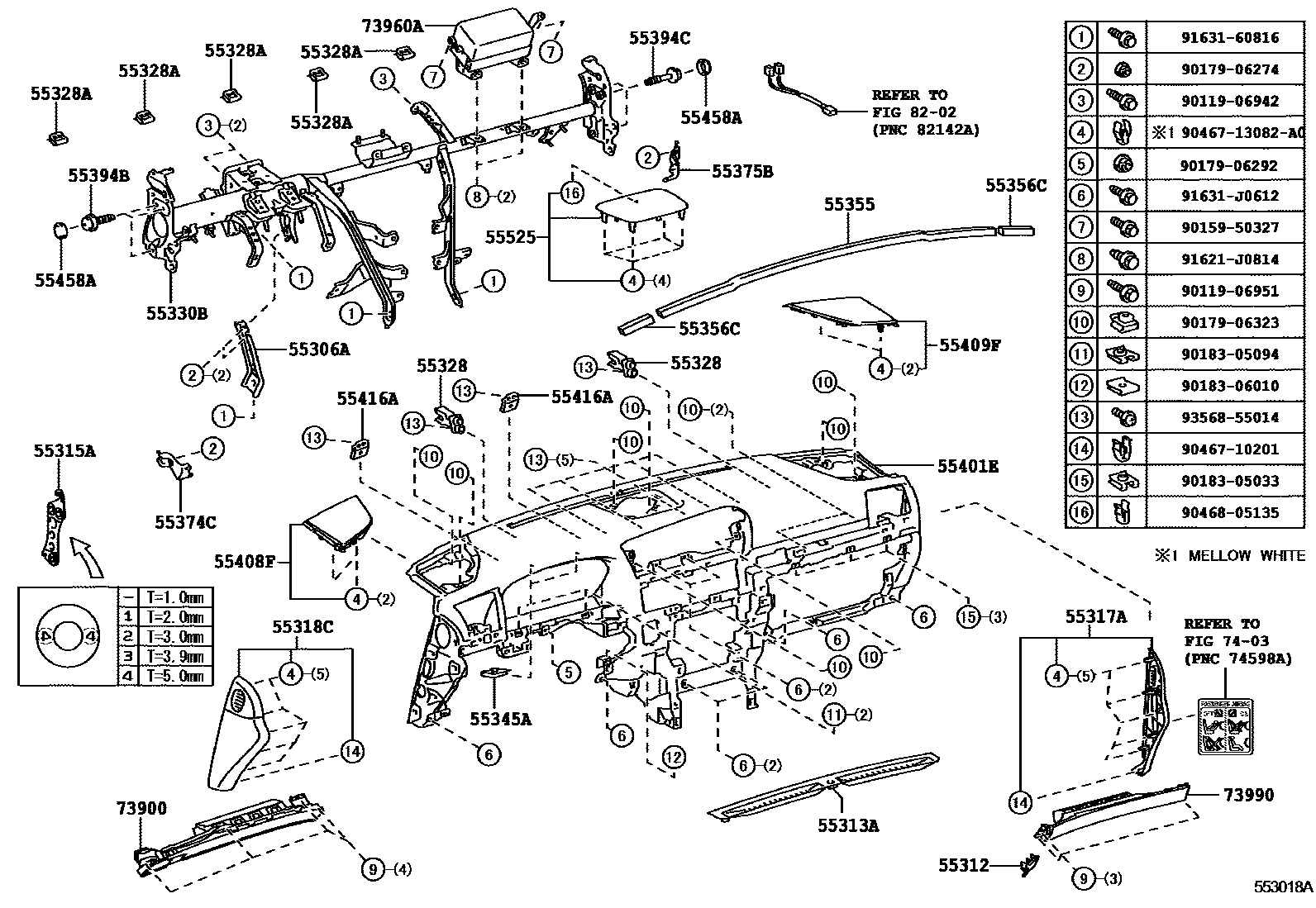

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55312PANEL, INSTRUMENT, LOWER
55313APANEL, INSTRUMENT MAIN
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM2#,4#,5#
BLACK,TRIM1#,2#,4#,5#
ORCHID BROWN,TRIM0#
55315ASPACER, INSTRUMENT PANEL, NO.1
T=1.0
T=2.0
T=3.0
T=3.9
T=5.0
T=1.0
T=2.0
T=3.0
T=3.9
T=5.0
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM1#,2#,4#,5#
ORCHID BROWN/MELLOW WHITE,TRIM00,02
ORCHID BROWN/IVORY,TRIM01
BLACK,TRIM10,2#,3#,40,41,50,51
BLACK,TRIM20,21,22,23,3#,40,41,50,51
BLACK,TRIM20,23,40,41,50,51
BLACK,TRIM20,23,24,40,41,50,51
BLACK,TRIM10,20,23,24,40,41,50,51
ORCHID BROWN/MELLOW WHITE,TRIM00,02,10,20,21,22,40,50
ORCHID BROWN/MELLOW WHITE,TRIM00,20,21,22,41,50
ORCHID BROWN/MELLOW WHITE,TRIM00,20,41,50
ORCHID BROWN/MELLOW WHITE,TRIM00,20,40,50
ORCHID BROWN/MELLOW WHITE,TRIM00,02,10,20,40,50
ORCHID BROWN/IVORY,TRIM01,04
ORCHID BROWN/IVORY,TRIM01
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM10,2#,3#,4#,5#
BLACK,TRIM20,21,22,23,3#,40,41,50,51
BLACK,TRIM20,23,40,41,50,51
BLACK,TRIM20,23,24,40,41,50,51
BLACK,TRIM10,20,23,24,40,41,50,51
ORCHID BROWN/MELLOW WHITE,TRIM00,02,10,20,21,22,40,50
ORCHID BROWN/MELLOW WHITE,TRIM00,20,21,22,41,50
ORCHID BROWN/MELLOW WHITE,TRIM00,20,41,50
ORCHID BROWN/MELLOW WHITE,TRIM00,20,40,50
ORCHID BROWN/MELLOW WHITE,TRIM00,02,10,20,40,50
ORCHID BROWN/IVORY,TRIM01,04
ORCHID BROWN/IVORY,TRIM01
BLACK,TRIM10,20,21,22,23,24,40,41,50,51
BLACK,TRIM10,20,23,24,40,41,50,51
ORCHID BROWN/MELLOW WHITE,TRIM00,01,02
ORCHID BROWN/IVORY,TRIM01,10,20,21,22,40,50
ORCHID BROWN/IVORY,TRIM01,10,20,40,50
55328PIN, INSTRUMENT PANEL, NO.1
55328ASTAY, INSTRUMENT PANEL, NO.3
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55345ACLIP, INSTRUMENT PANEL, NO.1
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55394BBOLT, INSTRUMENT PANEL
55394CBOLT, INSTRUMENT PANEL
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM1#,2#,4#,5#
sub55401-50913
BLACK,TRIM2#,4#,5#
sub55401-50913
BLACK,TRIM1#,2#,4#,5#
ORCHID BROWN,TRIM0#
BLACK,TRIM01,1#,2#,4#,5#
ORCHID BROWN,TRIM00,01,02
BLACK,TRIM2#,4#,5#
BLACK,TRIM1#,2#,4#,5#
ORCHID BROWN,TRIM0#
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM2#,4#,5#
BLACK,TRIM1#,2#,4#,5#
ORCHID BROWN,TRIM0#
BLACK,TRIM1#,2#,4#,5#
ORCHID BROWN,TRIM0#
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM2#,4#,5#
BLACK,TRIM1#,2#,4#,5#
ORCHID BROWN,TRIM0#
BLACK,TRIM1#,2#,4#,5#
ORCHID BROWN,TRIM0#
55416ARETAINER, METER HOOD, NO.1
55458ACAP, INSTRUMENT PANEL SAFETY PAD
55525COVER, SPEAKER HOLE, NO.1
BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM2#,3#,4#,5#
BLACK,TRIM2#,4#,5#
ORCHID BROWN,TRIM0#
BLACK,TRIM1#,2#,4#,5#
ORCHID BROWN,TRIM0#
73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1
MELLOW WHITE,TRIM00
MELLOW WHITE,TRIM00,02
IVORY,TRIM01
BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM2#,4#,5#
MELLOW WHITE,TRIM00,02
IVORY,TRIM01
BLACK,TRIM1#,2#,4#,5#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2
7403
8202
9011906942
9011906951
9015950327
9017906274
9017906292
9017906323
9018305033
9018305094
9018306010
9046710201
9046713082A0
main90467-13082A0
9046805135
91621J0814
9163160816
91631J0612
9356855014
43 parts on this diagram · 8 diagrams in section
