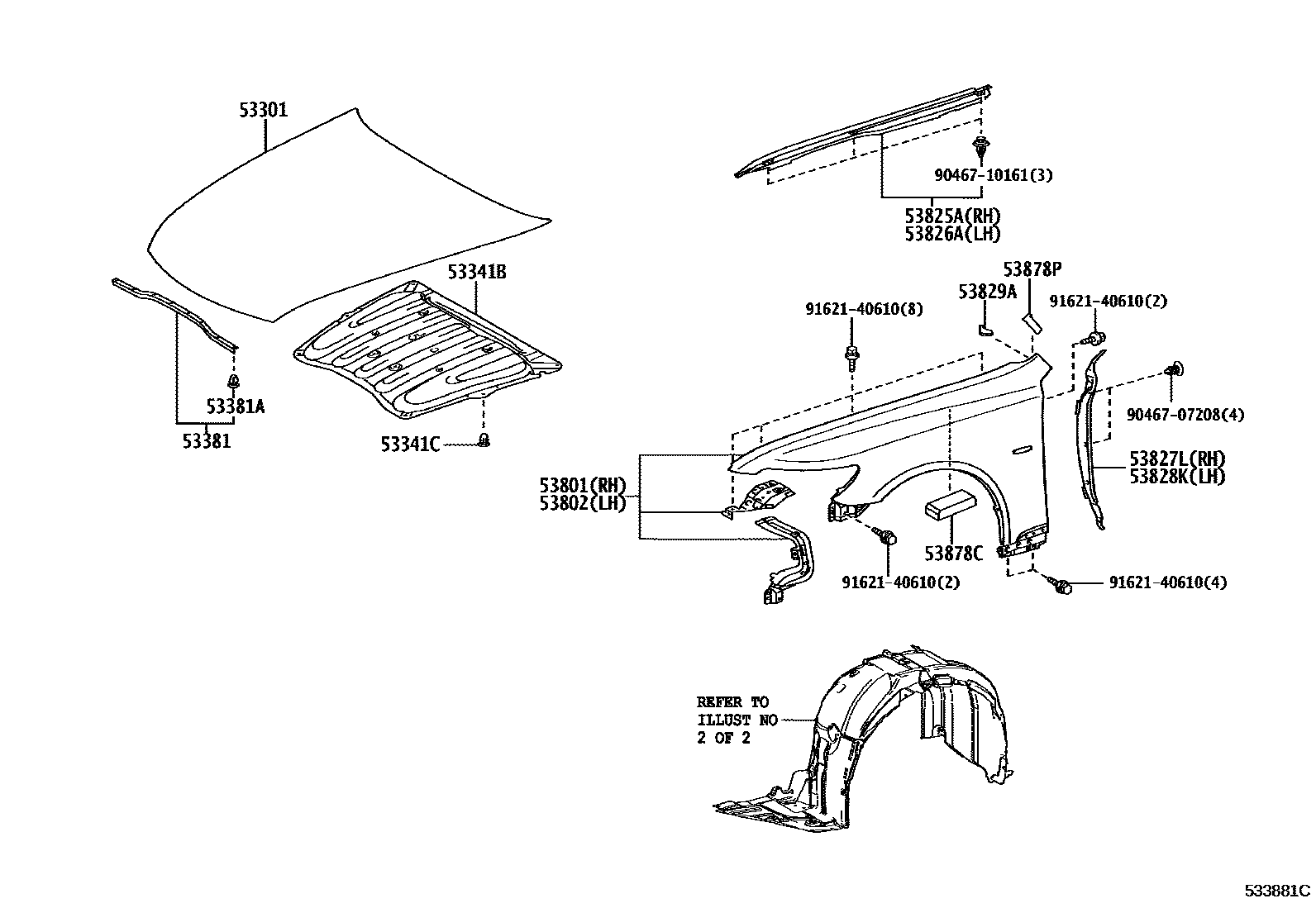

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-50100iUSF4#¥105,000201209-201708

53341BINSULATOR, HOOD

main53341-50070iUSF4#¥10,400201209

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iUSF4#¥120201209

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-50080iUSF4#..CHI,EUR¥1,350201209

main53381-50090iUSF40,41..GCC201209

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iUSF40,41..GCC¥100201209

53801FENDER SUB-ASSY, FRONT RH

main53801-50200iUSF4#¥76,300201209

53802FENDER SUB-ASSY, FRONT LH

main53802-50200iUSF4#¥76,300201209

53825APROTECTOR, FRONT FENDER, UPPER RH

main53807-50020iUSF4#¥4,110201209

53826APROTECTOR, FRONT FENDER, UPPER LH

main53808-50020iUSF4#¥4,110201209

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-50060iUSF4#¥3,080201209

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-50060iUSF4#¥3,080201209

53829APROTECTOR, FRONT FENDER, LOWER

main53829-50010iUSF4#¥280201209

53878CSPACER, FRONT FENDER

main55783-30110iUSF4#¥740201209

53878PSPACER, FRONT FENDER

main53878-50030iUSF4#¥240201209

9046707208

main90467-07208¥110

9046710161

main90467-10161¥90

9162140610

main91621-40610¥70

17 parts on this diagram · 2 diagrams in section
