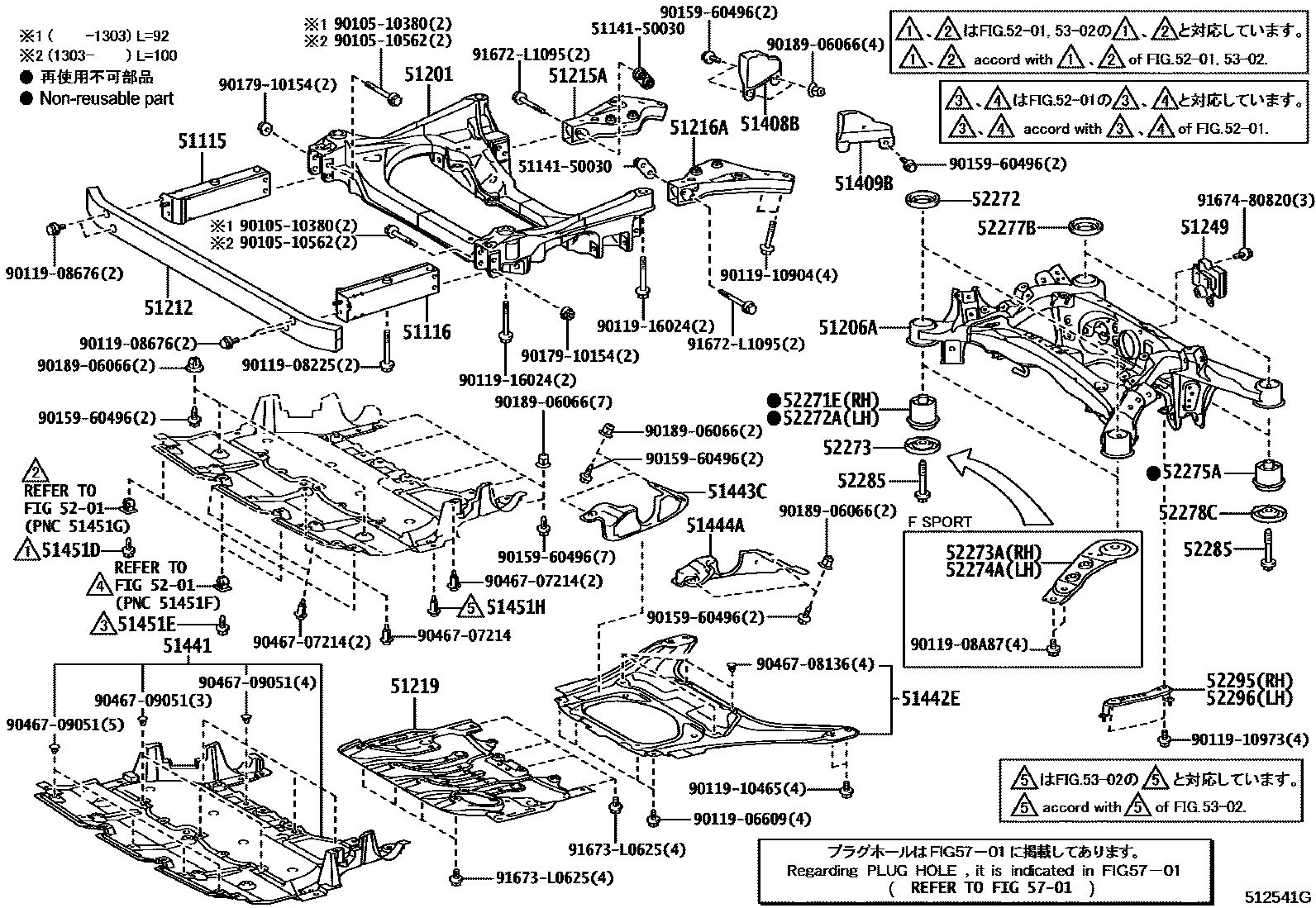

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51115RAIL, FRAME SIDE, REAR RH

main51107-50022iUSF4#¥4,520201209

51116RAIL, FRAME SIDE, REAR LH

main51108-50022iUSF4#¥4,520201209

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-50040iUSF40,41¥109,000201209-201708

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-50050iUSF4#¥115,000201209-201307

sub51206-50051¥57,500

main51206-50051iUSF4#¥57,500201308

51212CROSSMEMBER, FRONT SUSPENSION, LOWER

main51212-50061iUSF4#¥11,800201209

51215AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main57305-50010iUSF40,41¥9,000201209

51216AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main57306-50010iUSF40,41¥9,000201209

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-50020iUSF40,41¥11,500201209

main51219-50030iUSF45,46¥12,500201209

51249DAMPER, REAR SUSPENSION MEMBER

main51249-50030iUSF4#¥3,990201209

51408BCOVER SUB-ASSY, ENGINE UNDER, RH

main53747-50020iUSF40,41¥1,070201209

51409BCOVER SUB-ASSY, ENGINE UNDER, LH

main53748-50020iUSF40,41¥1,070201209

51441COVER, ENGINE UNDER, NO.1

main51440-50070iUSF40,41¥29,200201209

main51440-50080iUSF45,46¥15,400201209

51442ECOVER, ENGINE UNDER, NO.2

main51420-50020iUSF40,41¥26,300201209

main51420-50030iUSF45,46¥11,200201209

51443CCOVER, ENGINE UNDER, REAR RH

main51443-50041iUSF40,41¥1,910201209

51444ACOVER, ENGINE UNDER, REAR LH

main51444-50041iUSF40,41¥1,910201209

51451DSCREW, NO.1

main90159-60477iUSF4#¥70201209-201708

51451ESCREW, NO.2

main90159-60477iUSF4#¥70201209-201708

51451HSCREW, NO.3

main90467-07214iUSF4#¥70201209-201708

5201

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-50060iUSF4#¥4,930201209-201302

sub52271-50061¥4,110

main52271-50061iUSF4#¥4,110201303

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52278-50030iUSF4#¥630201209

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-50010iUSF4#¥4,640201209-201302

sub52272-50011¥3,860

main52272-50011iUSF4#¥3,860201303

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-50020iUSF4#¥430201209

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-50071iUSF4#¥4,930201209-201302

sub52275-50072¥4,110

main52275-50072iUSF4#¥4,110201303

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-50031iUSF4#¥840201209

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52274-50020iUSF4#¥840201209

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021iUSF4#¥1,360201209-201302

main90119-14154iUSF4#¥360201303

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-50030iUSF4#¥1,580201209

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-50030iUSF4#¥1,580201209

5701

5114150030REINFORCEMENT, SIDE RAIL, RH

main51141-50030¥480

9010510380

main90105-10380¥310

9010510562

main90105-10562¥240

9011906609

main90119-06609¥100

9011908225

main90119-08225¥0

9011908676

main90119-08676¥120

9011908A87

main90119-08A87¥100

9011910465

main90119-10465¥120

9011910904

main90119-10904¥220

9011910973

main90119-10973¥100

9011916024

main90119-16024¥490

9015960496

main90159-60496¥60

9017910154

main90179-10154¥110

9018906066

main90189-06066¥80

9046707214

main90467-07214¥70

9046708136

main90467-08136¥90

9046709051

main90467-09051¥120

91672L1095

main91672-L1095¥250

91673L0625

main91673-L0625¥80

9167480820

main91674-80820¥80

52 parts on this diagram · 2 diagrams in section
