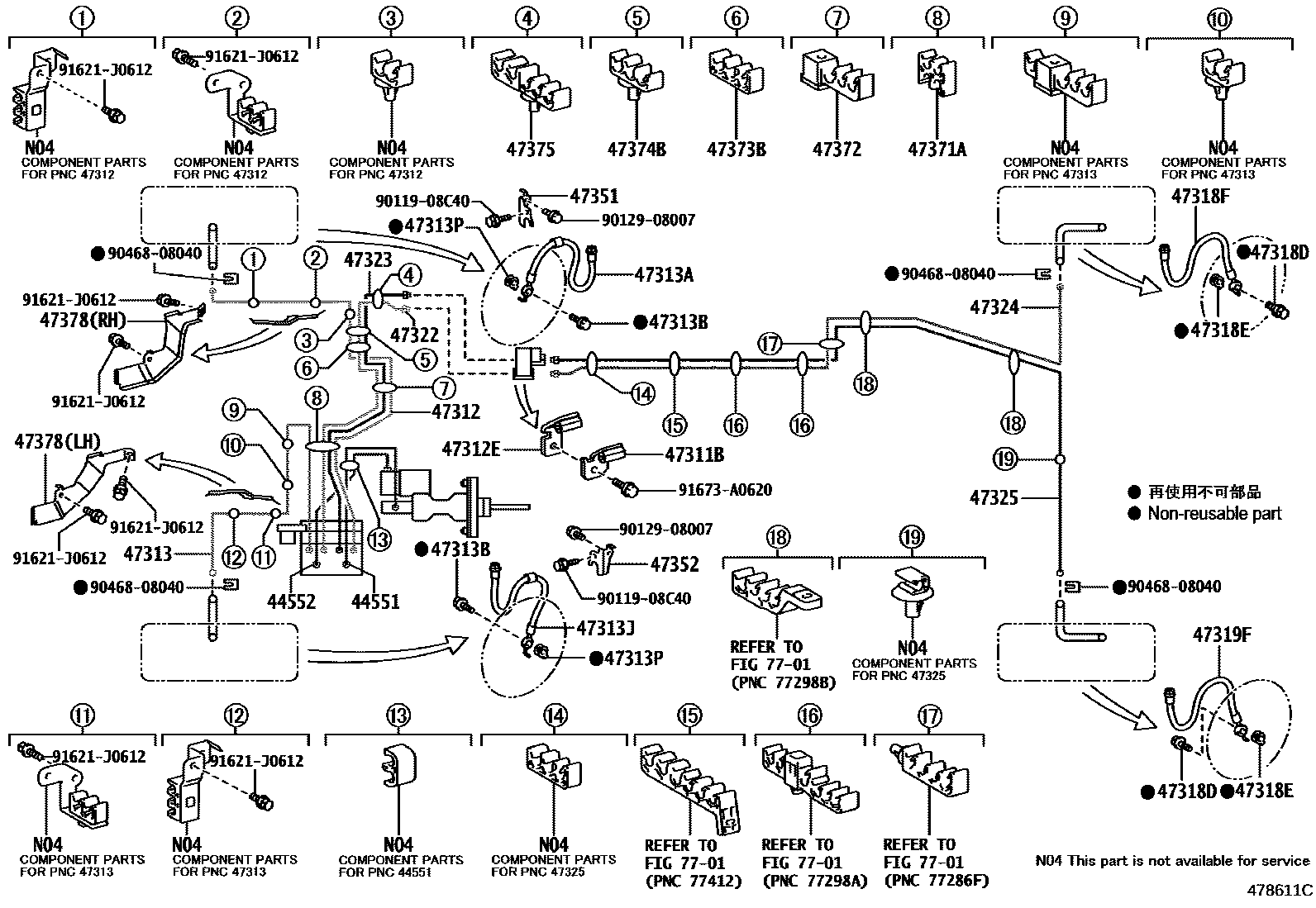

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

44551TUBE, BRAKE ACTUATOR, NO.1

main44551-50110iUSF4#..LHD201209-201409

sub44551-50111

main44551-50111iUSF4#..LHD201410

main44551-50120iUSF40,41..RHD¥740201209-201409

sub44551-50121¥450

main44551-50121iUSF40,41..RHD¥450201410

44552TUBE, BRAKE ACTUATOR, NO.2

main44552-50061iUSF4#..LHD201209-201409

sub44552-50062

main44552-50062iUSF4#..LHD201410

main44552-50070iUSF40,41..RHD¥820201209-201409

sub44552-50071¥510

main44552-50071iUSF40,41..RHD¥510201410

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10274iUSF4#¥780201209-201309

main90412-10292iUSF4#¥490201309

47312TUBE, FRONT BRAKE, NO.2

main47312-50241iUSF40,41..LHD201209-201409

sub47312-50242

main47312-50242iUSF40,41..LHD201410

main47312-50251iUSF40,41..RHD¥3,240201209-201409

sub47312-50252¥2,700

main47312-50252iUSF40,41..RHD¥2,700201410

main47312-50280iUSF45,46201209-201409

sub47312-50281

main47312-50281iUSF45,46201410

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10275iUSF4#¥980201209-201309

main90412-10297iUSF4#¥610201309

47313TUBE, FRONT BRAKE, NO.3

main47313-50202iUSF40,41..LHD201209-201409

sub47313-50203

main47313-50203iUSF40,41..LHD201410

main47313-50212iUSF40,41..RHD¥3,940201209-201409

sub47313-50213¥3,280

main47313-50213iUSF40,41..RHD¥3,280201410

main47313-50221iUSF45201209-201409

VERSION L

sub47313-50222

main47313-50222iUSF46201410

VERSION L

main47313-50250iUSF45201209-201409

sub47313-50251

main47313-50251iUSF45201410

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02F75iUSF40,41¥1,670201209

main90947-02F88iUSF45,46¥1,800201209

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iUSF4#¥220201209

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02F76iUSF40,41¥1,670201209

main90947-02F89iUSF45,46¥1,800201209

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iUSF4#¥280201209

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iUSF4#¥220201209

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iUSF4#¥280201209

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02F77iUSF4#¥1,320201209

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02F77iUSF4#¥1,320201209

47322TUBE, REAR BRAKE, NO.2

main47322-50220iUSF41..HTWC201209-201309

main47322-50230iUSF40,41..RHD¥1,620201209-201309

main47322-50240iUSF45,46201209-201309

main47322-50260iUSF40,41..LHD..D4201209-201309

sub47322-50220

main47322-50270iUSF41..HTWC201309-201409

sub47322-50271

main47322-50271iUSF41..HTWC201410

main47322-50280iUSF40,41..RHD¥1,620201309-201409

sub47322-50281¥1,350

main47322-50281iUSF40,41..RHD¥1,350201410

main47322-50290iUSF45,46201309-201409

sub47322-50291

main47322-50291iUSF45,46201410

main47322-50310iUSF40,41..LHD..D4201309-201408

sub47322-50311

main47322-50311iUSF40,41..LHD..D4201409

sub47322-50271

47323TUBE, REAR BRAKE, NO.3

main47323-50080iUSF41..HTWC201209-201309

main47323-50090iUSF40,41..RHD¥1,820201209-201309

main47323-50100iUSF45,46201209-201309

main47323-50120iUSF40,41..LHD..D4201209-201309

sub47323-50080

main47323-50130iUSF41..HTWC201309-201409

sub47323-50131

main47323-50131iUSF41..HTWC201410

main47323-50140iUSF40,41..RHD¥1,620201309-201409

sub47323-50141¥1,350

main47323-50141iUSF40,41..RHD¥1,350201410

main47323-50150iUSF45,46201309-201409

sub47323-50151

main47323-50151iUSF45,46201410

main47323-50170iUSF40,41..LHD..D4201309-201408

sub47323-50171

main47323-50171iUSF40,41..LHD..D4201409

sub47323-50131

47324TUBE, REAR BRAKE, NO.4

main47324-50160iUSF40,45¥3,610201209-201309

main47324-50170iUSF41,46¥3,610201209-201309

main47324-50180iUSF40,45¥3,010201309-201708

sub47324-50181¥3,610

main47324-50181iUSF40,45¥3,610201410-201508

main47324-50190iUSF41,46¥2,270201309-201708

main47324-50191iUSF41,46¥3,760201410-201508

47325TUBE, REAR BRAKE, NO.5

main47325-50120iUSF40,45¥4,410201209-201309

main47325-50130iUSF41,46¥4,410201209-201309

main47325-50140iUSF40,45¥3,680201309-201708

sub47325-50141¥4,410

main47325-50141iUSF40,45¥4,410201410-201508

main47325-50150iUSF41,46¥2,780201309-201708

main47325-50151iUSF41,46¥4,580201410-201508

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-50010iUSF40,41¥380201209-201708

main47351-50020iUSF45,46¥390201209-201708

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-50010iUSF40,41¥380201209-201708

main47352-50020iUSF45,46¥390201209-201708

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00876iUSF4#¥110201209

47372CLAMP, BRAKE TUBE, NO.2

main47371-50200iUSF4#..LHD¥230201309

main90949-01D08iUSF4#..LHD¥170201209-201308

47373BCLAMP, BRAKE TUBE, NO.3

main90464-00857iUSF4#..LHD¥110201209

main90949-01D47iUSF40,41..RHD¥380201209

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D41iUSF4#..LHD¥110201209

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D47iUSF4#..LHD¥380201209

47378PROTECTOR, BRAKE TUBE

main47378-50040iUSF4#¥520201209

RH

main47388-50030iUSF4#¥480201209

LH

7701

9011908C40

main90119-08C40¥80

9012908007

main90129-08007¥90

9046808040

main90468-08040¥130

91621J0612

main91621-J0612¥70

91673A0620

main91673-A0620¥60

32 parts on this diagram · 6 diagrams in section
