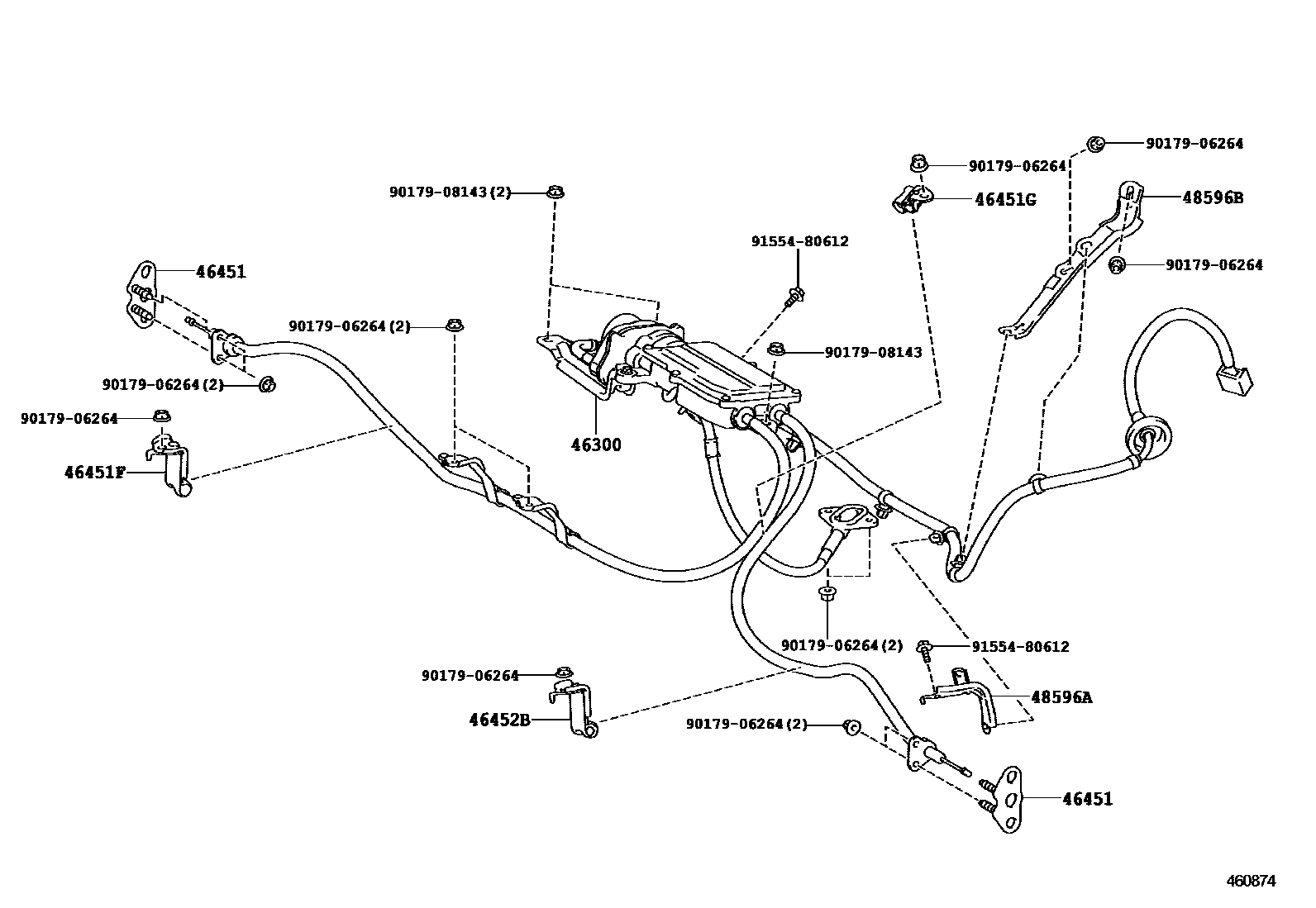

PARKING BRAKE & CABLE

0001 1 0002 1

46300ACTUATOR ASSY, PARKING BRAKE W/BRACKET

main46300-50011iUSF4#201209

46451BRACKET, CABLE SUPPORT

main46451-50100iUSF4#201209-201708

46451FBRACKET, CABLE SUPPORT

main46451-50060iUSF4#201209

46451GBRACKET, CABLE SUPPORT

main46451-50080iUSF4#201209

46452BBRACKET, CABLE SUPPORT, NO.2

main46451-50090iUSF4#201209

48596ACLAMP, ACTUATOR HARNESS, NO.1

main48596-50010iUSF4#201209

48596BCLAMP, ACTUATOR HARNESS, NO.2

main48596-50020iUSF4#201209

9017906264

main90179-06264

9017908143

main90179-08143

9155480612

main91554-80612

10 parts on this diagram · 2 diagrams in section
