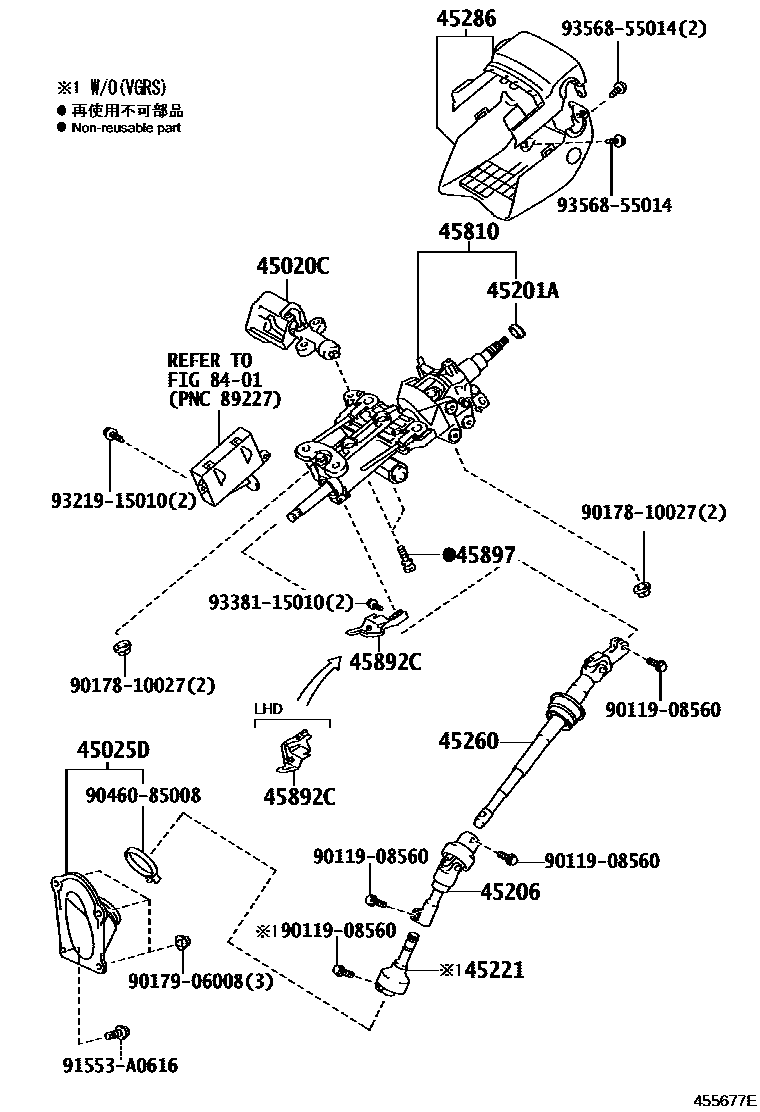

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201ABEARING(FOR STEERING MAIN SHAFT)
45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45286COVER, STEERING COLUMN
BLACK,TRIM2#,4#,5#
BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
ORCHID BROWN,TRIM0#
PRE-COLLISION SYSTEM-WITH(*DMO & *MRT & *PB & *PSB),BLACK,TRIM1#,2#,4#,5#
PRE-COLLISION SYSTEM-WITH(*RPCS),BLACK,TRIM2#,4#,5#
PRE-COLLISION SYSTEM-WITH(*RPCS & *PB),BLACK,TRIM1#,2#,4#,5#
PRE-COLLISION SYSTEM-WITH(*DMO & *MRT & *PB & *PSB),BLACK,TRIM2#,3#,4#,5#
PRE-COLLISION SYSTEM-WITH(*DMO & *MRT & *PB & *PSB),BLACK,TRIM2#,4#,5#
PRE-COLLISION SYSTEM-WITH(*PB),BLACK,TRIM2#,4#,5#
PRE-COLLISION SYSTEM-WITH(*PB),BLACK,TRIM1#,2#,4#,5#
BLACK,TRIM2#,4#,5#
PRE-COLLISION SYSTEM-WITH(*PB),ORCHID BROWN,TRIM0#
PRE-COLLISION SYSTEM-WITH(*RPCS),ORCHID BROWN,TRIM0#
PRE-COLLISION SYSTEM-WITH(*RPCS & *PB),ORCHID BROWN,TRIM0#
ORCHID BROWN,TRIM0#
PRE-COLLISION SYSTEM-WITH(*DMO & *MRT & *PB & *PSB),ORCHID BROWN,TRIM0#
45810GEAR ASSY, TILT STEERING, W/MOTOR
45897BOLT, STEERING LOCK SET
8401
9011908560
main90119-08560
9017810027
main90178-10027
9017906008
main90179-06008
9046085008
main90460-85008
91553A0616
main91553-A0616
9321915010
main93219-15010
9338115010
main93381-15010
9356855014
main93568-55014
19 parts on this diagram · 2 diagrams in section
