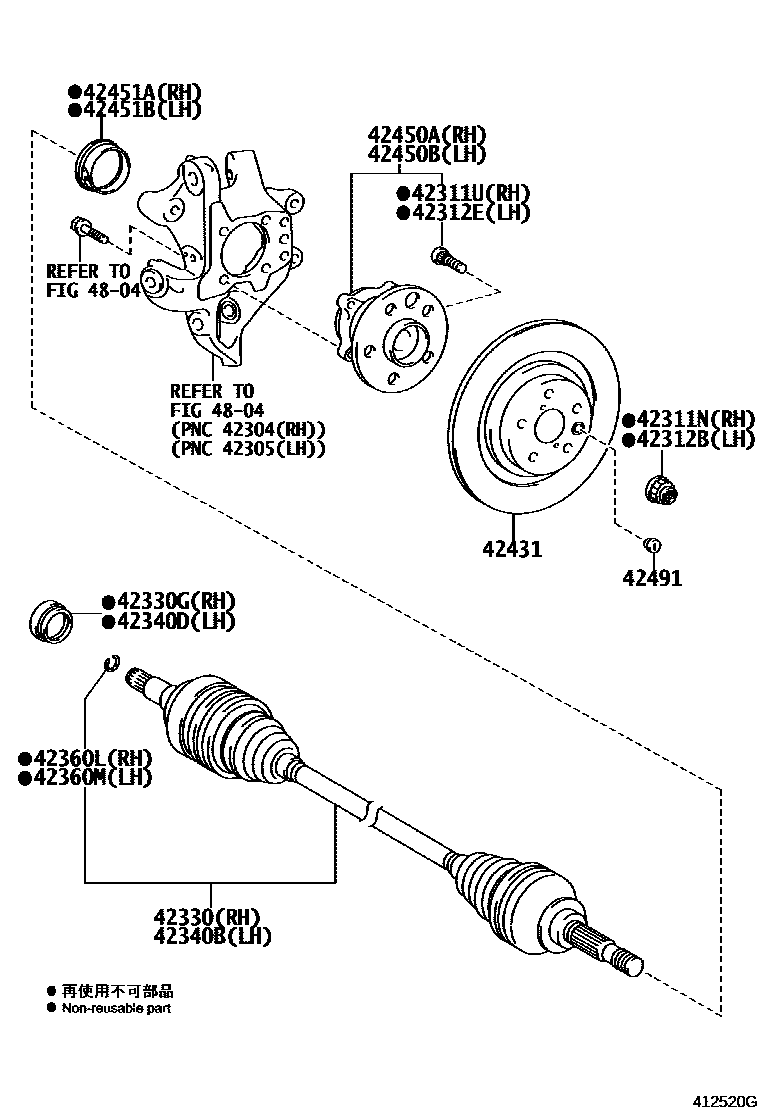

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iUSF4#¥260201209

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02083iUSF4#¥280201209

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iUSF4#¥260201209

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02083iUSF4#¥280201209

42330SHAFT ASSY, REAR DRIVE, RH

main42330-50070iUSF4#¥39,900201209

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-47018iUSF4#¥1,140201209-201708

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-50070iUSF4#¥39,900201209

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-47019iUSF4#¥1,140201209-201708

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-34003iUSF4#¥110201209

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-34003iUSF4#¥110201209

42431DISC, REAR

main42431-50090iUSF41..LHD..D4..EUR¥12,100201209-201708

FRONT WHEEL BRAKE-17INCHES DISC

main42431-50100iUSF41..RHD;USF41..HTWC;USF40,45,46;USF41..D4..(CHI,GCC)¥10,000201209-201708

RH

main42431-50100iUSF41..RHD;USF41..HTWC;USF40,45,46;USF41..D4..(CHI,GCC)¥10,000201209-201708

FRONT WHEEL BRAKE-18INCHES DISC,RH

main42432-50010iUSF41..RHD;USF41..HTWC;USF40,45,46;USF41..D4..(CHI,GCC)¥10,000201209-201708

LH

main42432-50010iUSF41..RHD;USF41..HTWC;USF40,45,46;USF41..D4..(CHI,GCC)¥10,000201209-201708

FRONT WHEEL BRAKE-18INCHES DISC,LH

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-50042iUSF4#¥11,900201209

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-50042iUSF4#¥11,900201209

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-50030iUSF4#¥790201209

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-50030iUSF4#¥790201209

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010iUSF4#¥60201209-201708

4804

17 parts on this diagram · 1 diagram in section
