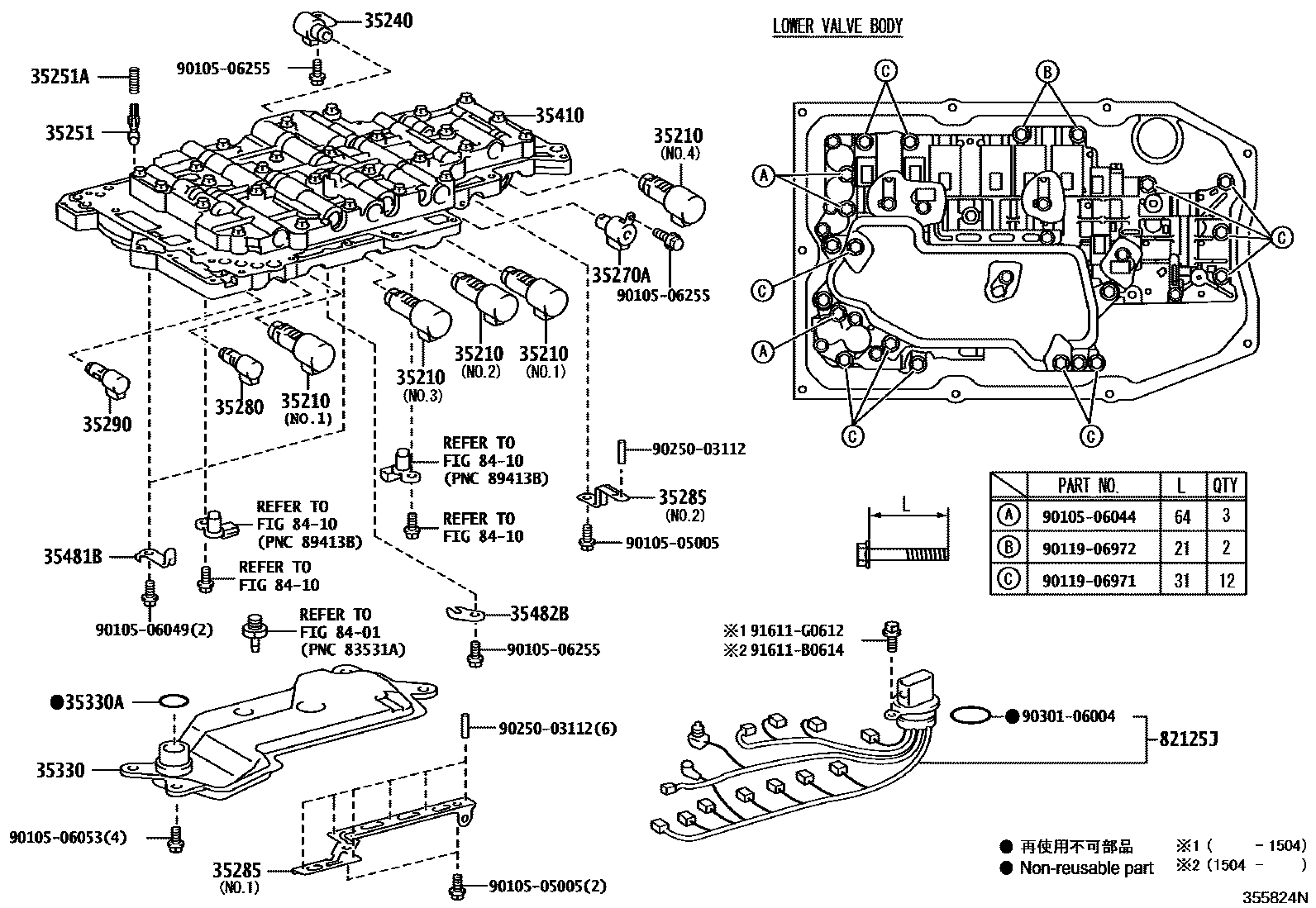

VALVE BODY & OIL STRAINER (ATM)
35210SOLENOID ASSY, CLUTCH CONTROL, NO.1
NO.1
NO.2
NO.3
NO.4
35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35251BODY, CHECK BALL
35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)
35270ASOLENOID ASSY, TRANSMISSION 3WAY LOCK UP
35280SOLENOID ASSY, LOCK UP CONTROL
35290SOLENOID ASSY, LINE PRESSURE CONTROL
35330STRAINER ASSY, VALVE BODY OIL
35330ARING, O (FOR OIL STRAINER)
35410BODY ASSY, TRANSMISSION VALVE
35481BCLAMP, VALVE BODY WIRE HARNESS
35482BCLAMP, TEMPERATURE SENSOR
82125JWIRE, TRANSMISSION
sub82125-50061
8401
8410
9010505005
main90105-05005
9010506044
main90105-06044
9010506049
main90105-06049
9010506053
main90105-06053
9010506255
main90105-06255
9011906971
main90119-06971
9011906972
main90119-06972
9025003112
main90250-03112
9030106004
main90301-06004
91611B0614
main91611-B0614
91611G0612
main91611-G0612
27 parts on this diagram · 1 diagram in section
