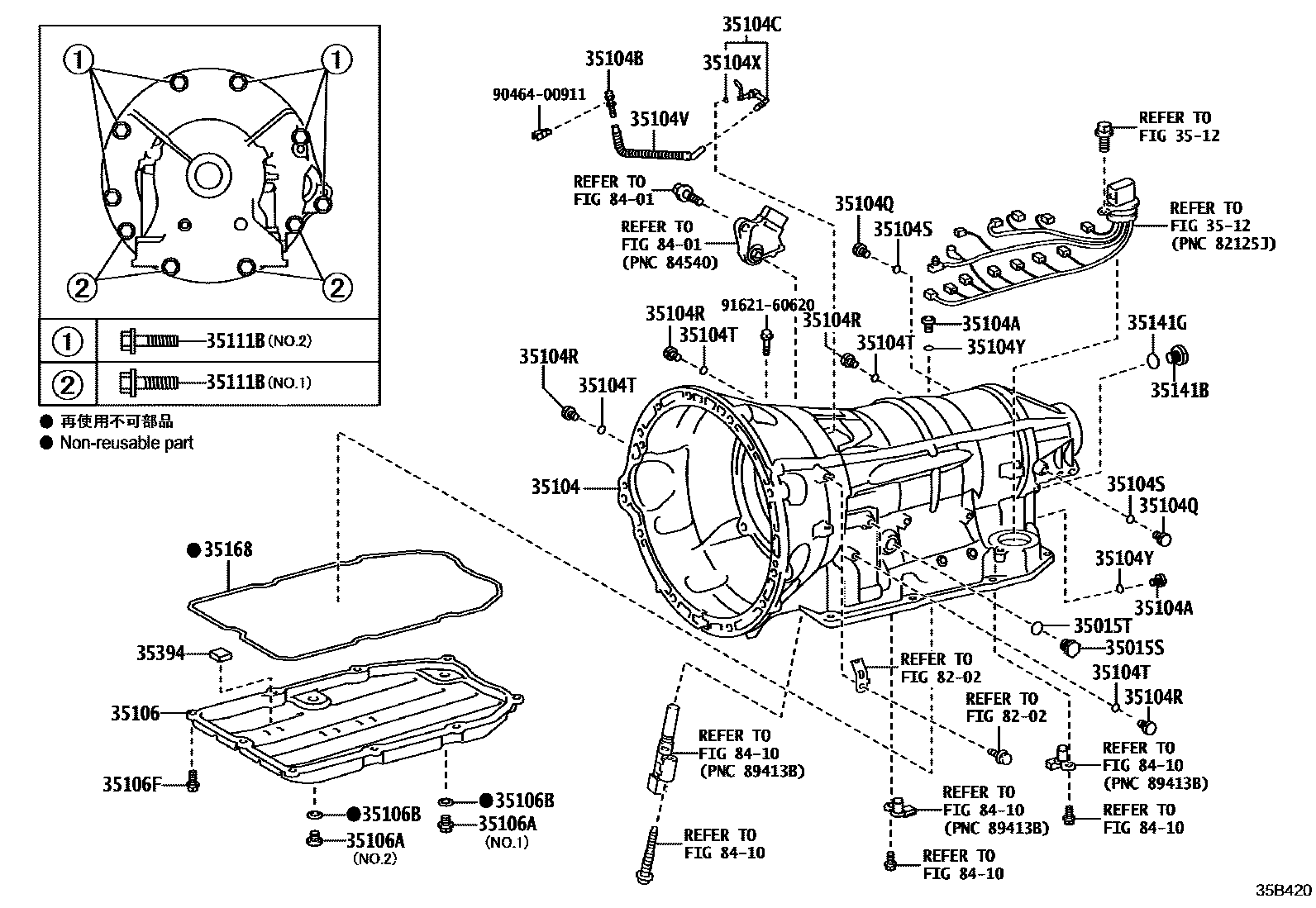

TRANSMISSION CASE & OIL PAN (ATM)

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iUSF4#201209

35015TRING, O(FOR TRANSMISSION CASE ADAPTER)

main90301-15004iUSF4#201209

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-50030iUSF40,41201209

main35104-50040iUSF45,46201209

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-14011iUSF4#201209

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iUSF4#201209

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03197iUSF4#201209

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-12036iUSF4#201209

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-08001iUSF4#201209

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-09026iUSF4#201209

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-06196iUSF4#201209

35104VHOSE (FOR BREATHER PLUG)

main90447-11059iUSF4#201209

35104XRING, O (FOR BREATHER PLUG)

main90301-04015iUSF4#201209

35104YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030iUSF4#201209

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30300iUSF45,46201209-201506

sub35106-30310

main35106-30310iUSF45,46201506

main35106-50050iUSF40,41201209

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10011iUSF4#201209

NO.1

main90341-10021iUSF4#201209

NO.2

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iUSF4#201209

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06982iUSF4#201209

35111BBOLT (FOR TRANSMISSION HOUSING & ENGINE SETTING)

main90119-10260iUSF4#201209-201708

*10-1.25PX43-30,NO.1

main91619-61250iUSF4#201209-201708

*12-1.25PX50-30,NO.2

3512

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-24017iUSF4#201209

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-20013iUSF4#201209

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-50010iUSF4#201209

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-48010iUSF4#201209

8202

8401

8410

9046400911

main90464-00911

9162160620

main91621-60620

28 parts on this diagram · 1 diagram in section
