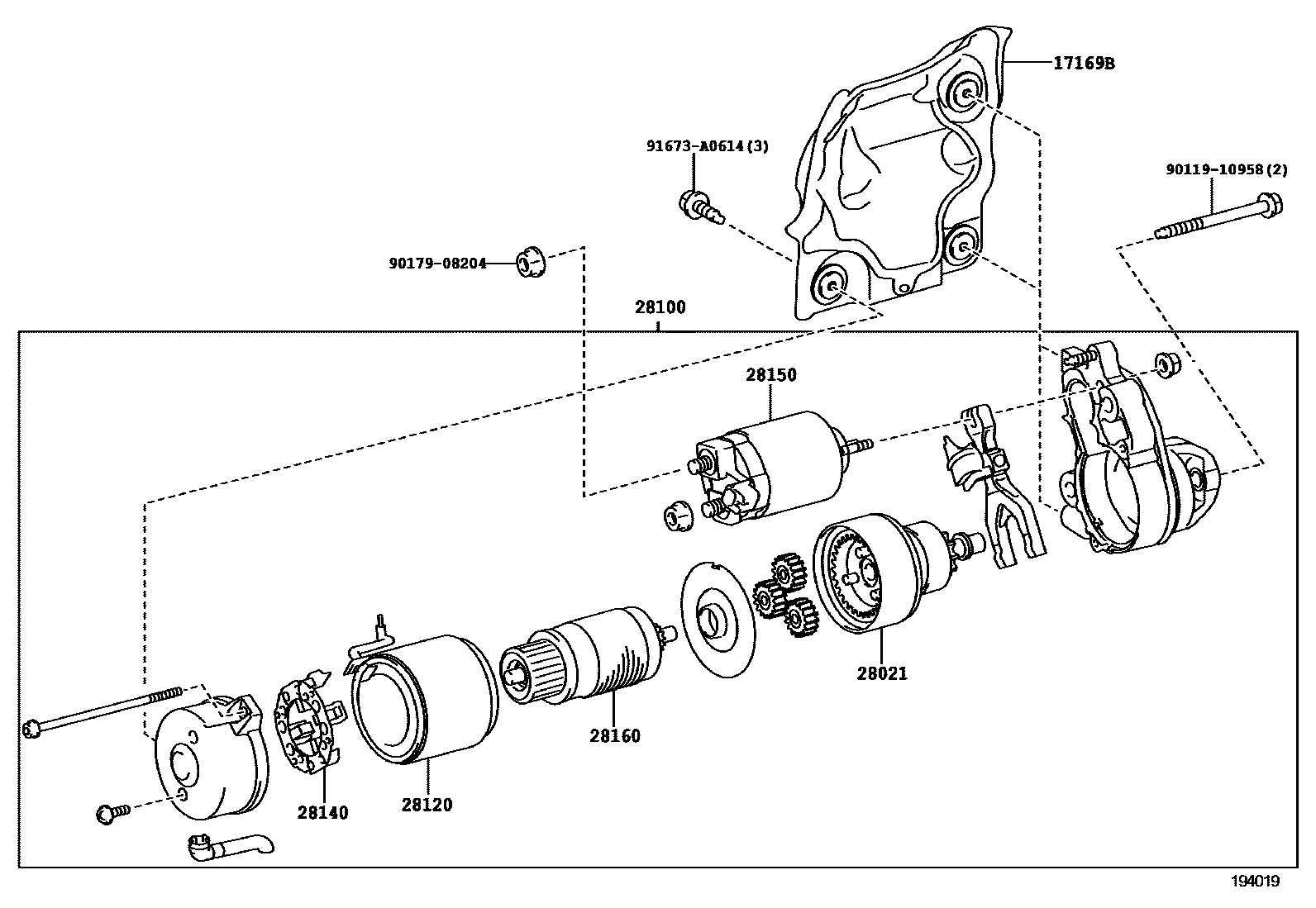

STARTER

0001 112V 2.0KW 0002 112V 2.0KW

17169BINSULATOR, EXHAUST MANIFOLD HEAT, NO.3

main17169-38030i1UR#..USF40,41201209-201708

main17169-38050i1URFSE..USF45,46201209-201708

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-38020i1UR#..USF40,41201502

main28021-38070i1UR#..USF40,41201209-201701

main28021-75210i1URFSE..USF45,46201701

28100STARTER ASSY

main28100-38021i1UR#..USF40,41201502

12V 2.0KW

main28100-38090i1URFSE..USF45,46201209-201408

12V 2.0KW

sub28100-38091

main28100-38091i1UR#..USF40,41201408-201501

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-38060i1UR#..USF40,41201502

main28120-38090i1URFSE..USF45,46201209-201502

28140HOLDER ASSY, STARTER BRUSH

main28140-38070i1UR#..USF40,41201209-201502

28150SWITCH ASSY, MAGNET STARTER

main28150-38061i1UR#..USF4#201209

28160ARMATURE ASSY, STARTER

main28160-38020i1UR#..USF40,41201502

main28160-38070i1UR#..USF40,41201209-201801

9011910958

main90119-10958

9017908204

main90179-08204

91673A0614

main91673-A0614

10 parts on this diagram · 2 diagrams in section
