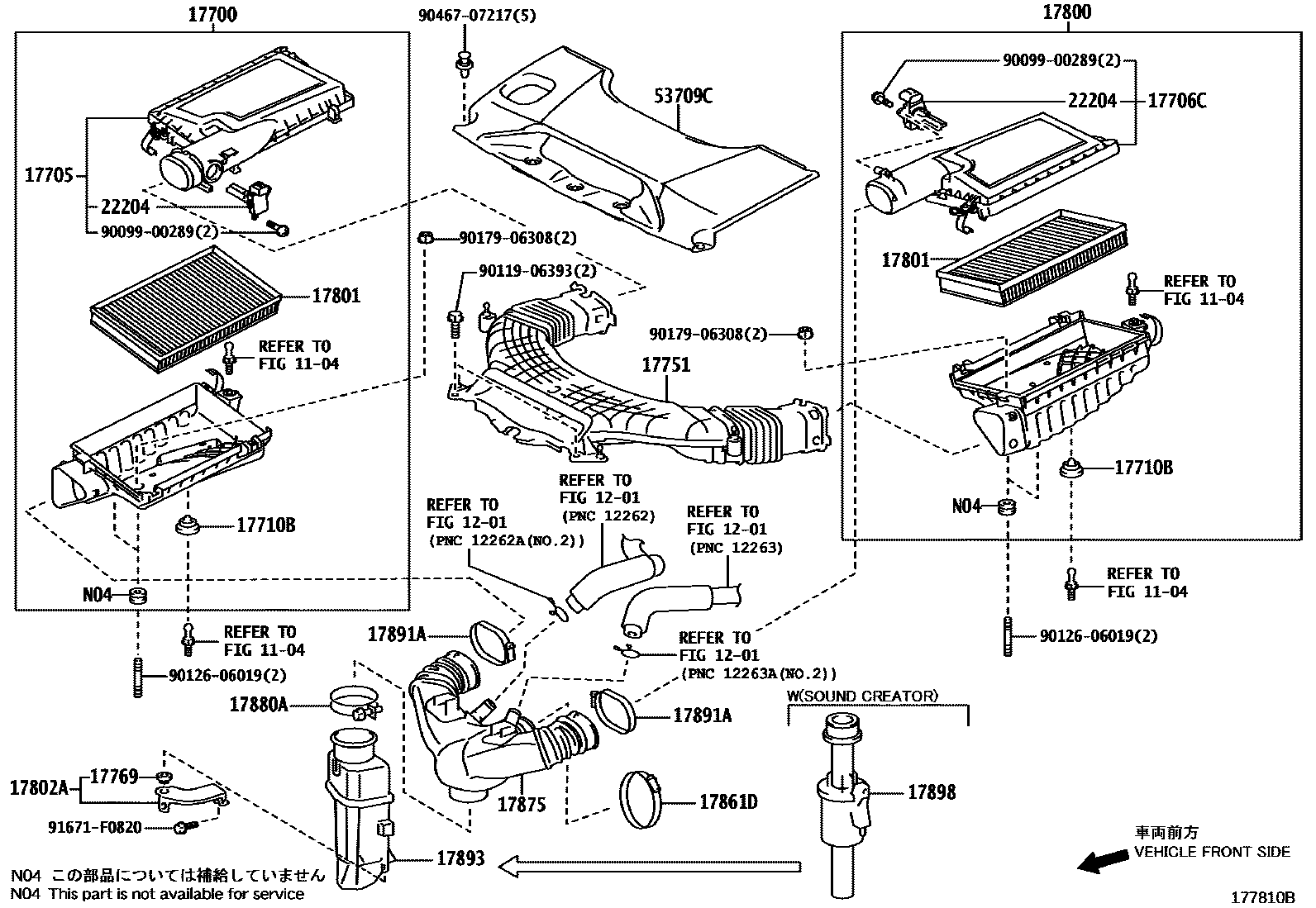

AIR CLEANER

0001 1 0002 1

1104

1201

17700CLEANER ASSY, AIR

main17700-38132i1UR#..USF4#201209

17705CAP SUB-ASSY, AIR CLEANER

main17705-38071i1UR#..USF4#201209

17706CCAP SUB-ASSY, AIR CLEANER, LH

main17706-38011i1UR#..USF4#201209

17710BGROMMET

main90480-22024i1UR#..USF4#201209

17751INLET, AIR CLEANER, NO.1

main17751-38011i1UR#..USF40,41201209

main17751-38020i1URFSE..USF45,46201209

17769SUPPORT, AIR CLEANER

main17769-38010i1UR#..USF4#201209

17800CLEANER ASSY, AIR W/ELEMENT, LH

main17800-38012i1UR#..USF4#201209

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-38011i1UR#..USF4#201209-201708

17802ABRACKET SUB-ASSY, RESONATOR

main17802-38010i1UR#..USF4#201209

17861DCLAMP(FOR INTAKE AIR CONNECTOR)

main90460-99005i1UR#..USF4#201209

17875PIPE, INTAKE AIR CONNECTOR

main17875-38011i1UR#..USF4#201209

17880ACLAMP, HOSE

main96111-10750i1UR#..USF4#201209

17891ACLAMP, AIR CLEANER HOSE

main17891-38010i1UR#..USF4#201209

17893RESONATOR, INTAKE AIR

main17893-38020i1UR#..USF4#201209

17898CREATOR, INTAKE AIR SOUND

main17898-38010i1URFSE..USF40..GCC201410-201509

THE CRAFTED LINE

main17898-38010i1URFSE..USF40..GCC201210

F SPORT

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-38020i1UR#..USF4#201209

53709CCOVER SUB-ASSY, AIR CLEANER INLET

main53767-50011iUSF40,41201209

main53767-50020iUSF45,46201209

9009900289

main90099-00289

9011906393

main90119-06393

9012606019

main90126-06019

9017906308

main90179-06308

9046707217

main90467-07217

91671F0820

main91671-F0820

25 parts on this diagram · 2 diagrams in section
