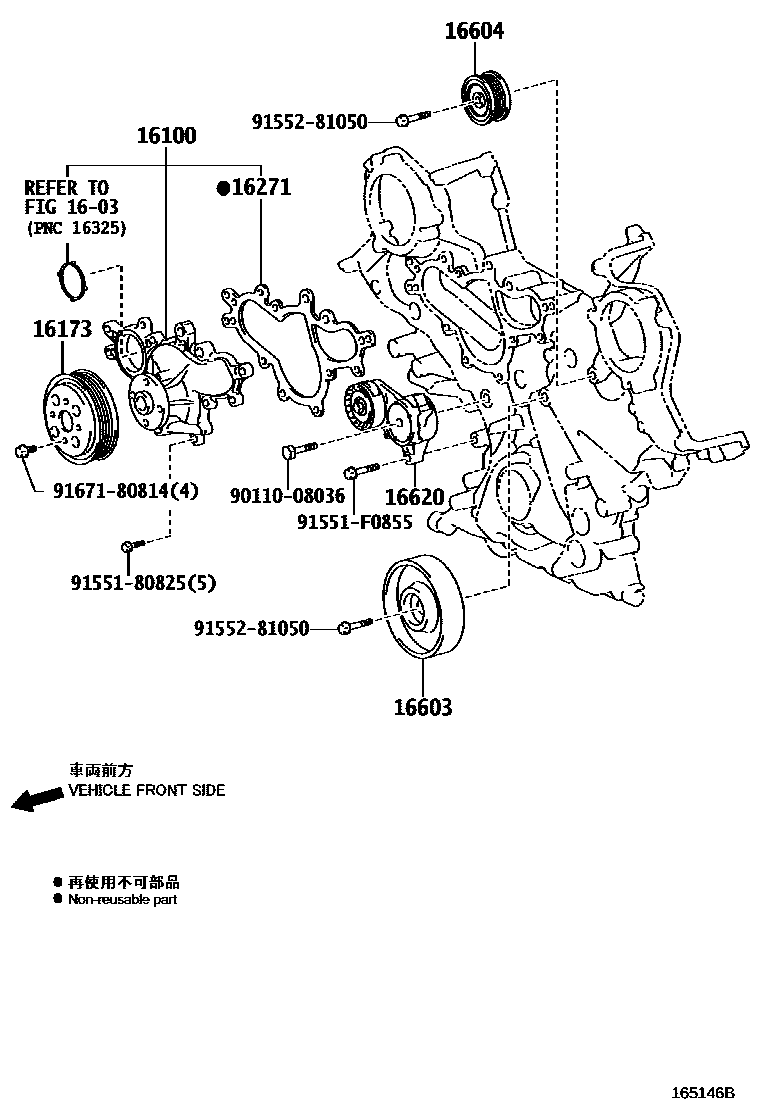

WATER PUMP

1603

16100PUMP ASSY, ENGINE WATER

main16100-39506i1UR#..USF4#201209

16173PULLEY, WATER PUMP

main16173-38040i1UR#..USF4#201209

sub16173-38041

16271GASKET, WATER PUMP

main16271-38010i1UR#..USF4#201209

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-38030i1UR#..USF4#201209

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-38020i1UR#..USF4#201209

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W131i1UR#..USF4#201209

9011008036

main90110-08036

9155180825

main91551-80825

91551F0855

main91551-F0855

9155281050

main91552-81050

9167180814

main91671-80814

12 parts on this diagram · 1 diagram in section
