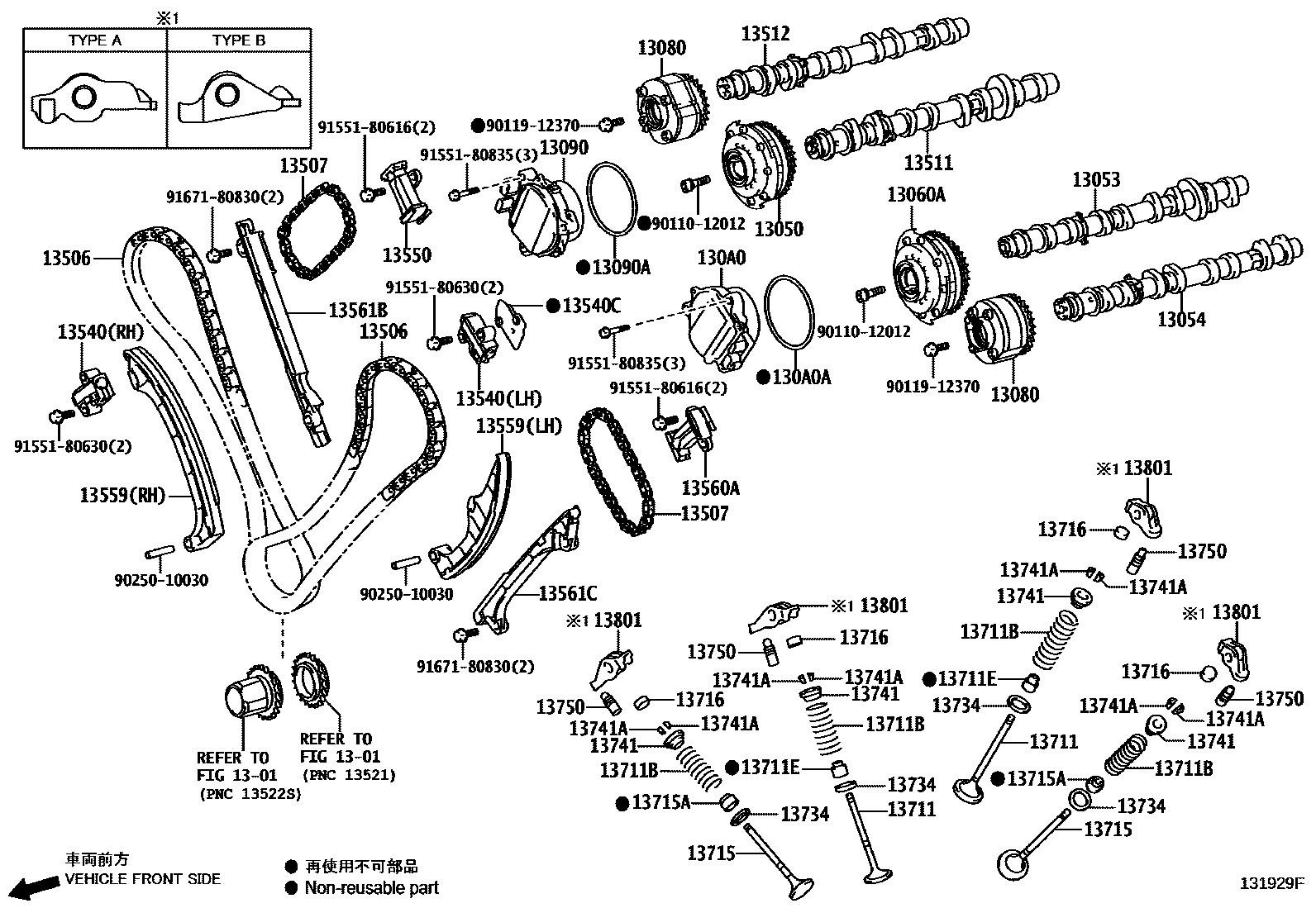

CAMSHAFT & VALVE
1301
13050GEAR ASSY, CAMSHAFT TIMING
13060AGEAR ASSY, CAMSHAFT TIMING, LH
13080GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH
13090ARING, O(FOR CAM TIMING CONTROL MOTOR RH)
130A0ARING, O(FOR CAM TIMING CONTROL MOTOR LH)
13506CHAIN SUB-ASSY
13507CHAIN SUB-ASSY, NO.2
13540TENSIONER ASSY, CHAIN, NO.1
RH
LH
13540CGASKET(FOR CHAIN TENSIONER)
13550TENSIONER ASSY, CHAIN, NO.2
13560ATENSIONER ASSY, CHAIN, NO.3
13561BDAMPER, CHAIN VIBRATION, RH
13561CDAMPER, CHAIN VIBRATION, LH
13711BSPRING, COMPRESSION(FOR INNER)
PNC 13801=TYPE B
PNC 13801=TYPE A
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
PNC 13801=TYPE A
PNC 13801=TYPE B
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
9011012012
main90110-12012
9011912370
main90119-12370
9025010030
main90250-10030
9155180616
main91551-80616
9155180630
main91551-80630
9155180835
main91551-80835
9167180830
main91671-80830
39 parts on this diagram · 1 diagram in section
