TIRE PRESSURE WARNING SYSTEM

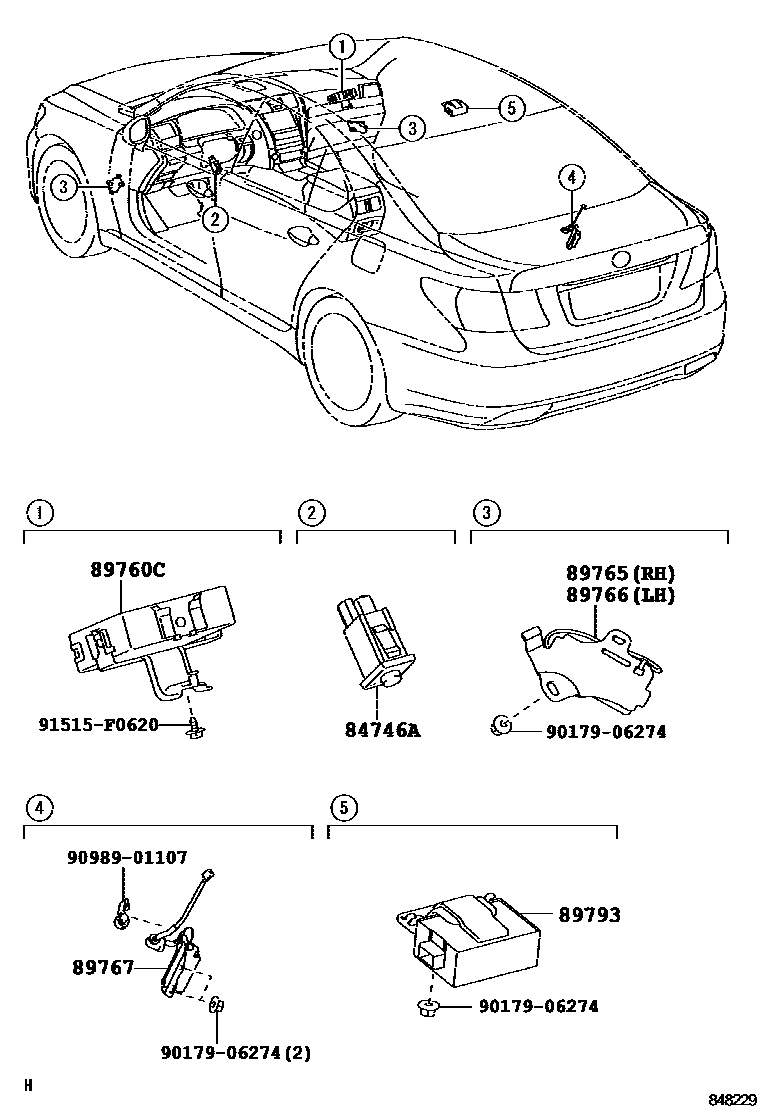

Parts diagram
84746ASWITCH, TIRE PRESSURE WARNING, NO.1
main84746-50010i200608-200909
SOUTH AMERICA SPEC
main84746-50010i200608-201209
NEW ZEALAND SPEC
main84746-50010i200608-201209
AUSTRALIA SPEC
main84746-50010i200608-200909
BEIJING SPEC
main84746-50010i200608-201209
HONG KONG SPEC
main84746-50010i200608-200909
THAILAND SPEC
main84746-50010i200608-200909
SINGAPORE SPEC
main84746-50010i200608-201209
FORMOSA SPEC
main84746-50010i200608-200909
CHINA(EXCEPT BEIJING) SPEC
main84746-50010i200608-201209
ISRAEL SPEC
main84746-50010i200608-200909
MOROCCO SPEC
main84746-50010i200608-200909
PHILIPPINES SPEC
main84746-50010i200608-201209
MALAYSIA SPEC
main84746-50010i200608-201209
RUSSIA SPEC
main84746-50010i200909-201209
THAILAND/INDONESIA SPEC
main84746-50010i200909-201209
KAZAKHSTAN SPEC
main84746-50010i200909-201209
SINGAPOLE/BRUNEI SPEC
main84746-50010i200608-200809
SOUTH AFRICA SPEC
main84746-50010i200608-200809
TIRE INFLATION PRESS WRNG-WITHOUT
89760CRECEIVER ASSY, TIRE PRESSURE MONITOR
main89760-50020i200608-200707
sub89760-50021
main89760-50021i200809-200909
CHINA(EXCEPT BEIJING) SPEC&SPARE TIRE-TEMPER TIRE
main89760-50021i200809-200909
SPARE TIRE-GROUND TIRE
main89760-50021i200809-200909
MOROCCO SPEC
main89760-50021i200809-200909
MOROCCO SPEC&SPARE TIRE-TEMPER TIRE
main89760-50021i200809-200909
PHILIPPINES SPEC
main89760-50021i200809-200909
PHILIPPINES SPEC&SPARE TIRE-TEMPER TIRE
main89760-50021i200809-200909
RUSSIA SPEC
main89760-50021i200809-200909
RUSSIA SPEC&SPARE TIRE-TEMPER TIRE
main89760-50021i200809-200909
SOUTH AMERICA SPEC
main89760-50021i200809-200909
SOUTH AMERICA SPEC&SPARE TIRE-TEMPER TIRE
main89760-50021i200809-200909
BEIJING SPEC
main89760-50021i200809-200909
BEIJING SPEC&SPARE TIRE-TEMPER TIRE
main89760-50021i200809-200909
CHINA(EXCEPT BEIJING) SPEC
main89760-50021i200909
KAZAKHSTAN SPEC
main89760-50021i200708-200809
main89760-50030i200612-200707
sub89760-50031
main89760-50031i200708-200807
sub89760-50032
main89760-50032i200809-200909
SOUTH AFRICA SPEC&SPARE TIRE-GROUND TIRE
sub89760-50033
main89760-50032i200807-200809
sub89760-50033
main89760-50033i200909-201001
RUSSIA SPEC&SPARE TIRE-GROUND TIRE
sub89760-50034
main89760-50033i200909-201001
SOUTH AFRICA SPEC&SPARE TIRE-GROUND TIRE
sub89760-50034
main89760-50033i200909-201001
FORMOSA SPEC&SPARE TIRE-GROUND TIRE
sub89760-50034
main89760-50033i200909-201001
ISRAEL SPEC&SPARE TIRE-GROUND TIRE
sub89760-50034
main89760-50033i200909-201001
TURKEY SPEC&SPARE TIRE-GROUND TIRE
sub89760-50034
main89760-50033i200909-201001
RUSSIA SPEC
sub89760-50034
main89760-50034i201002
TURKEY SPEC&SPARE TIRE-GROUND TIRE
main89760-50034i201002
FORMOSA SPEC&SPARE TIRE-GROUND TIRE
main89760-50034i201002
ISRAEL SPEC&SPARE TIRE-GROUND TIRE
main89760-50034i201002
RUSSIA SPEC
main89760-50034i201002
RUSSIA SPEC&SPARE TIRE-GROUND TIRE
main89760-50034i201002
SOUTH AFRICA SPEC&SPARE TIRE-GROUND TIRE
main89760-50040i200809-200909
ISRAEL SPEC&SPARE TIRE-TEMPER TIRE
main89760-50040i200809-200909
MALAYSIA SPEC
main89760-50040i200809-200909
MALAYSIA SPEC&SPARE TIRE-GROUND TIRE
main89760-50040i200809-200909
MALAYSIA SPEC&SPARE TIRE-TEMPER TIRE
main89760-50040i200809-200909
RUSSIA SPEC
main89760-50040i200809-200909
RUSSIA SPEC&SPARE TIRE-GROUND TIRE
main89760-50040i200809-200909
RUSSIA SPEC&SPARE TIRE-TEMPER TIRE
main89760-50040i200809-200909
NEW ZEALAND SPEC
main89760-50040i200809-200909
NEW ZEALAND SPEC&SPARE TIRE-GROUND TIRE
main89760-50040i200809-200909
NEW ZEALAND SPEC&SPARE TIRE-TEMPER TIRE
main89760-50040i200809-200909
NEW ZEALAND SPEC&SPARE TIRE-W(FLAT TIRE REPAIR KIT),W/O SPAIR TIRE
main89760-50040i200809-200909
AUSTRALIA SPEC
main89760-50040i200809-200909
AUSTRALIA SPEC&SPARE TIRE-GROUND TIRE
main89760-50040i200809-200909
AUSTRALIA SPEC&SPARE TIRE-TEMPER TIRE
main89760-50040i200809-200909
AUSTRALIA SPEC&SPARE TIRE-W(FLAT TIRE REPAIR KIT),W/O SPAIR TIRE
main89760-50040i200809-200909
HONG KONG SPEC
main89760-50040i200809-200909
HONG KONG SPEC&SPARE TIRE-GROUND TIRE
main89760-50040i200809-200909
HONG KONG SPEC&SPARE TIRE-TEMPER TIRE
main89760-50040i200809-200909
HONG KONG SPEC&SPARE TIRE-W(FLAT TIRE REPAIR KIT),W/O SPAIR TIRE
main89760-50040i200809-200909
THAILAND SPEC
main89760-50040i200809-200909
THAILAND SPEC&SPARE TIRE-GROUND TIRE
main89760-50040i200809-200909
THAILAND SPEC&SPARE TIRE-TEMPER TIRE
main89760-50040i200809-200909
THAILAND SPEC&SPARE TIRE-W(FLAT TIRE REPAIR KIT),W/O SPAIR TIRE
main89760-50040i200809-200909
SINGAPORE SPEC
main89760-50040i200809-200909
SINGAPORE SPEC&SPARE TIRE-GROUND TIRE
main89760-50040i200809-200909
SINGAPORE SPEC&SPARE TIRE-TEMPER TIRE
main89760-50040i200809-200909
SINGAPORE SPEC&SPARE TIRE-W(FLAT TIRE REPAIR KIT),W/O SPAIR TIRE
main89760-50040i200809-200909
FORMOSA SPEC
main89760-50040i200809-200909
FORMOSA SPEC&SPARE TIRE-GROUND TIRE
main89760-50040i200809-200909
FORMOSA SPEC&SPARE TIRE-TEMPER TIRE
main89760-50040i200809-200909
FORMOSA SPEC&SPARE TIRE-W(FLAT TIRE REPAIR KIT),W/O SPAIR TIRE
main89760-50040i200809-200909
ISRAEL SPEC
main89760-50040i200809-200909
ISRAEL SPEC&SPARE TIRE-GROUND TIRE
main89760-50040i200909
THAILAND/INDONESIA SPEC
main89760-50040i200909
THAILAND/INDONESIA SPEC&SPARE TIRE-GROUND TIRE
main89760-50040i200909
KAZAKHSTAN SPEC&SPARE TIRE-GROUND TIRE
main89760-50040i200909
SINGAPOLE/BRUNEI SPEC
main89760-50040i200909
SINGAPOLE/BRUNEI SPEC&SPARE TIRE-GROUND TIRE
main89760-50040i200909
MOROCCO SPEC&SPARE TIRE-GROUND TIRE
main89760-50040i200909
PHILIPPINES SPEC&SPARE TIRE-GROUND TIRE
main89760-50070i200909-201001
FORMOSA SPEC
sub89760-50071
main89760-50071i201002
FORMOSA SPEC
89765ANTENNA, TIRE PRESSURE, FRONT RH
main89765-50010i200608-200909
89766ANTENNA, TIRE PRESSURE, FRONT LH
main89766-50010i200608-200909
89767ANTENNA, TIRE PRESSURE, REAR RH
main89767-50010i200608-200909
89793ANTENNA, TIRE PRESSURE ROOF
main89793-50010i200608-200909
9017906274
main90179-06274
9098901107
main90989-01107
91515F0620
main91515-F0620

9 parts on this diagram · 2 diagrams in section
