WIRELESS DOOR LOCK

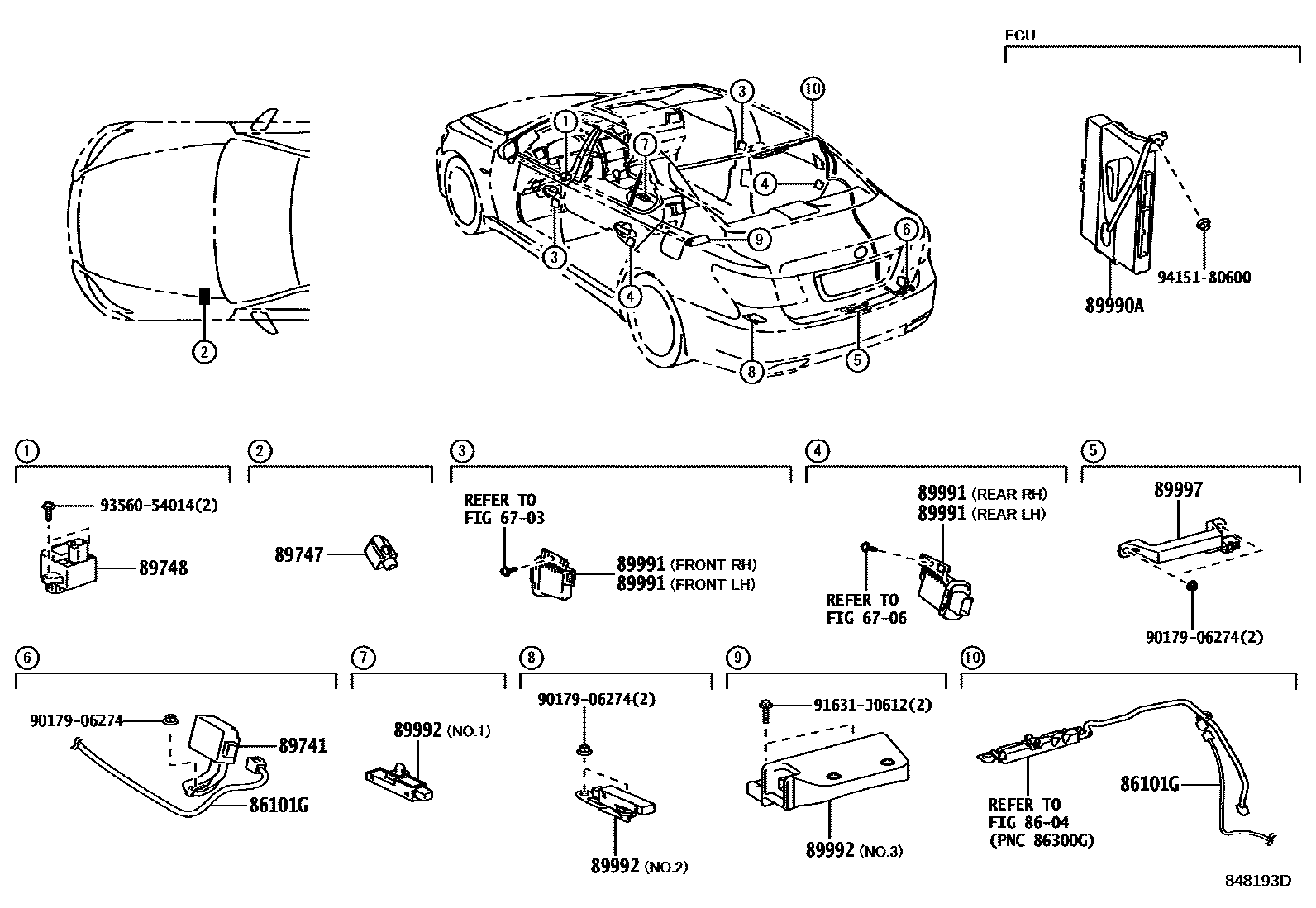

Parts diagram
6703
6706
8604
86101GCORD SUB-ASSY, ANTENNA
main86101-50620i200608-201209
89741RECEIVER, DOOR CONTROL
main89740-50090i200608-200704
sub89740-50091
main89740-50091i200705-200909
main89740-50110i200612-200707
sub89740-50111
main89740-50111i200708-200909
PHILIPPINES SPEC
sub89740-50112
main89740-50111i200708-200809
PHILIPPINES SPEC&ELECTRICAL KEY(2) + CARD TYPE(1)
sub89740-50112
main89740-50111i200708-200909
THAILAND SPEC
sub89740-50112
main89740-50111i200708-200809
THAILAND SPEC&ELECTRICAL KEY(2) + CARD TYPE(1)
sub89740-50112
main89740-50111i200708-200909
SINGAPORE SPEC
sub89740-50112
main89740-50111i200708-200809
SINGAPORE SPEC&ELECTRICAL KEY(2) + CARD TYPE(1)
sub89740-50112
main89740-50111i200809-200909
PHILIPPINES SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
sub89740-50112
main89740-50111i200809-200909
THAILAND SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
sub89740-50112
main89740-50111i200809-200909
SINGAPORE SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)
sub89740-50112
main89740-50190i200909-201108
sub89740-50191
main89740-50191i201109
sub89740-50192
89747BUZZER, WIRELESS DOOR LOCK
main89747-52010i200608-200909
89748CONTROLLER, WIRELESS DOOR LOCK BUZZER
main89748-50010i200608-201209
89990ACOMPUTER ASSY, SMART KEY
main89990-50020i200608-200612
sub89990-50021
main89990-50021i200701-200709
sub89990-50022
main89990-50022i200710-200809
sub89990-50023
main89990-50040i200608-200701
sub89990-50041
main89990-50041i200701-200809
sub89990-50042
main89990-50100i200809-200909
sub89990-50101
main89990-50120i200809-200909
sub89990-50121
main89990-50130i200909-201008
sub89990-50131
main89990-50131i201009-201106
sub89990-50132
main89990-50132i201107
sub89990-50133
main89990-50150i200909-201008
sub89990-50151
main89990-50151i201009-201106
sub89990-50152
main89990-50152i201107-201109
sub89990-50153
main89990-50170i200909-201008
sub89990-50171
main89990-50171i201009
main89990-50190i201109
sub89990-50191
89991OSCILLATOR, DOOR ELECTRICAL KEY
main89991-33010i200608-201209
FRONT-RH,REAR-LH
main89991-33020i200608-201209
FRONT-LH,REAR-RH
89992OSCILLATOR, INDOOR ELECTRICAL KEY
main89992-30090i200608-200909
NO.1
main89992-50100i200608-201111
NO.3
sub89992-50101
main89992-50101i201112
NO.3
main89992-50110i200809-201102
NO.2
sub89992-50111
main89992-50111i201103
NO.2
main89992-53010i200608-200809
NO.2
89997ANTENNA, ELECTRICAL KEY
main89997-30070i201108-201209
main89997-41010i200608-201108
9017906274
main90179-06274
91631J0612
main91631-J0612
9356054014
main93560-54014
9415180600
main94151-80600

15 parts on this diagram · 2 diagrams in section
