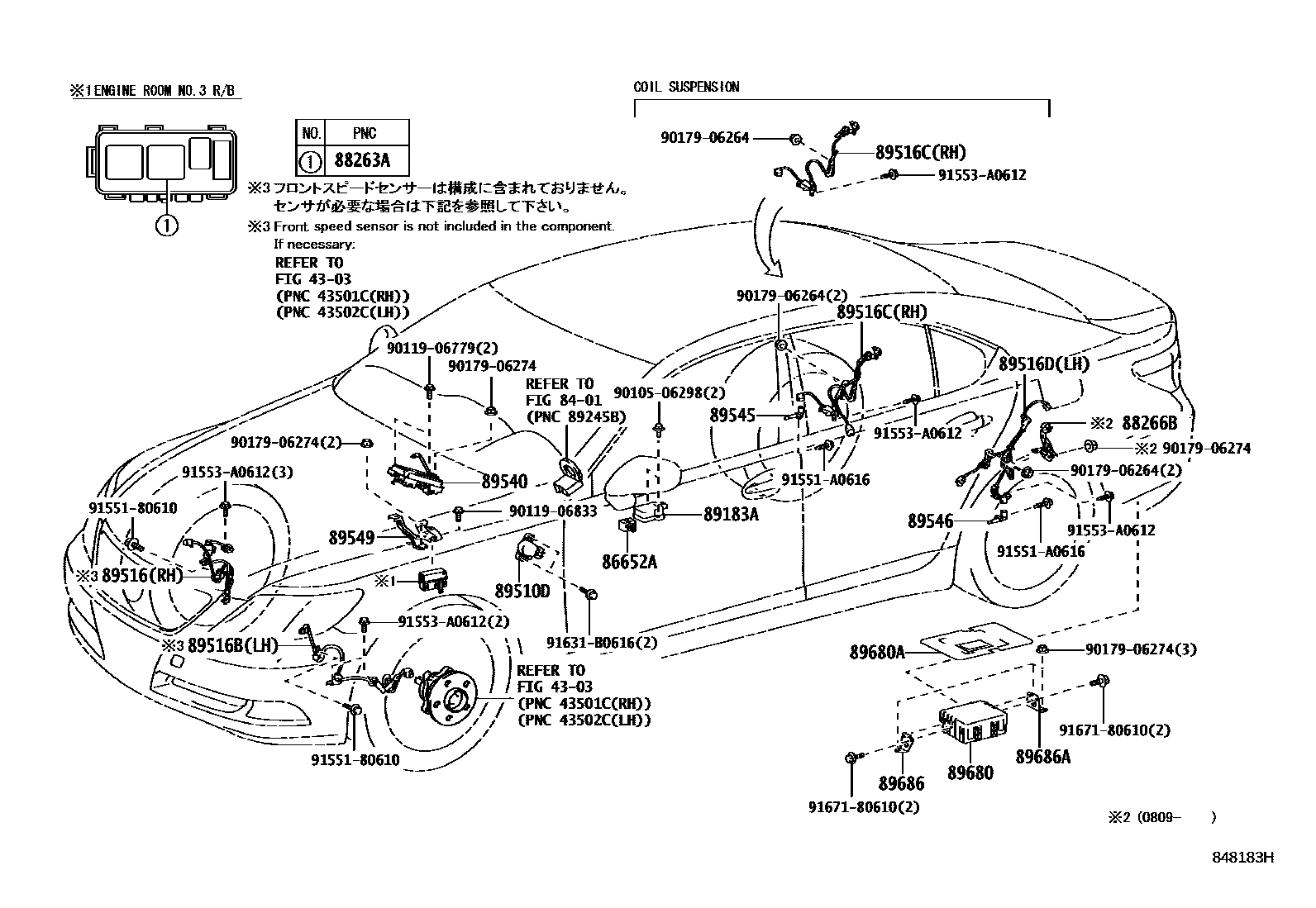

ABS & VSC
4303
8401
86652ABUZZER ASSY, SKID CONTROL
88263ARELAY, SKID CONTROL
88266BCLAMP, SKID CONTROL SENSOR, NO.1
89183ASENSOR, YAWRATE
ANTI-THEFT SYSTEM-WITH(SIREN)
ANTI-THEFT SYSTEM-WITH(SIREN)&SUSPENSION-COIL SPRING
ANTI-THEFT SYSTEM-WITH
ANTI-THEFT SYSTEM-WITH(SIREN)&WITH(ELECTRIC POWER STEERING)&SUSPENSION-COIL SPRING
ANTI-THEFT SYSTEM-WITH(SIREN)
ANTI-THEFT SYSTEM-WITH(SIREN)&WITH(ELECTRIC POWER STEERING)&SUSPENSION-COIL SPRING
ANTI-THEFT SYSTEM-WITH
ANTI-THEFT SYSTEM-WITH&SUSPENSION-COIL SPRING
ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)
ANTI-THEFT SYSTEM-WITH(SENSOR+TILT)&WITH(EPS & VGRS)&SUSPENSION-SPORT AIR SUSPENTION
89510DSENSOR ASSY, BRAKE PEDAL STROKE
89516BWIRE, SKID CONTROL SENSOR
89516CWIRE, SKID CONTROL SENSOR, RH
ISRAEL SPEC
SUSPENSION-COIL SPRING
RUSSIA SPEC
HONG KONG SPEC
FORMOSA SPEC
SUSPENSION-SPORT AIR SUSPENTION
SUSPENSION-COIL SPRING
89516DWIRE, SKID CONTROL SENSOR, LH
89540COMPUTER ASSY, SKID CONTROL
NEW ZEALAND SPEC
AUSTRALIA SPEC
SOUTH AFRICA SPEC
THAILAND SPEC
ISRAEL SPEC
RUSSIA SPEC
ISRAEL SPEC
FORMOSA SPEC
RUSSIA SPEC
sub89540-50351
NEW ZEALAND SPEC
AUSTRALIA SPEC
HONG KONG SPEC
SOUTH AFRICA SPEC
THAILAND SPEC
SINGAPORE SPEC
sub89540-50381
RUSSIA SPEC
sub89540-50471
sub89540-50491
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
89549BRACKET, SKID CONTROL COMPUTER
89680SUPPLY ASSY, BRAKE CONTROL POWER
89680ACOVER, BRAKE CONTROL POWER SUPPLY
89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1
89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1
9010506298
main90105-06298
9011906779
main90119-06779
9011906833
main90119-06833
9017906264
main90179-06264
9017906274
main90179-06274
9155180610
main91551-80610
91551A0616
main91551-A0616
91553A0612
main91553-A0612
91631B0616
main91631-B0616
9167180610
main91671-80610
29 parts on this diagram · 8 diagrams in section
