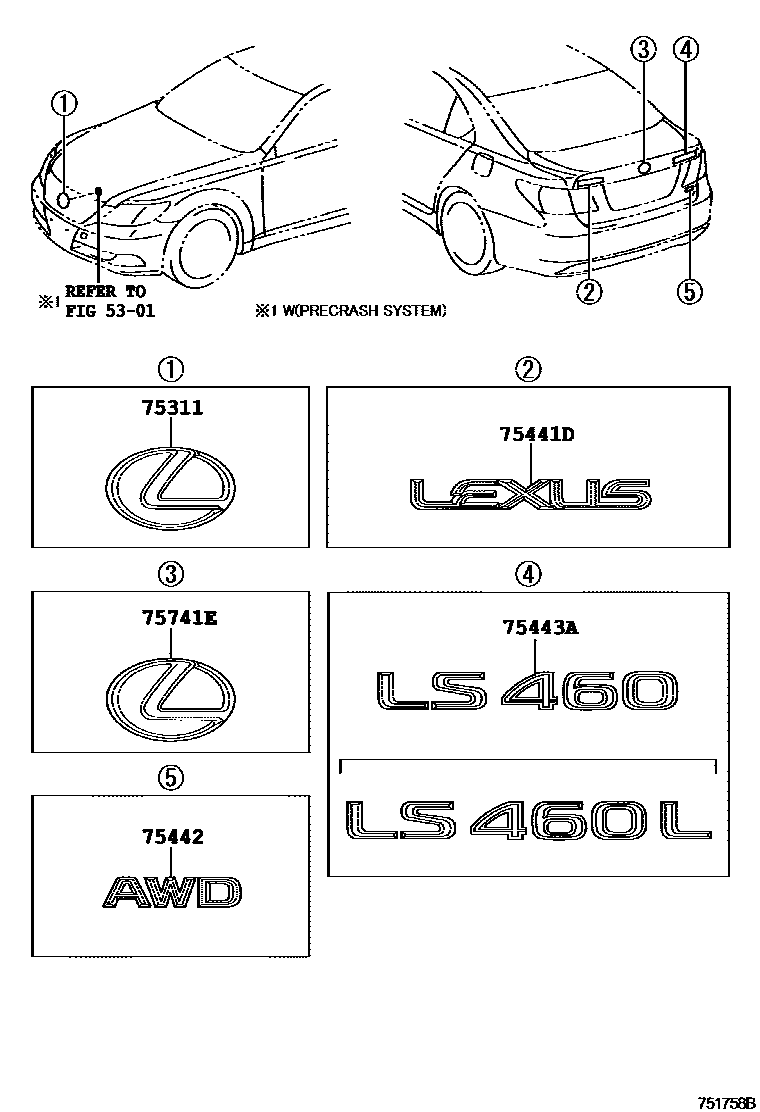

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main90975-02082iUSF4#200608-201209

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-50100iUSF4#200608-201209

LEXUS

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-50020iUSF45,46200809-200909

AWD

sub75442-50030

main75442-50040iUSF45,46200909-201209

AWD

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-50010iUSF40200608-201209

LS 460

main75443-50020iUSF41,46200608-201209

LS 460L

75741EEMBLEM, SYMBOL

main90975-02084iUSF4#200608-201209

sub90975-02212

5 parts on this diagram · 2 diagrams in section
