EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

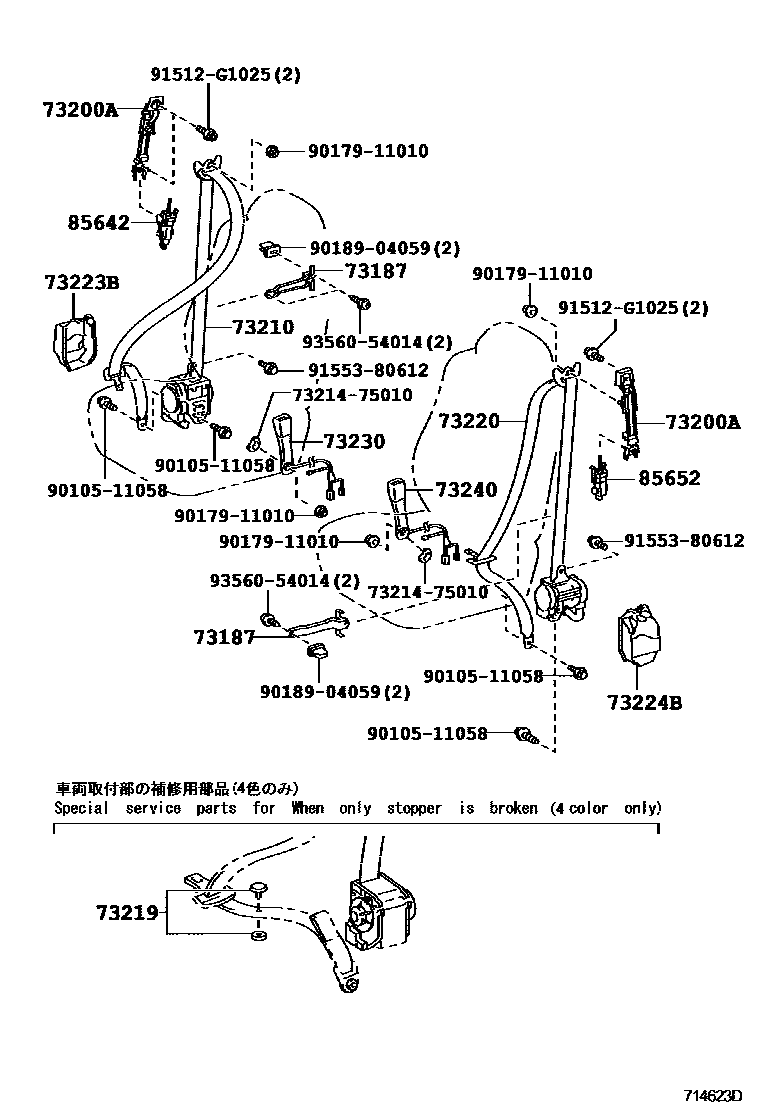

Parts diagram
73187GUIDE, FRONT SEAT SHOULDER BELT
main73187-50010i200608-200909
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-50090i200608-200909
sub73200-50091
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-50300-A0i200608-200809
IVORY,TRIM00
sub73210-50370
main73210-50300-A1i200608-200809
MELLOW WHITE,TRIM01
sub73210-50370
main73210-50300-B0i200608-200809
LT.GRAY,TRIM1#
sub73210-50370
main73210-50300-C0i200608-200809
BLACK,TRIM2#
sub73210-50370
main73210-50330-A0i200612-200809
IVORY,TRIM00
sub73210-50440
main73210-50330-A1i200612-200809
MELLOW WHITE,TRIM01
sub73210-50440
main73210-50330-B0i200612-200809
LT.GRAY,TRIM1#
sub73210-50440
main73210-50330-C0i200612-200809
BLACK,TRIM2#
sub73210-50440
main73210-50370-A0i200809-200909
IVORY,TRIM00
sub73210-50371
main73210-50370-A1i200809-200909
MELLOW WHITE,TRIM01
sub73210-50371
main73210-50370-A1i200909-201108
MELLOW WHITE,TRIM01,07
sub73210-50371
main73210-50370-A2i200909-201108
IVORY,TRIM00,06
sub73210-50371
main73210-50370-B0i200809-200909
LT.GRAY,TRIM1#
sub73210-50371
main73210-50370-B1i200909-201108
LT.GRAY/GRAY,TRIM1#
sub73210-50371
main73210-50370-B2i200909-201108
LT.GRAY/BLACK,TRIM2#
sub73210-50371
main73210-50370-C0i200809-200909
BLACK,TRIM2#
sub73210-50371
main73210-50371-A1i201108-201209
MELLOW WHITE,TRIM07
main73210-50371-A2i201108-201209
IVORY,TRIM00,06
main73210-50371-A2i201108-201209
IVORY,TRIM00
main73210-50371-B1i201108-201209
LT.GRAY/GRAY,TRIM1#
main73210-50371-B2i201108-201209
LT.GRAY/BLACK,TRIM2#
main73210-50440-A0i200809-200909
IVORY,TRIM00
sub73210-50441
main73210-50440-A1i201009-201108
MELLOW WHITE,TRIM07
sub73210-50441
main73210-50440-A1i200909-201108
MELLOW WHITE,TRIM01,07
sub73210-50441
main73210-50440-A1i200809-200909
MELLOW WHITE,TRIM01
sub73210-50441
main73210-50440-A2i200909-201108
IVORY,TRIM00,06
sub73210-50441
main73210-50440-A2i201009-201108
IVORY,TRIM00
sub73210-50441
main73210-50440-B0i200809-200909
LT.GRAY,TRIM1#
sub73210-50441
main73210-50440-B1i200909-201108
LT.GRAY,TRIM1#
sub73210-50441
main73210-50440-B2i200909-201108
LT.GRAY/BLACK,TRIM2#
sub73210-50441
main73210-50440-C0i200809-200909
BLACK,TRIM2#
sub73210-50441
main73210-50441-A1i201108-201209
MELLOW WHITE,TRIM07
sub73210-50560
main73210-50441-A2i201108-201209
IVORY,TRIM00
sub73210-50560
main73210-50441-B1i201108-201209
LT.GRAY,TRIM1#
sub73210-50560
main73210-50441-B2i201108-201209
LT.GRAY/BLACK,TRIM2#
sub73210-50560
73219STOPPER, TONGUE PLATE
main73219-33010i200909
BLACK
main73219-33020i200909
GRAY
main73219-33030i200909
BEIGE
main73219-50010i200909
MELLOW WHITE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-50280-A0i200608-200809
IVORY,TRIM00
sub73220-50330
main73220-50280-A1i200608-200809
MELLOW WHITE,TRIM01
sub73220-50330
main73220-50280-B0i200608-200809
LT.GRAY,TRIM1#
sub73220-50330
main73220-50280-C0i200608-200809
BLACK,TRIM2#
sub73220-50330
main73220-50300-A0i200612-200809
IVORY,TRIM00
sub73220-50400
main73220-50300-A1i200612-200809
MELLOW WHITE,TRIM01
sub73220-50400
main73220-50300-B0i200612-200809
LT.GRAY,TRIM1#
sub73220-50400
main73220-50300-C0i200612-200809
BLACK,TRIM2#
sub73220-50400
main73220-50330-A0i200809-200909
IVORY,TRIM00
sub73220-50331
main73220-50330-A1i200809-200909
MELLOW WHITE,TRIM01
sub73220-50331
main73220-50330-A1i200909-201108
MELLOW WHITE,TRIM01,07
sub73220-50331
main73220-50330-A2i200909-201108
IVORY,TRIM00,06
sub73220-50331
main73220-50330-B0i200809-200909
LT.GRAY,TRIM1#
sub73220-50331
main73220-50330-B1i200909-201108
LT.GRAY/GRAY,TRIM1#
sub73220-50331
main73220-50330-B2i200909-201108
LT.GRAY/BLACK,TRIM2#
sub73220-50331
main73220-50330-C0i200809-200909
BLACK,TRIM2#
sub73220-50331
main73220-50331-A1i201108-201209
MELLOW WHITE,TRIM07
main73220-50331-A2i201108-201209
IVORY,TRIM00,06
main73220-50331-A2i201108-201209
IVORY,TRIM00
main73220-50331-B1i201108-201209
LT.GRAY/GRAY,TRIM1#
main73220-50331-B2i201108-201209
LT.GRAY/BLACK,TRIM2#
main73220-50400-A0i200809-200909
IVORY,TRIM00
sub73220-50401
main73220-50400-A1i200809-200909
MELLOW WHITE,TRIM01
sub73220-50401
main73220-50400-A1i200909-201108
MELLOW WHITE,TRIM01,07
sub73220-50401
main73220-50400-A1i201009-201108
MELLOW WHITE,TRIM07
sub73220-50401
main73220-50400-A2i200909-201108
IVORY,TRIM00,06
sub73220-50401
main73220-50400-A2i201009-201108
IVORY,TRIM00
sub73220-50401
main73220-50400-B0i200809-200909
LT.GRAY,TRIM1#
sub73220-50401
main73220-50400-B1i200909-201108
LT.GRAY,TRIM1#
sub73220-50401
main73220-50400-B2i200909-201108
LT.GRAY/BLACK,TRIM2#
sub73220-50401
main73220-50400-C0i200809-200909
BLACK,TRIM2#
sub73220-50401
main73220-50401-A1i201108-201209
MELLOW WHITE,TRIM07
sub73220-50480
main73220-50401-A2i201108-201209
IVORY,TRIM00
sub73220-50480
main73220-50401-B1i201108-201209
LT.GRAY,TRIM1#
sub73220-50480
main73220-50401-B2i201108-201209
LT.GRAY/BLACK,TRIM2#
sub73220-50480
73223COVER, SEAT BELT RETRACTOR
main73223-50060i200608-200909
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
main73223-50050i200608-200909
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
main73224-50040i200608-200909
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-50121-A0i200608-200809
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),IVORY,TRIM00
sub73230-50121
main73230-50121-A0i200608-200909
IVORY,TRIM00
sub73230-50121
main73230-50121-A0i200608-200809
NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),IVORY,TRIM00
sub73230-50121
main73230-50121-A0i200608-200809
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),IVORY,TRIM00
sub73230-50121
main73230-50121-A0i200608-200809
THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),IVORY,TRIM00
sub73230-50121
main73230-50121-A0i200608-200809
PRE-COLLISION SYSTEM-WITH(*PSB & *PB),IVORY,TRIM00
sub73230-50121
main73230-50121-A1i200608-200809
PRE-COLLISION SYSTEM-WITH(*PSB & *PB),MELLOW WHITE,TRIM01
sub73230-50121
main73230-50121-A1i200608-200909
MELLOW WHITE,TRIM01
sub73230-50121
main73230-50121-A1i200608-200809
NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),MELLOW WHITE,TRIM01
sub73230-50121
main73230-50121-A1i200608-200809
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),MELLOW WHITE,TRIM01
sub73230-50121
main73230-50121-A1i200608-200809
THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),MELLOW WHITE,TRIM01
sub73230-50121
main73230-50121-A1i200608-200809
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),MELLOW WHITE,TRIM01
sub73230-50121
main73230-50121-A1i200909-201209
MELLOW WHITE,TRIM07
sub73230-50121
main73230-50121-A2i200909-201209
IVORY,TRIM00,06
sub73230-50121
main73230-50121-A2i200909-201209
IVORY,TRIM00
sub73230-50121
main73230-50121-B0i200608-200809
THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),LT.GRAY,TRIM1#
sub73230-50121
main73230-50121-B0i200608-200809
PRE-COLLISION SYSTEM-WITH(*PSB & *PB),LT.GRAY,TRIM1#
sub73230-50121
main73230-50121-B0i200608-200809
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),LT.GRAY,TRIM1#
sub73230-50121
main73230-50121-B0i200608-201209
LT.GRAY,TRIM1#
sub73230-50121
main73230-50121-B0i200608-200809
NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),LT.GRAY,TRIM1#
sub73230-50121
main73230-50121-B0i200608-200809
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),LT.GRAY,TRIM1#
sub73230-50121
main73230-50121-C0i200608-200809
NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),BLACK,TRIM2#
sub73230-50121
main73230-50121-C0i200608-200809
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),BLACK,TRIM2#
sub73230-50121
main73230-50121-C0i200608-200809
THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),BLACK,TRIM2#
sub73230-50121
main73230-50121-C0i200608-200809
PRE-COLLISION SYSTEM-WITH(*PSB & *PB),BLACK,TRIM2#
sub73230-50121
main73230-50121-C0i200608-200809
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),BLACK,TRIM2#
sub73230-50121
main73230-50121-C0i200608-201209
BLACK,TRIM2#
sub73230-50121
main73230-50131-A0i200608-200809
PRE-COLLISION SYSTEM-WITH(*PSB & *PB),IVORY,TRIM00
sub73230-50131
main73230-50131-A0i200608-200909
IVORY,TRIM00
sub73230-50131
main73230-50131-A0i200608-200809
BEIJING SPEC,IVORY,TRIM00
sub73230-50131
main73230-50131-A0i200608-200809
FORMOSA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),IVORY,TRIM00
sub73230-50131
main73230-50131-A0i200608-200809
CHINA(EXCEPT BEIJING) SPEC,IVORY,TRIM00
sub73230-50131
main73230-50131-A0i200608-200809
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),IVORY,TRIM00
sub73230-50131
main73230-50131-A1i200608-200809
PRE-COLLISION SYSTEM-WITH(*PSB & *PB),MELLOW WHITE,TRIM01
sub73230-50131
main73230-50131-A1i200608-200809
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),MELLOW WHITE,TRIM01
sub73230-50131
main73230-50131-A1i200608-200909
MELLOW WHITE,TRIM01
sub73230-50131
main73230-50131-A1i200608-200809
BEIJING SPEC,MELLOW WHITE,TRIM01
sub73230-50131
main73230-50131-A1i200608-200809
FORMOSA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),MELLOW WHITE,TRIM01
sub73230-50131
main73230-50131-A1i200608-200809
CHINA(EXCEPT BEIJING) SPEC,MELLOW WHITE,TRIM01
sub73230-50131
main73230-50131-A1i200909-201209
MELLOW WHITE,TRIM07
sub73230-50131
main73230-50131-A1i200909-201209
MELLOW WHITE,TRIM01,07
sub73230-50131
main73230-50131-A2i200909-201209
IVORY,TRIM00
sub73230-50131
main73230-50131-A2i200909-201209
IVORY,TRIM00,06
sub73230-50131
main73230-50131-B0i200608-200809
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),LT.GRAY,TRIM1#
sub73230-50131
main73230-50131-B0i200608-200809
BEIJING SPEC,LT.GRAY,TRIM1#
sub73230-50131
main73230-50131-B0i200608-201209
LT.GRAY,TRIM1#
sub73230-50131
main73230-50131-B0i200608-200809
PRE-COLLISION SYSTEM-WITH(*PSB & *PB),LT.GRAY,TRIM1#
sub73230-50131
main73230-50131-B0i200608-200809
CHINA(EXCEPT BEIJING) SPEC,LT.GRAY,TRIM1#
sub73230-50131
main73230-50131-B0i200608-200809
FORMOSA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),LT.GRAY,TRIM1#
sub73230-50131
main73230-50131-C0i200608-200809
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),BLACK,TRIM2#
sub73230-50131
main73230-50131-C0i200608-201209
BLACK,TRIM2#
sub73230-50131
main73230-50131-C0i200608-200809
BEIJING SPEC,BLACK,TRIM2#
sub73230-50131
main73230-50131-C0i200608-200809
FORMOSA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),BLACK,TRIM2#
sub73230-50131
main73230-50131-C0i200608-200809
CHINA(EXCEPT BEIJING) SPEC,BLACK,TRIM2#
sub73230-50131
main73230-50131-C0i200608-200809
PRE-COLLISION SYSTEM-WITH(*PSB & *PB),BLACK,TRIM2#
sub73230-50131
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-50121-A0i200608-200809
CHINA(EXCEPT BEIJING) SPEC,IVORY,TRIM00
sub73230-50121
main73230-50121-A0i200608-200909
IVORY,TRIM00
sub73230-50121
main73230-50121-A0i200608-200809
BEIJING SPEC,IVORY,TRIM00
sub73230-50121
main73230-50121-A0i200608-200809
FORMOSA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),IVORY,TRIM00
sub73230-50121
main73230-50121-A0i200608-200809
PRE-COLLISION SYSTEM-WITH(*PSB & *PB),IVORY,TRIM00
sub73230-50121
main73230-50121-A0i200608-200809
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),IVORY,TRIM00
sub73230-50121
main73230-50121-A1i200608-200809
BEIJING SPEC,MELLOW WHITE,TRIM01
sub73230-50121
main73230-50121-A1i200608-200809
FORMOSA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),MELLOW WHITE,TRIM01
sub73230-50121
main73230-50121-A1i200608-200809
CHINA(EXCEPT BEIJING) SPEC,MELLOW WHITE,TRIM01
sub73230-50121
main73230-50121-A1i200608-200809
PRE-COLLISION SYSTEM-WITH(*PSB & *PB),MELLOW WHITE,TRIM01
sub73230-50121
main73230-50121-A1i200608-200809
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),MELLOW WHITE,TRIM01
sub73230-50121
main73230-50121-A1i200608-200909
MELLOW WHITE,TRIM01
sub73230-50121
main73230-50121-A1i200909-201209
MELLOW WHITE,TRIM01,07
sub73230-50121
main73230-50121-A1i200909-201209
MELLOW WHITE,TRIM07
sub73230-50121
main73230-50121-A2i200909-201209
IVORY,TRIM00,06
sub73230-50121
main73230-50121-A2i200909-201209
IVORY,TRIM00
sub73230-50121
main73230-50121-B0i200608-200809
FORMOSA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),LT.GRAY,TRIM1#
sub73230-50121
main73230-50121-B0i200608-201209
LT.GRAY,TRIM1#
sub73230-50121
main73230-50121-B0i200608-200809
BEIJING SPEC,LT.GRAY,TRIM1#
sub73230-50121
main73230-50121-B0i200608-200809
CHINA(EXCEPT BEIJING) SPEC,LT.GRAY,TRIM1#
sub73230-50121
main73230-50121-B0i200608-200809
PRE-COLLISION SYSTEM-WITH(*PSB & *PB),LT.GRAY,TRIM1#
sub73230-50121
main73230-50121-B0i200608-200809
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),LT.GRAY,TRIM1#
sub73230-50121
main73230-50121-C0i200608-200809
FORMOSA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),BLACK,TRIM2#
sub73230-50121
main73230-50121-C0i200608-200809
CHINA(EXCEPT BEIJING) SPEC,BLACK,TRIM2#
sub73230-50121
main73230-50121-C0i200608-200809
PRE-COLLISION SYSTEM-WITH(*PSB & *PB),BLACK,TRIM2#
sub73230-50121
main73230-50121-C0i200608-200809
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),BLACK,TRIM2#
sub73230-50121
main73230-50121-C0i200608-201209
BLACK,TRIM2#
sub73230-50121
main73230-50121-C0i200608-200809
BEIJING SPEC,BLACK,TRIM2#
sub73230-50121
main73230-50131-A0i200608-200809
PRE-COLLISION SYSTEM-WITH(*PSB & *PB),IVORY,TRIM00
sub73230-50131
main73230-50131-A0i200608-200809
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),IVORY,TRIM00
sub73230-50131
main73230-50131-A0i200608-200909
IVORY,TRIM00
sub73230-50131
main73230-50131-A0i200608-200809
NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),IVORY,TRIM00
sub73230-50131
main73230-50131-A0i200608-200809
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),IVORY,TRIM00
sub73230-50131
main73230-50131-A0i200608-200809
THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),IVORY,TRIM00
sub73230-50131
main73230-50131-A1i200608-200809
PRE-COLLISION SYSTEM-WITH(*PSB & *PB),MELLOW WHITE,TRIM01
sub73230-50131
main73230-50131-A1i200608-200909
MELLOW WHITE,TRIM01
sub73230-50131
main73230-50131-A1i200608-200809
NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),MELLOW WHITE,TRIM01
sub73230-50131
main73230-50131-A1i200608-200809
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),MELLOW WHITE,TRIM01
sub73230-50131
main73230-50131-A1i200608-200809
THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),MELLOW WHITE,TRIM01
sub73230-50131
main73230-50131-A1i200608-200809
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),MELLOW WHITE,TRIM01
sub73230-50131
main73230-50131-A1i200909-201209
MELLOW WHITE,TRIM07
sub73230-50131
main73230-50131-A2i200909-201209
IVORY,TRIM00,06
sub73230-50131
main73230-50131-A2i200909-201209
IVORY,TRIM00
sub73230-50131
main73230-50131-B0i200608-200809
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),LT.GRAY,TRIM1#
sub73230-50131
main73230-50131-B0i200608-201209
LT.GRAY,TRIM1#
sub73230-50131
main73230-50131-B0i200608-200809
NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),LT.GRAY,TRIM1#
sub73230-50131
main73230-50131-B0i200608-200809
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),LT.GRAY,TRIM1#
sub73230-50131
main73230-50131-B0i200608-200809
THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),LT.GRAY,TRIM1#
sub73230-50131
main73230-50131-B0i200608-200809
PRE-COLLISION SYSTEM-WITH(*PSB & *PB),LT.GRAY,TRIM1#
sub73230-50131
main73230-50131-C0i200608-200809
THAILAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),BLACK,TRIM2#
sub73230-50131
main73230-50131-C0i200608-200809
AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),BLACK,TRIM2#
sub73230-50131
main73230-50131-C0i200608-200809
NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB),BLACK,TRIM2#
sub73230-50131
main73230-50131-C0i200608-201209
BLACK,TRIM2#
sub73230-50131
main73230-50131-C0i200608-200809
PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB),BLACK,TRIM2#
sub73230-50131
main73230-50131-C0i200608-200809
PRE-COLLISION SYSTEM-WITH(*PSB & *PB),BLACK,TRIM2#
sub73230-50131
85642MOTOR, HEIGHT ADJUSTABLE ANCHOR, RH
main85642-50040i200608-200909
main85642-50050i200608-200809
85652MOTOR, HEIGHT ADJUSTABLE ANCHOR, LH
main85642-50040i200608-200909
main85642-50050i200608-200809
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010511058
main90105-11058
9017911010
main90179-11010
9018904059
main90189-04059
91512G1025
main91512-G1025
9155380612
main91553-80612
9356054014
main93560-54014

19 parts on this diagram · 4 diagrams in section

SEAT BELT & CHILD RESTRAINT SEAT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
