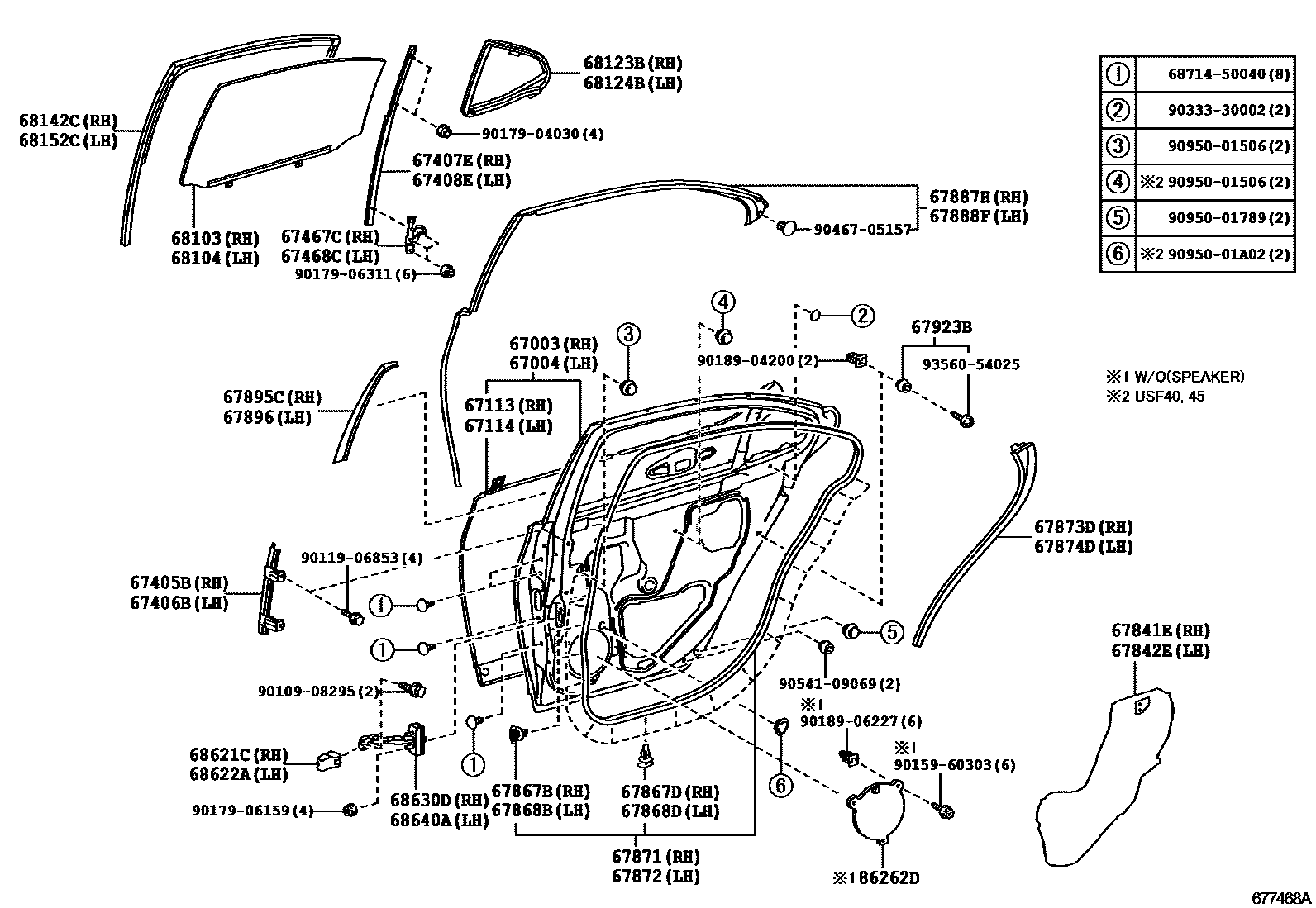

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67467CBRACKET, REAR DOOR DIVISION BAR, LOWER RH
67468CBRACKET, REAR DOOR DIVISION BAR, LWR LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
VERSION U OR U I PACKAGE OR KOREA SPEC
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)
WITH(REAR COOLER)
67842ECOVER, REAR DOOR SERVICE HOLE, LH
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
VERSION U OR U I PACKAGE OR KOREA SPEC
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)
WITH(REAR COOLER)
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67873DWEATHERSTRIP, ACCESS PANEL, REAR RH
67874DWEATHERSTRIP, ACCESS PANEL, REAR LH
67887HWEATHERSTRIP, REAR DOOR, NO.2 RH
67888FWEATHERSTRIP, REAR DOOR, NO.2 LH
67895CWEATHERSTRIP, REAR DOOR, NO.3 RH
67896WEATHERSTRIP, REAR DOOR, NO.3 LH
67923BCUSHION, REAR DOOR STIFFENER, NO.1
68103GLASS SUB-ASSY, REAR DOOR, RH
*IRCL,T=5.1,GREEN
*IRCL,T=5.1,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*IRCL,T=5.1,GREEN
*IRCL,T=5.1,GREEN
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*IRCL,T=4.7,GREEN
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*IRCL,T=4.7,GREEN
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68621CCOVER, REAR DOOR CHECK, RH
68622ACOVER, REAR DOOR CHECK, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
86262DCOVER, REAR DOOR SPEAKER
6871450040
9010908295
9011906853
9015960303
9017904030
9017906159
9017906311
9018904200
9018906227
9033330002
9046705157
9054109069
9095001506
9095001789
9095001A02
9356054025
52 parts on this diagram · 2 diagrams in section
