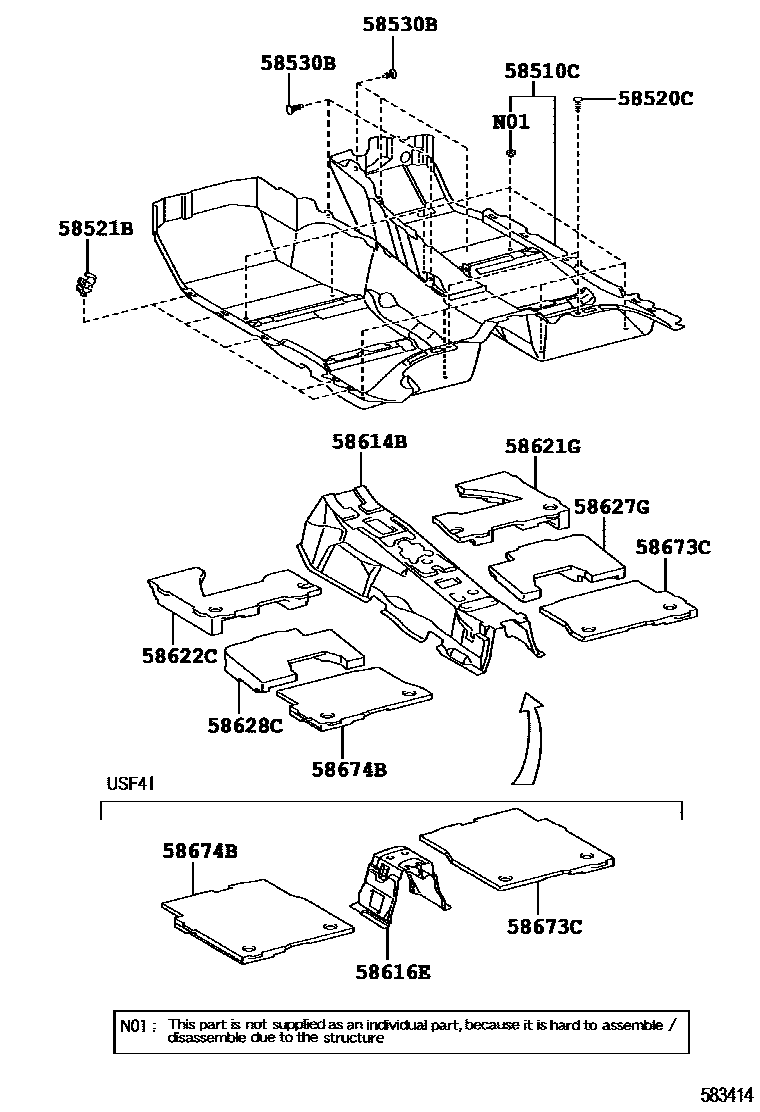

MAT & CARPET
58510CCARPET ASSY, FRONT FLOOR, FRONT
IVORY,TRIM00
MELLOW WHITE,TRIM07
MELLOW WHITE,TRIM01
IVORY,TRIM00,06
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM00
MELLOW WHITE,TRIM01
MELLOW WHITE,TRIM07
IVORY,TRIM00
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM00
MELLOW WHITE,TRIM07
MELLOW WHITE,TRIM01
IVORY,TRIM00
LT.GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM00
MELLOW WHITE,TRIM07
MELLOW WHITE,TRIM01
IVORY,TRIM00
LT.GRAY,TRIM1#
BLACK,TRIM2#
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
CHINA(EXCEPT BEIJING) SPEC&REAR ARMREST-WITH(OTTOMAN & ACC SOCKET)&REAR SEAT ADJUSTER-W(OTTOMAN)
BEIJING SPEC&WITH(REAR COOLER)
BEIJING SPEC&REAR ARMREST-WITH(WITHOUT/TRUNK THROW)
BEIJING SPEC&REAR ARMREST-WITH(OTTOMAN & ACC SOCKET)&REAR SEAT ADJUSTER-W(OTTOMAN)
BEIJING SPEC&REAR ARMREST-W(OTTOMAN & CIGARETTE LIGHTER)&REAR SEAT ADJUSTER-W(OTTOMAN)
CHINA(EXCEPT BEIJING) SPEC&WITH(REAR COOLER)
CHINA(EXCEPT BEIJING) SPEC&REAR ARMREST-WITH(WITHOUT/TRUNK THROW)
CHINA(EXCEPT BEIJING) SPEC&REAR ARMREST-W(OTTOMAN & CIGARETTE LIGHTER)&REAR SEAT ADJUSTER-W(OTTOMAN)
58530BCLIP(FOR FRONT FLOOR CARPET)
58614BSHEET, CENTER FLOOR SILENCER
58616ESHEET, CENTER FLOOR SILENCER, CENTER
58621GPAD, FRONT FLOOR SILENCER, RH
58622CPAD, FRONT FLOOR SILENCER, LH
58627GPAD, CENTER FLOOR SILENCER, REAR RH
58628CPAD, CENTER FLOOR SILENCER, REAR LH
58673CPAD, REAR FLOOR SILENCER, NO.1
58674BPAD, REAR FLOOR SILENCER, NO.2
12 parts on this diagram · 2 diagrams in section
